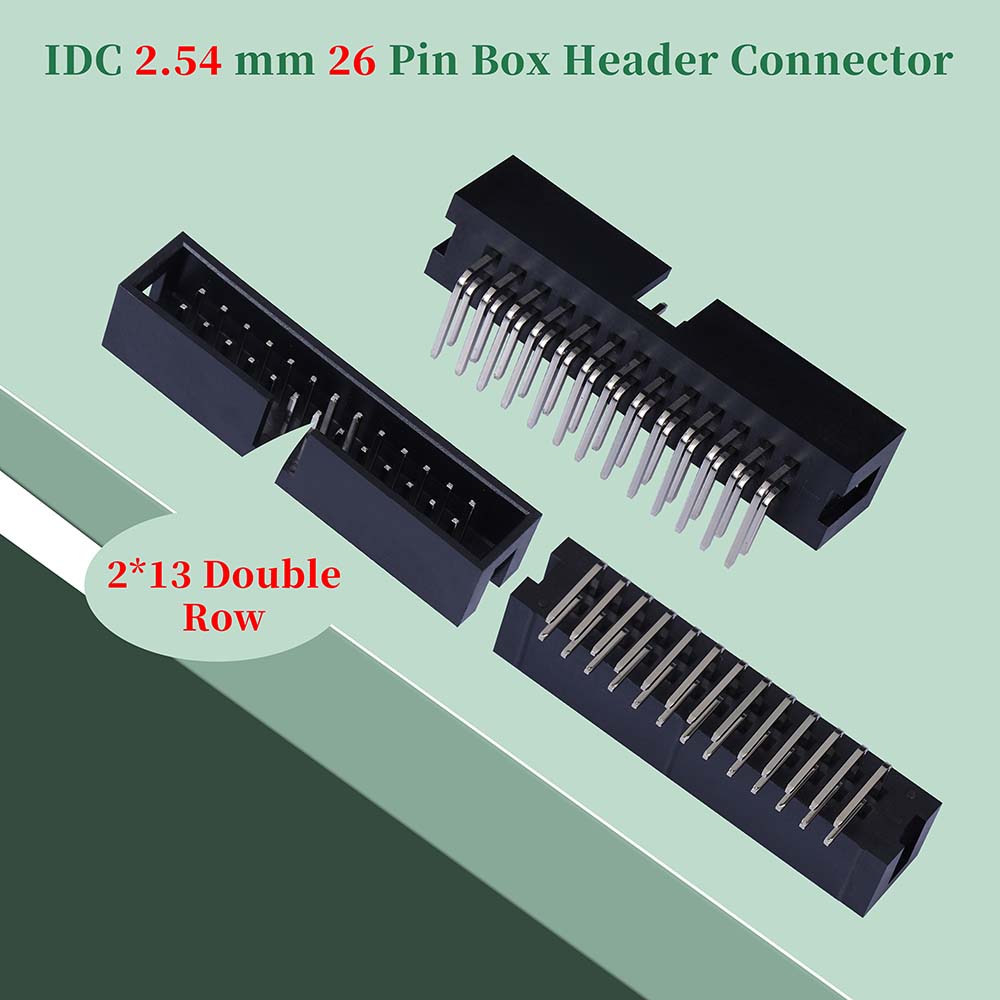

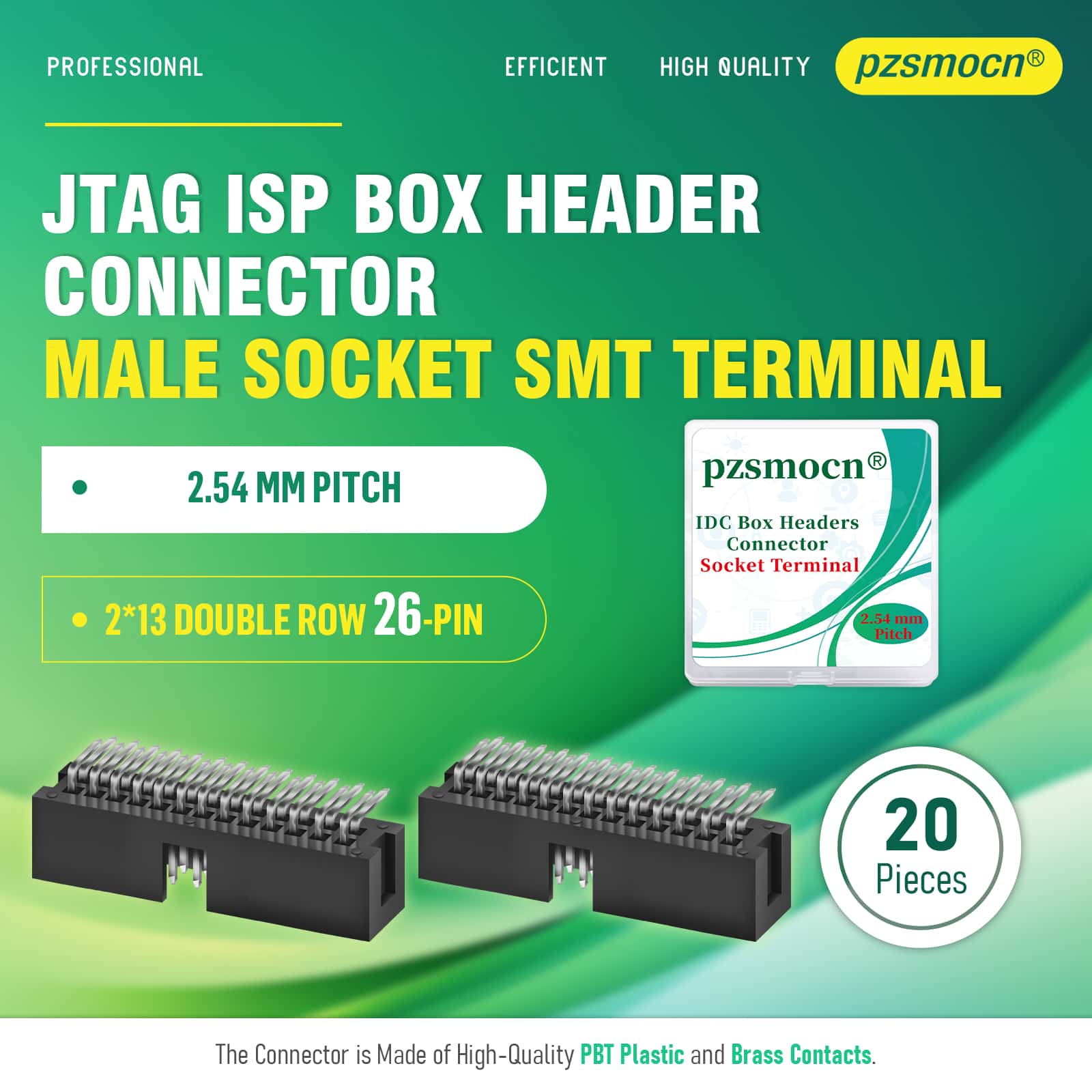

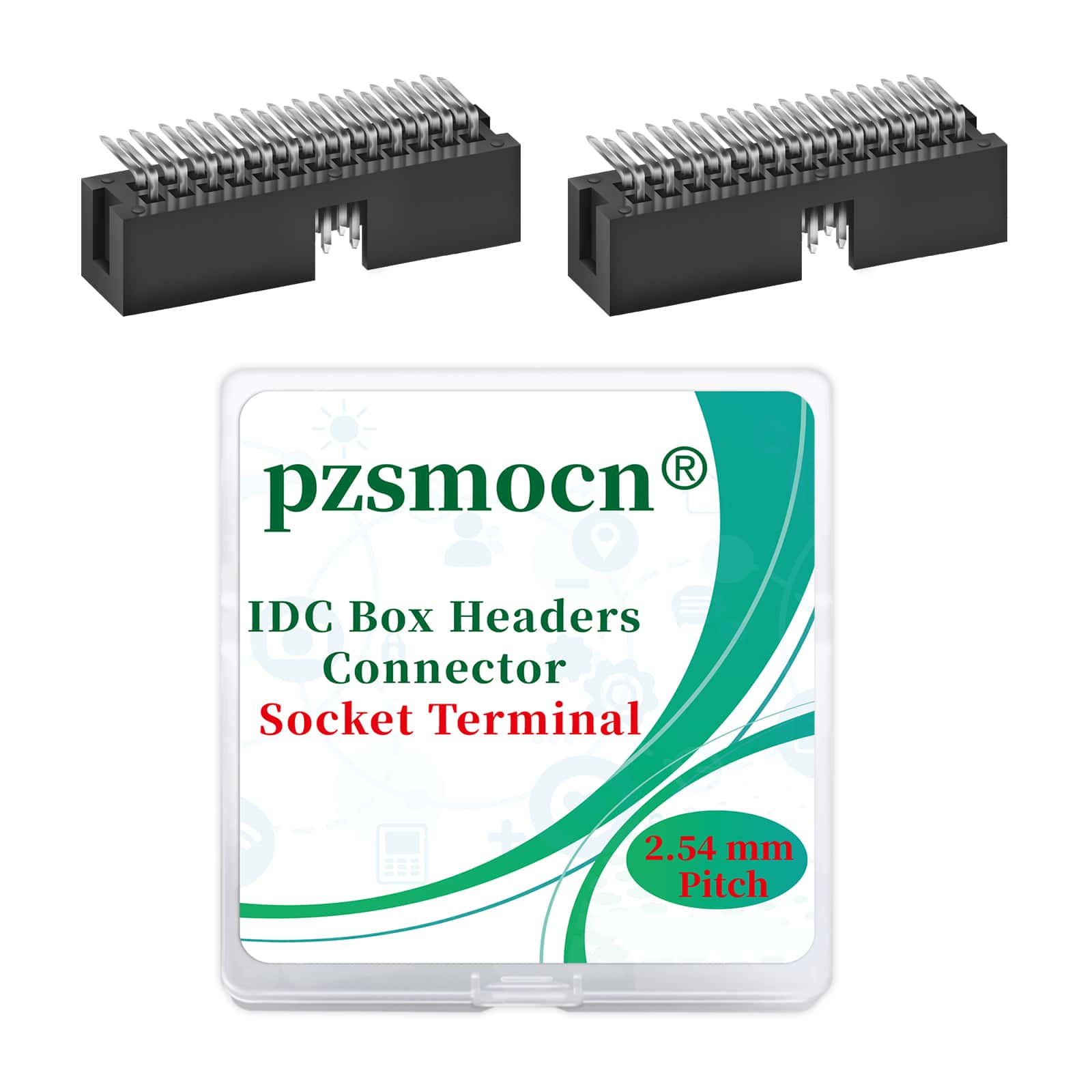

IDC Box Header Connector 2.54 mm 2*13 Double Row 26 Pin
5
.59
10+
5
.31
Save 5%
50+
5
.09
Save 9%
100+
4
.92
Save 12%
200+
4
.75
Save 15%
500+
4
.47
Save 20%
Product details

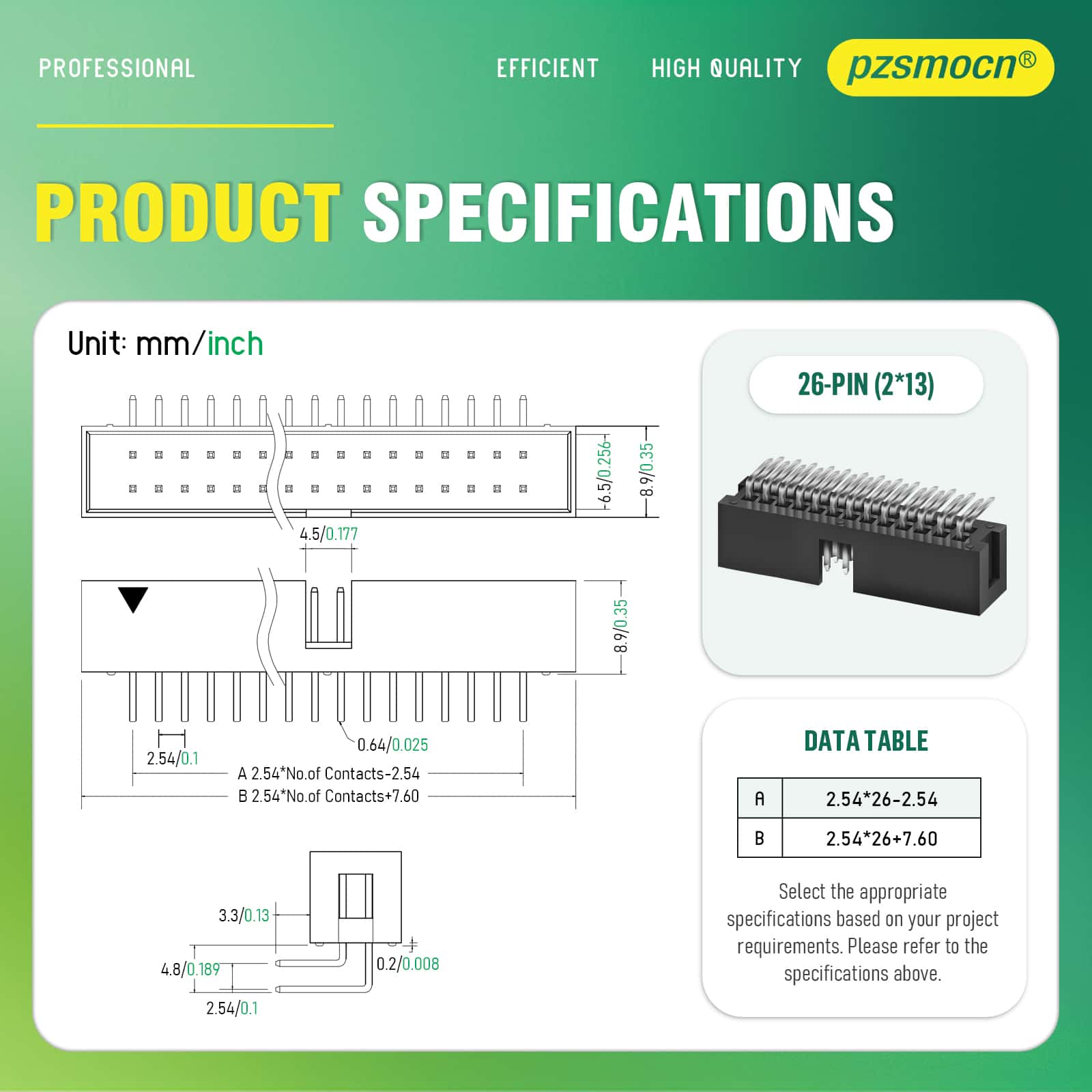

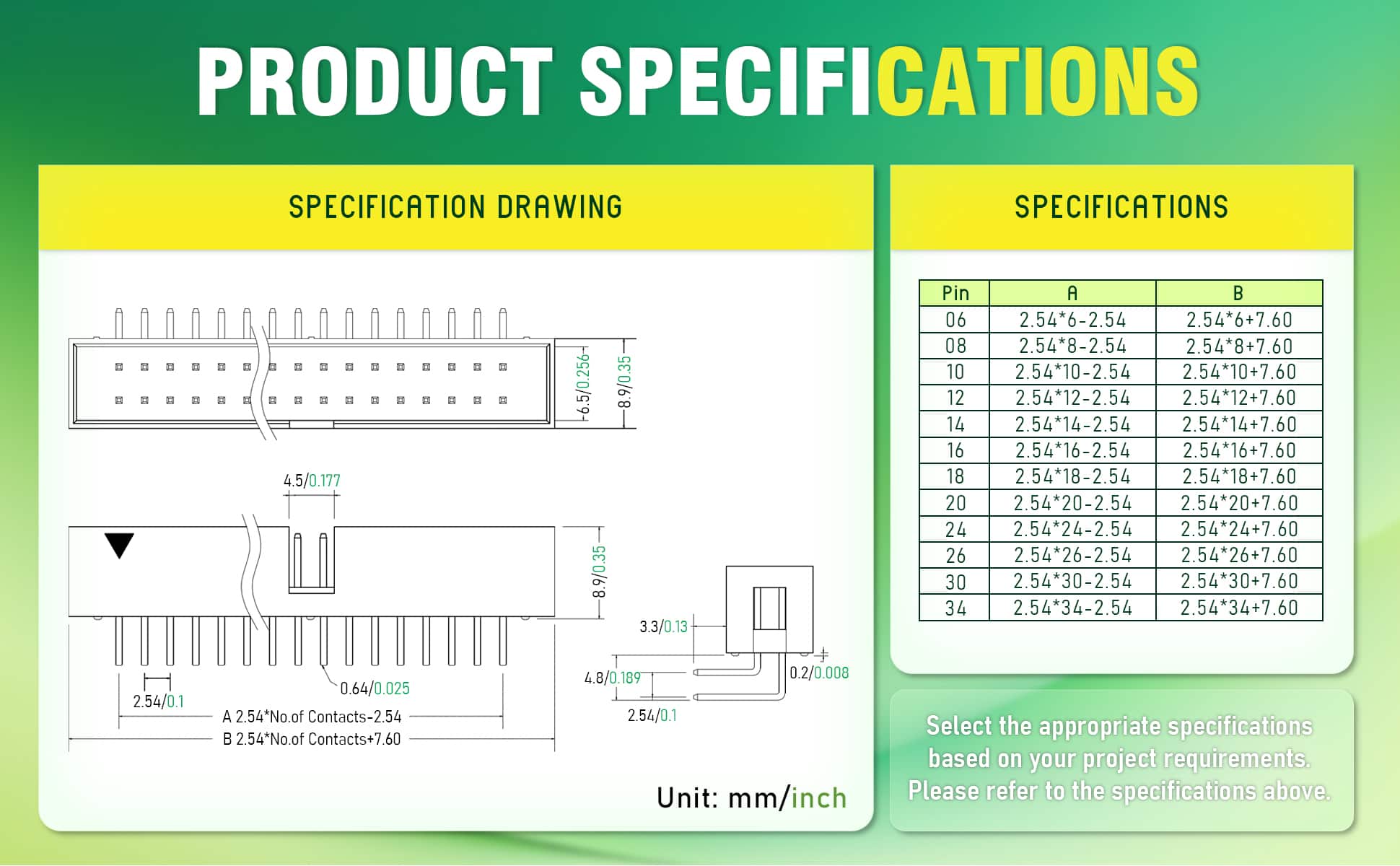

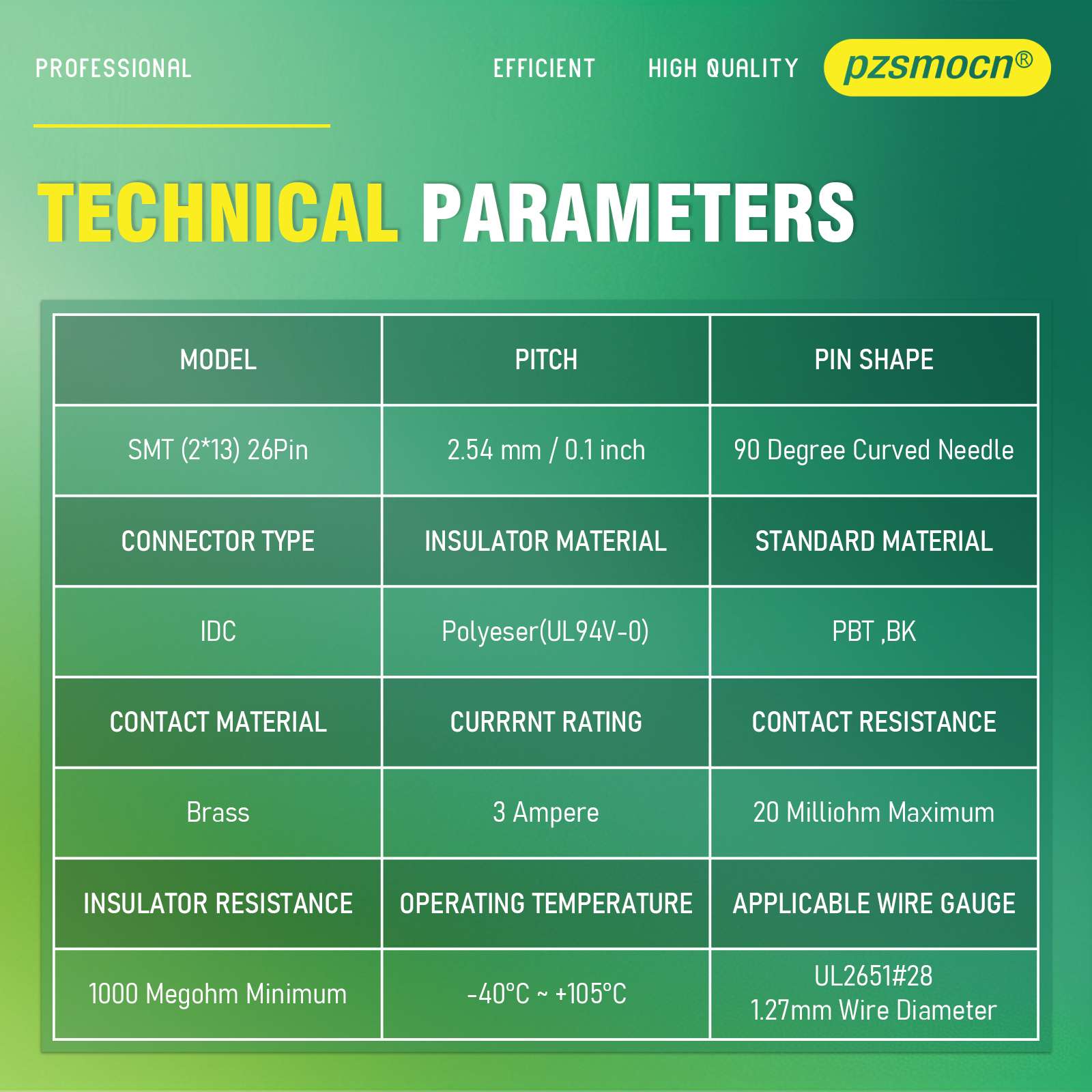

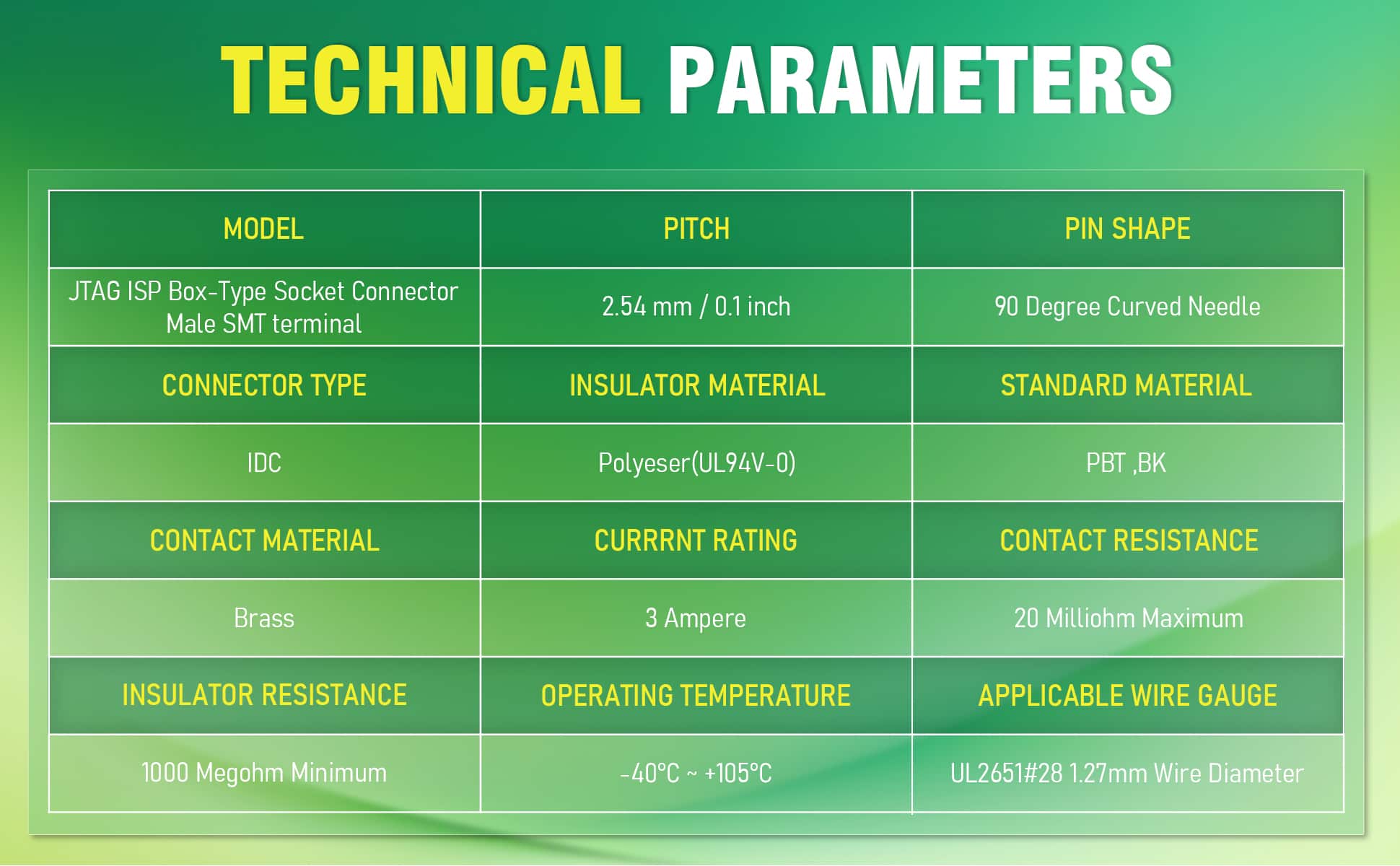

SPECIFICATION

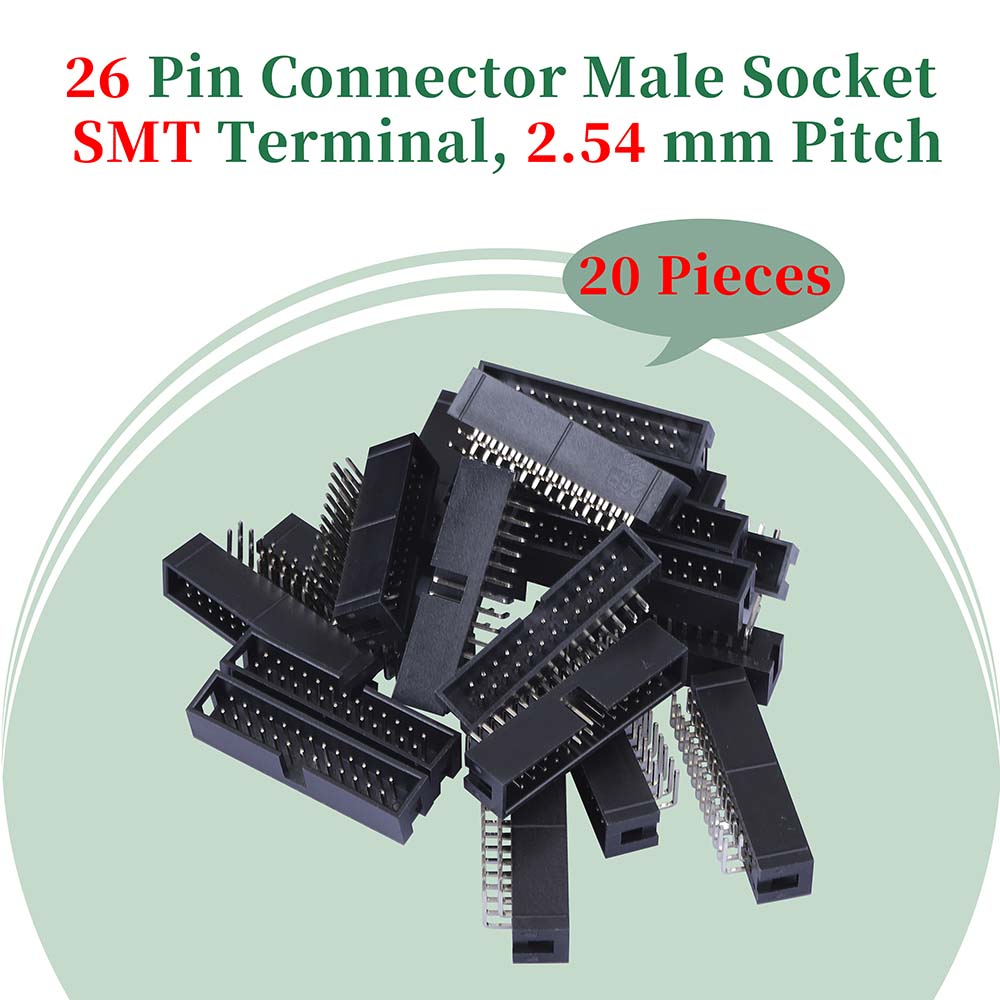

- Model: IDC 2 * 13 Pin Male Socket SMT Terminal
- Pitch: 2.54 mm / 0.1 inch

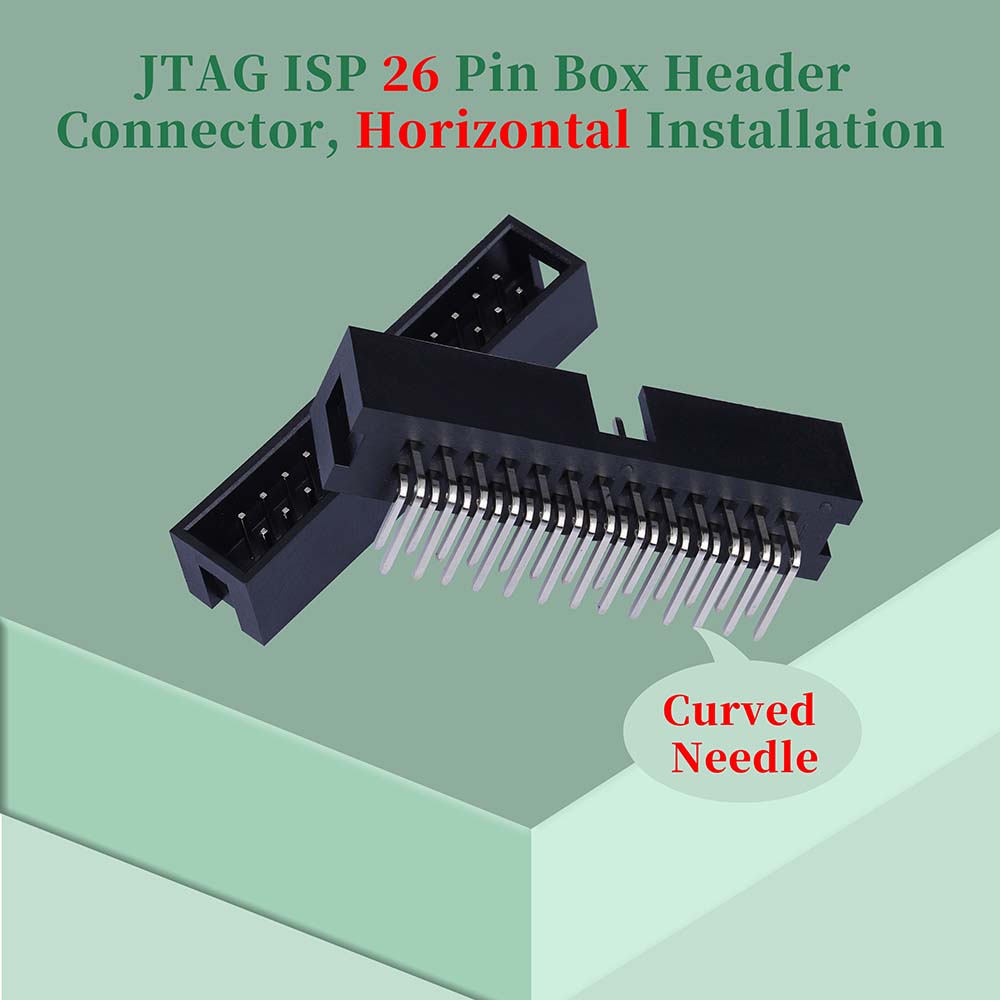

- Pin Shape: 90 degree curved needle
- Row Type: Double row
- Connector Type: IDC
- Insulator Material: Polyeser(UL94V-0)

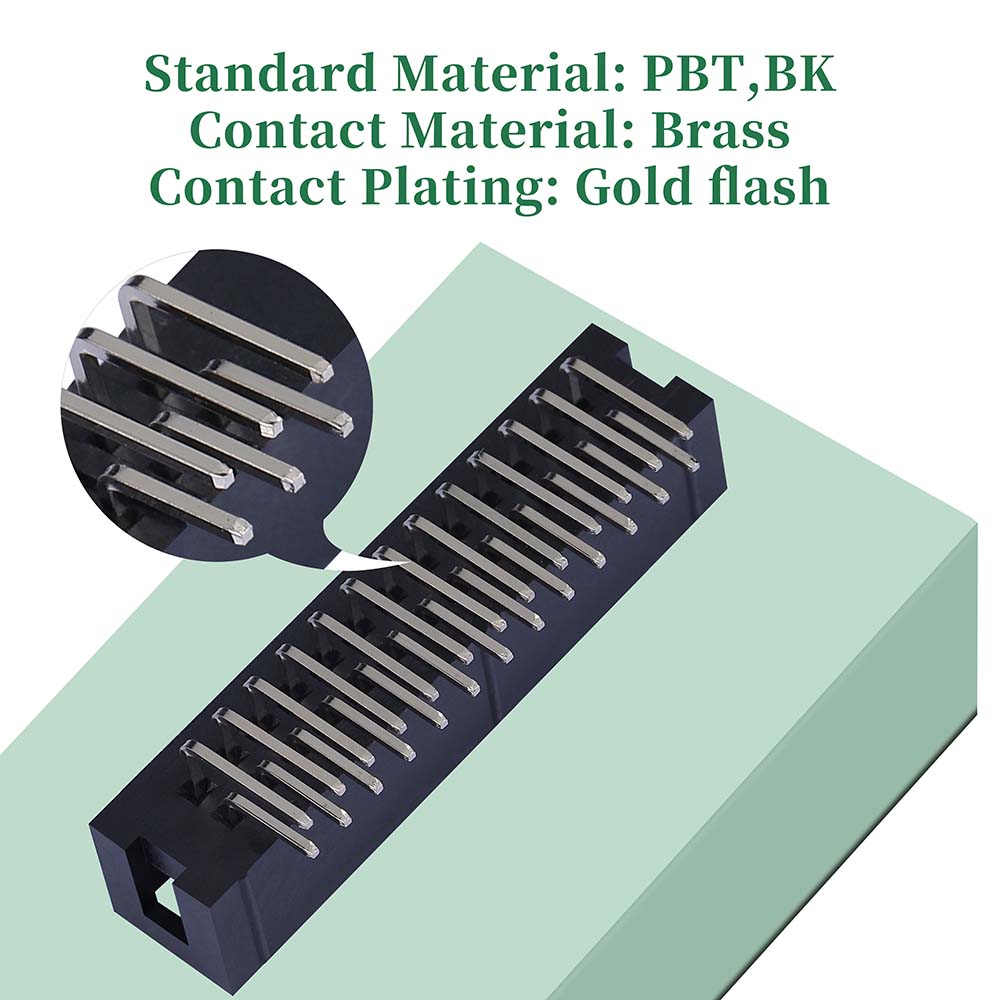

- Standard Material: PBT, BK
- Contacts Material: Brass
- Contact Plating: Au or Sn over 50u" Ni
- Plating: Gold flash
- Currrnt Rating: 3 Ampere
- Contact Resistance: 20 milliohm maximum
- Insulator Resistance: 1000 megohm minimum
- Withstanding Voltage: AC 1000V

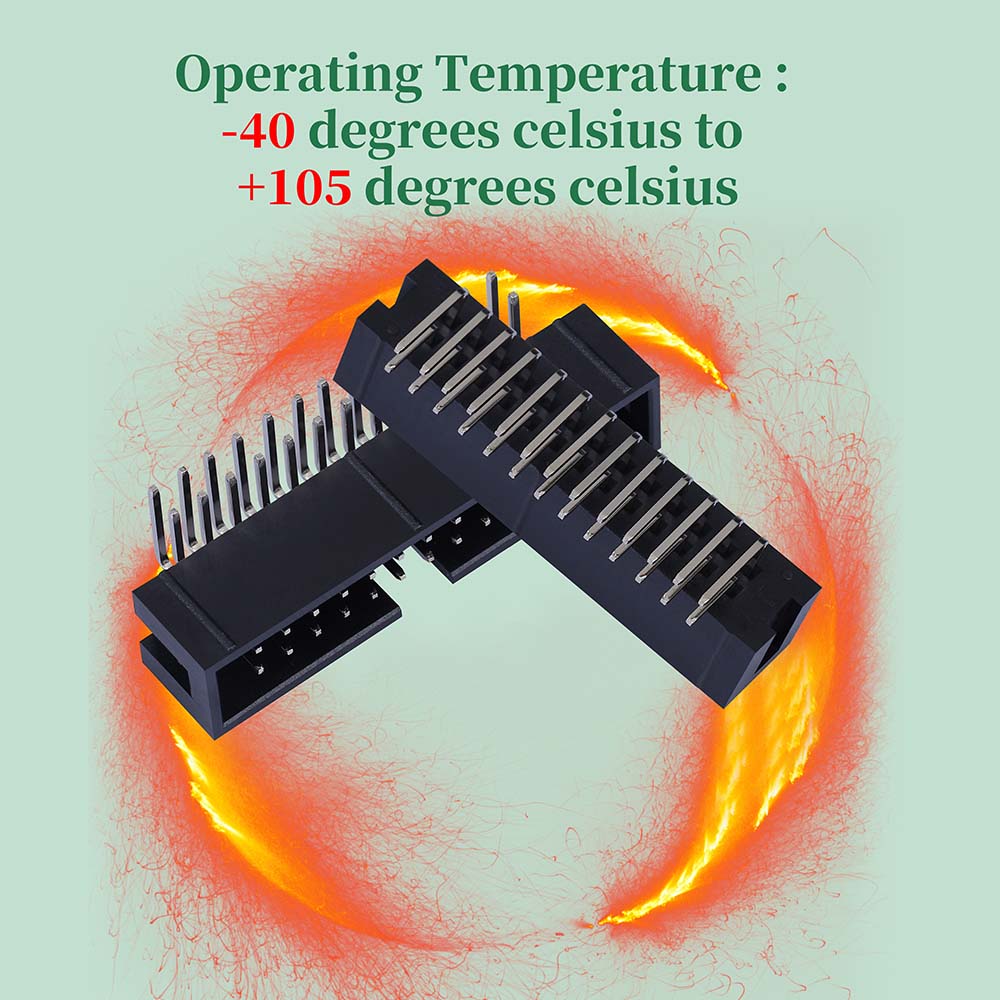

- Operating Temperature: -40 degrees celsius to +105 degrees celsius
- Applicable Wire Gauge: UL2651#28, 1.27mm wire diameter
- Properties: Fire / Flame Retardant
