PZSJN-SMT-2.000B

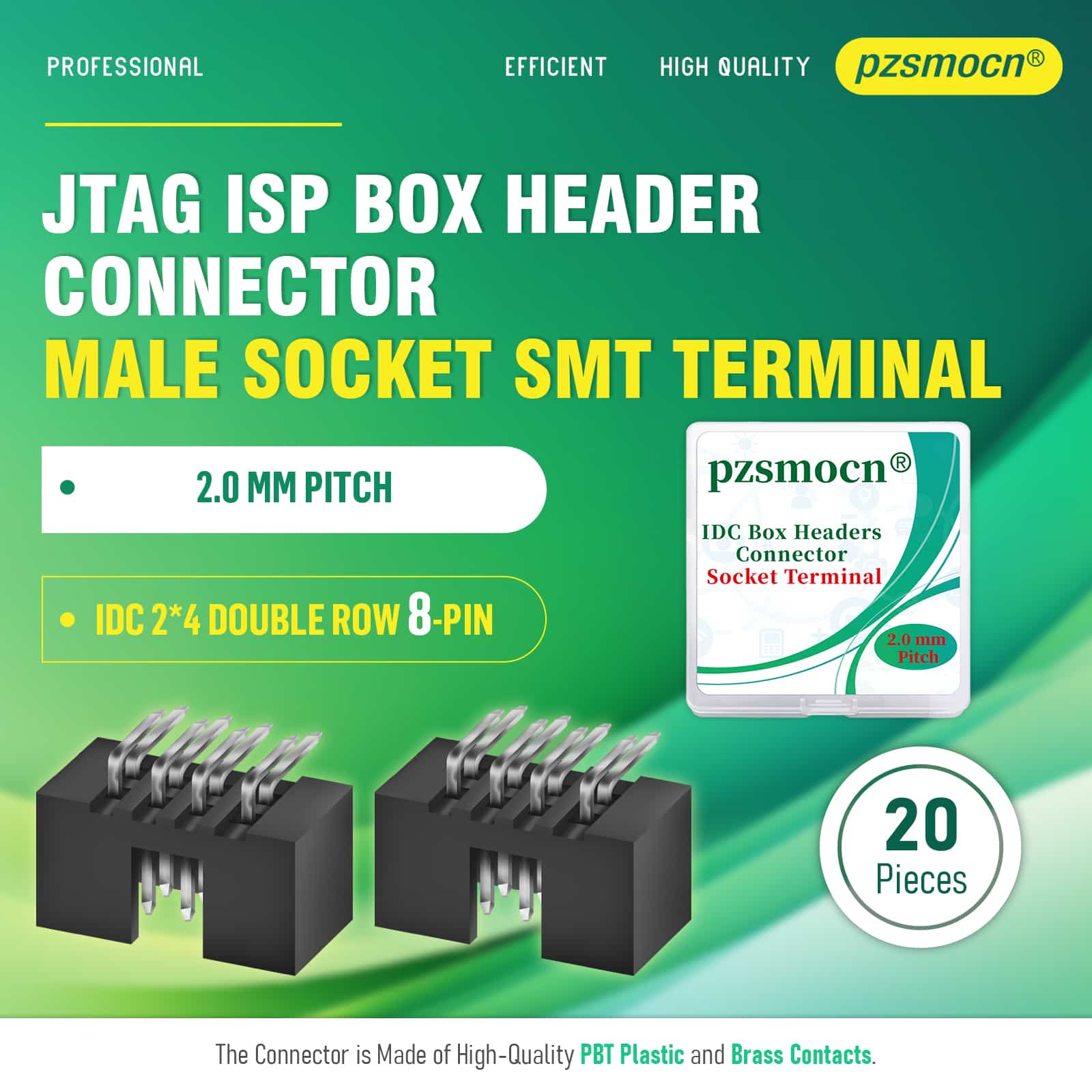

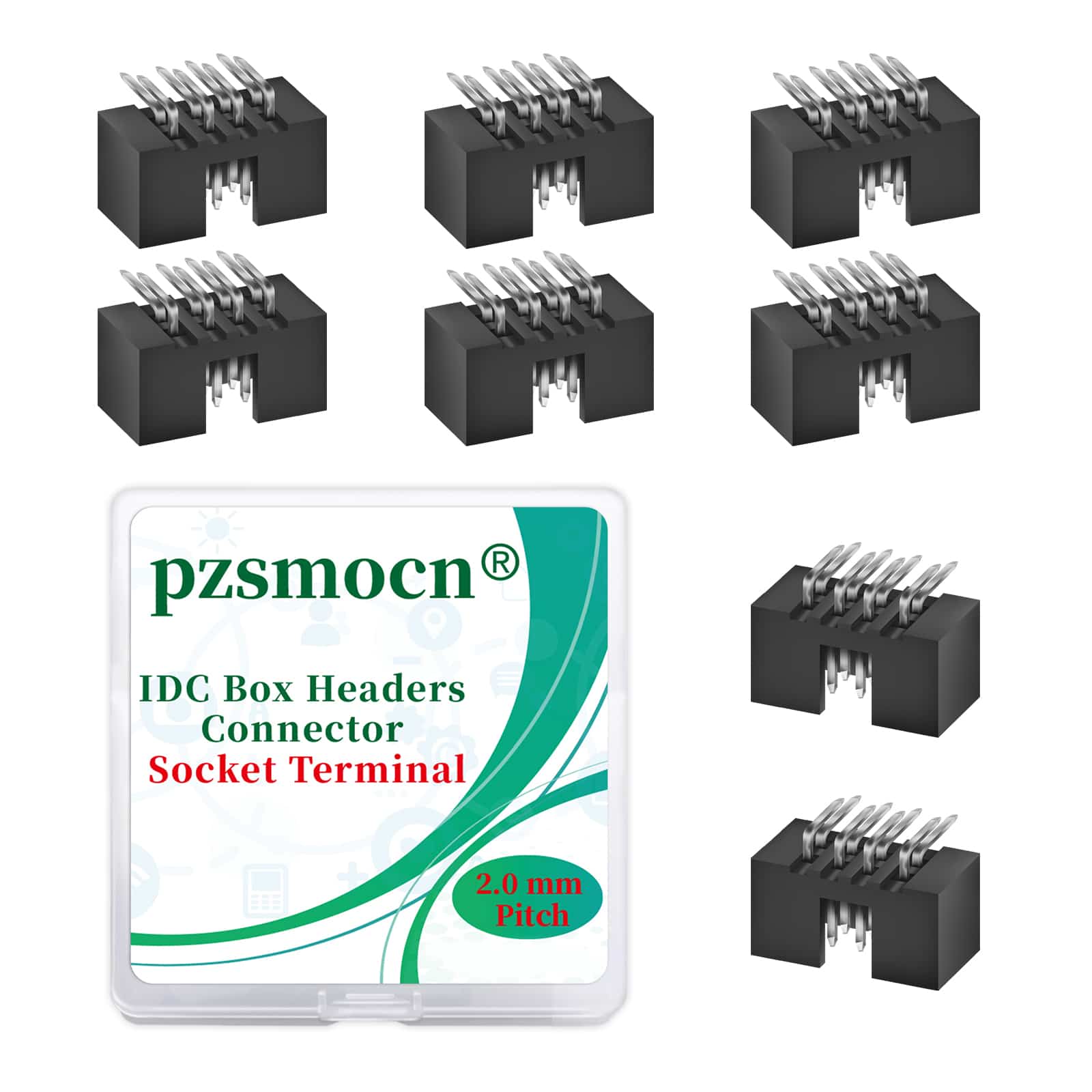

IDC Box Header Connector 2.0 mm 2*4 Double Row 8 Pin
SKU
PZSJN-SMT-2.000B
Part No.
PZSJN-SMT-2.000B
Brand
pzsmocn
7
.09
Pin：

6P

6P SMT

8P

8P SMT

10P

10P SMT

12P

12P SMT

14P

14P SMT

16P

16P SMT

18P

18P SMT

20P

20P SMT

24P

24P SMT

26P

26P SMT

30P

30P SMT

34P

34P SMT

40P

40P SMT

50P

50P SMT

Quantity
In Stock
Share:
10+
6
.74
Save 5%
50+
6
.45
Save 9%
100+
6
.24
Save 12%
200+
6
.03
Save 15%
500+
5
.67
Save 20%
Related Products:

Product details

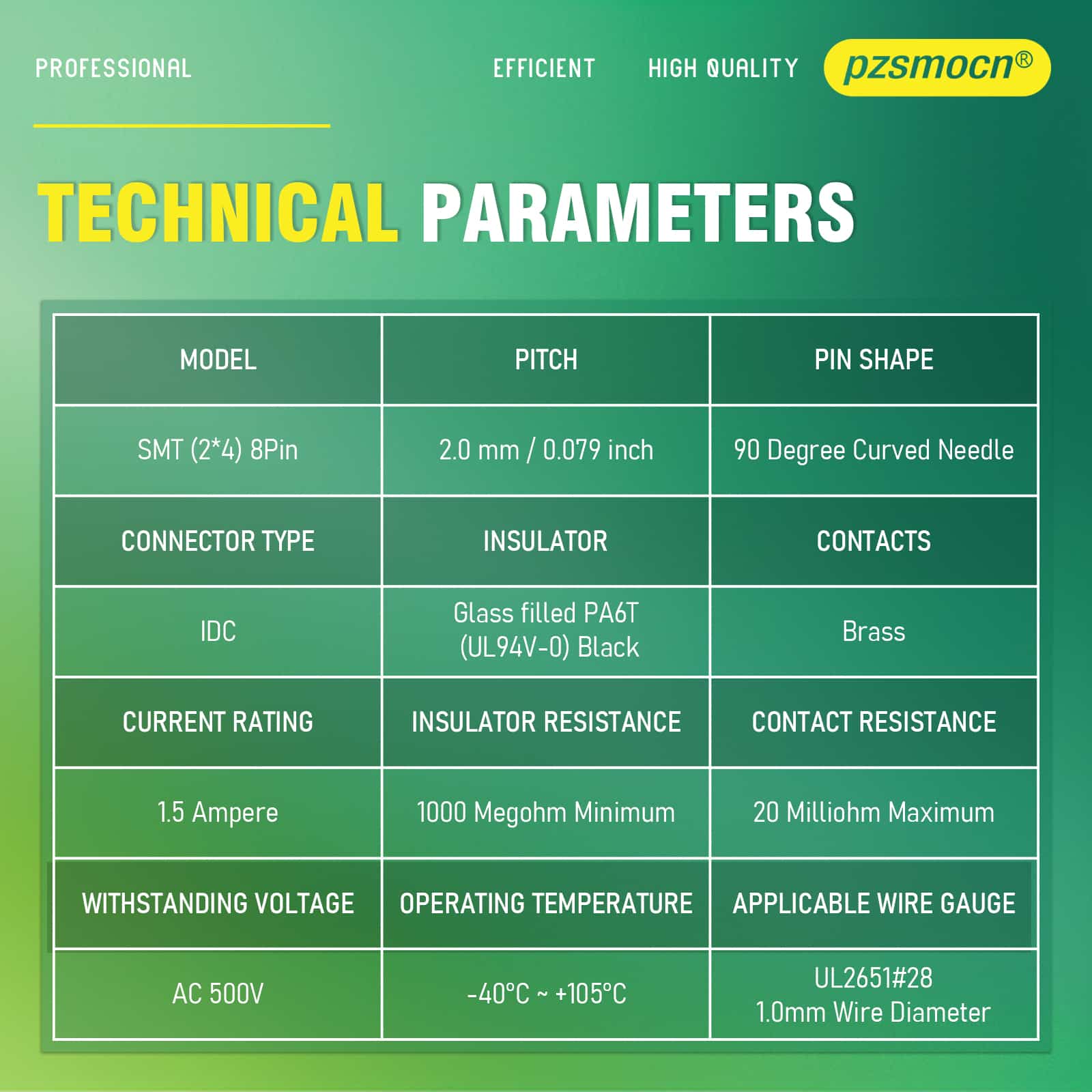

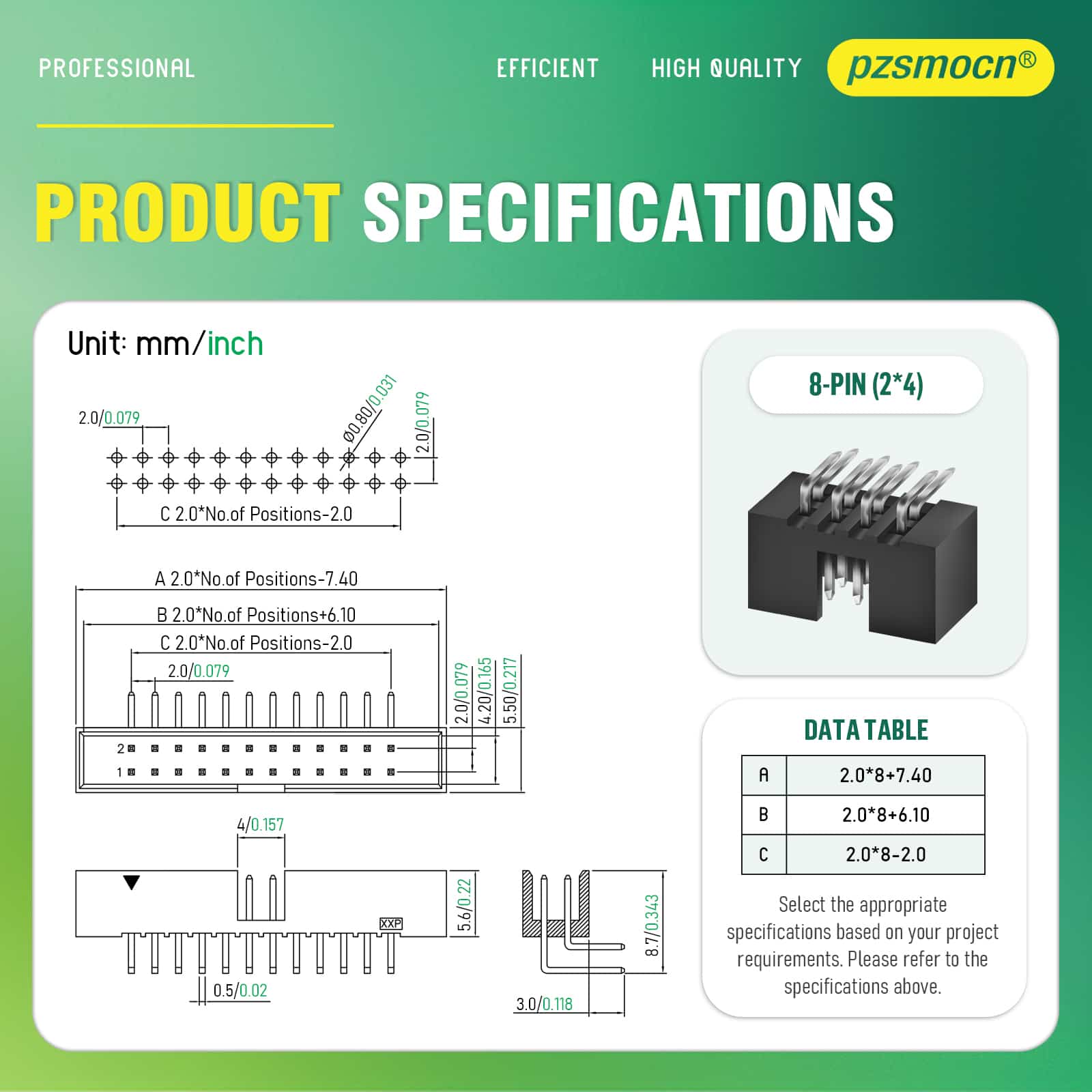

SPECIFICATION

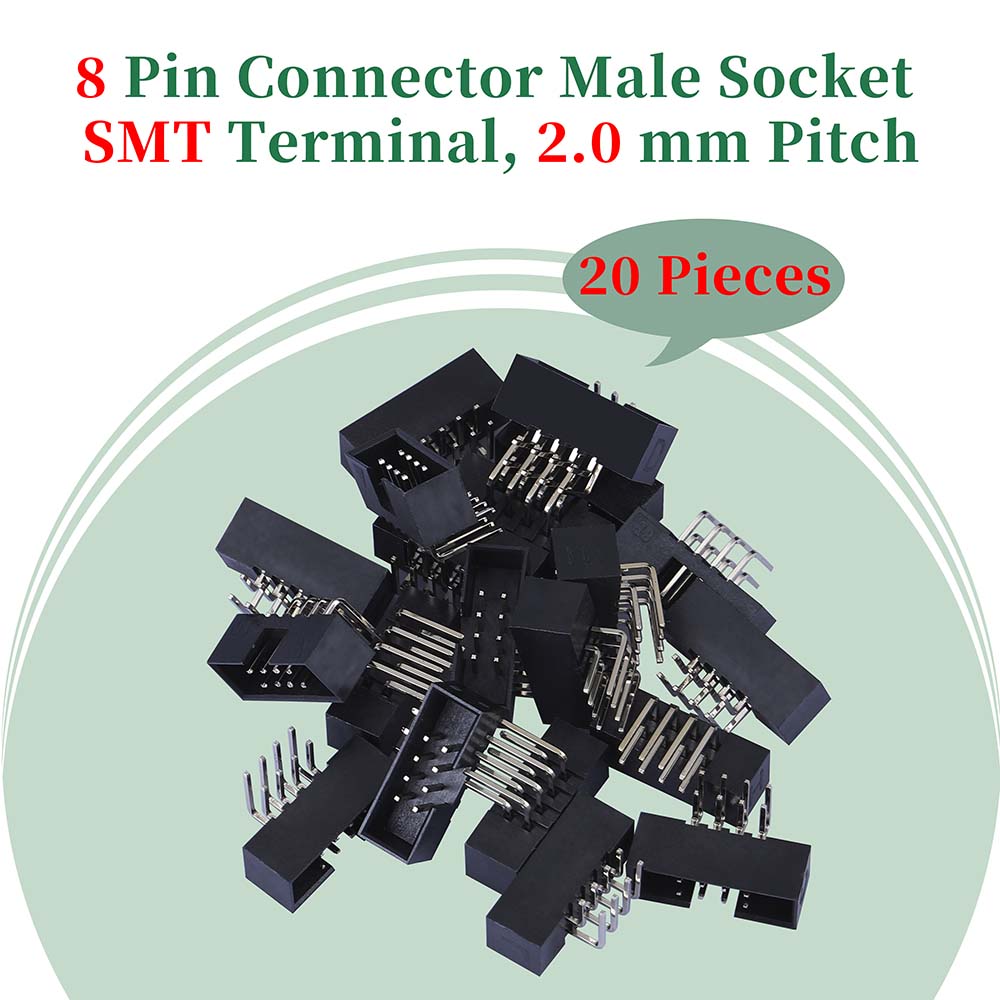

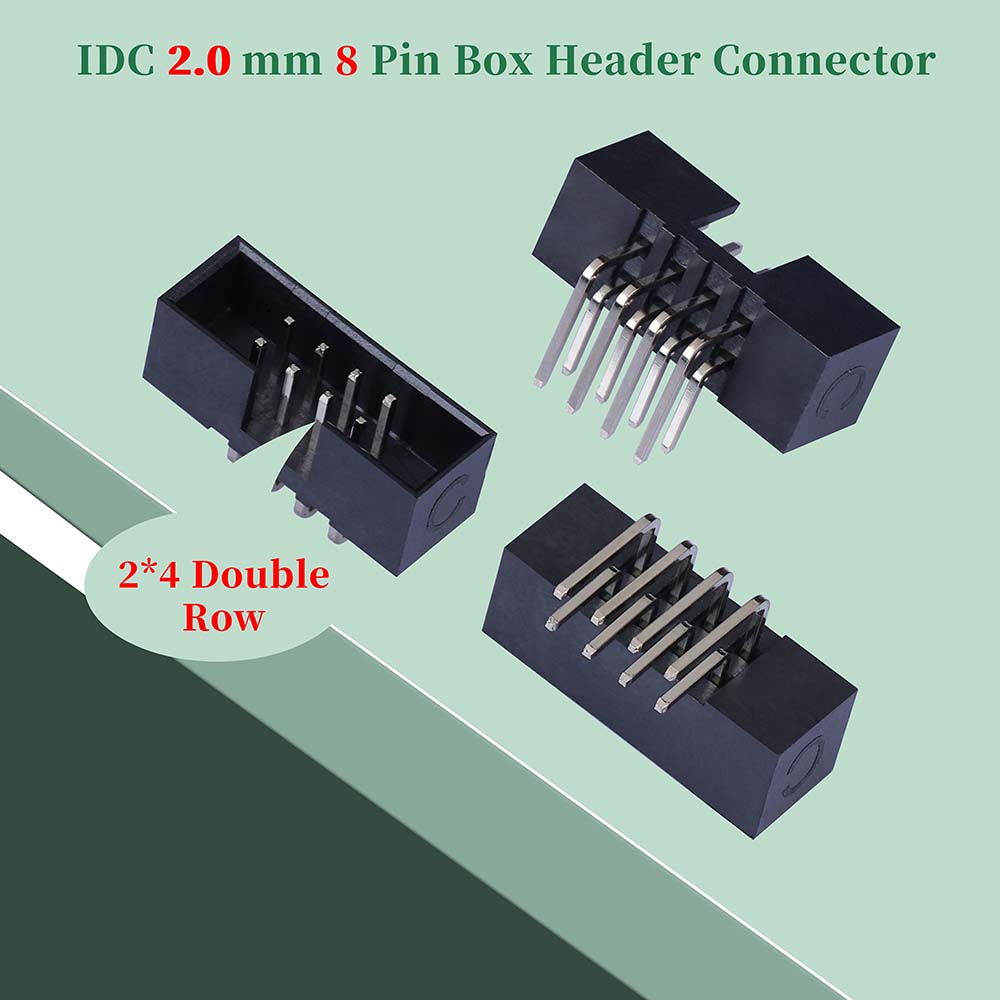

  • Model: IDC 2 * 4 Pin Male Socket SMT Terminal

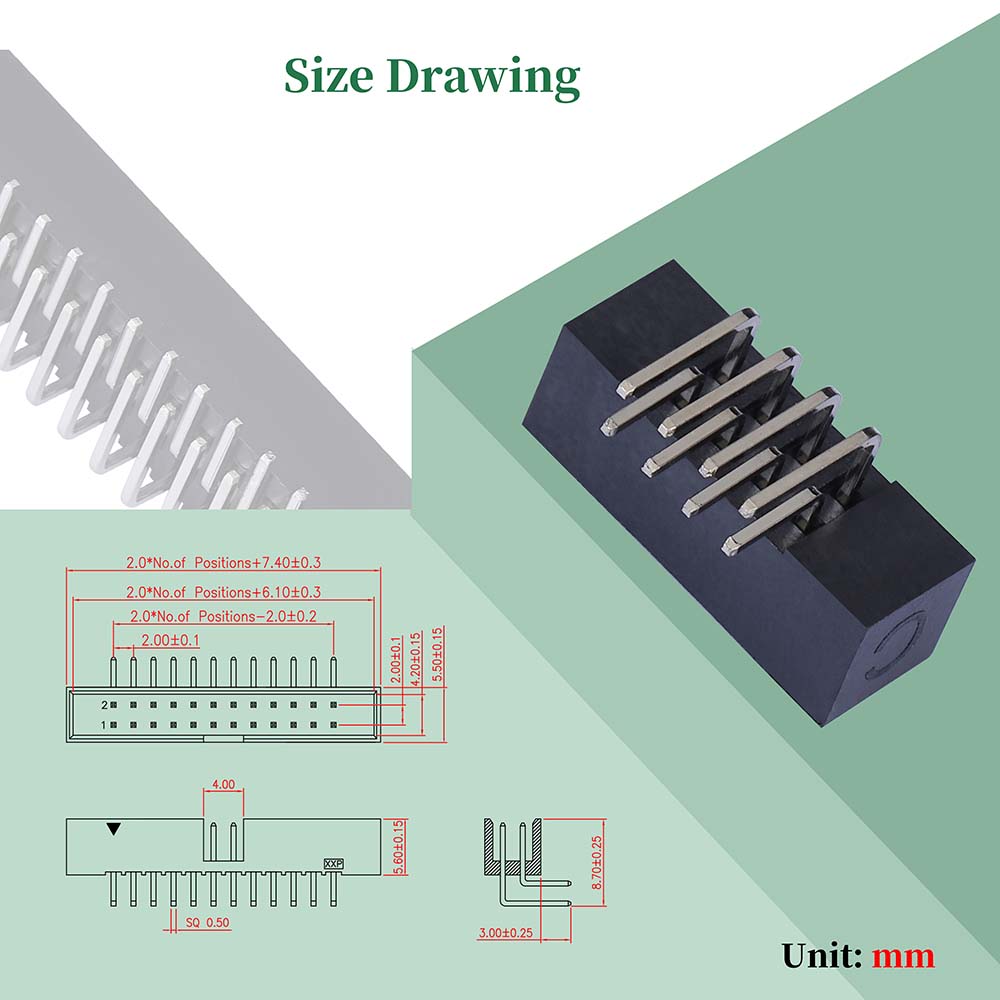

  • Pitch: 2.0 mm / 0.079 inch

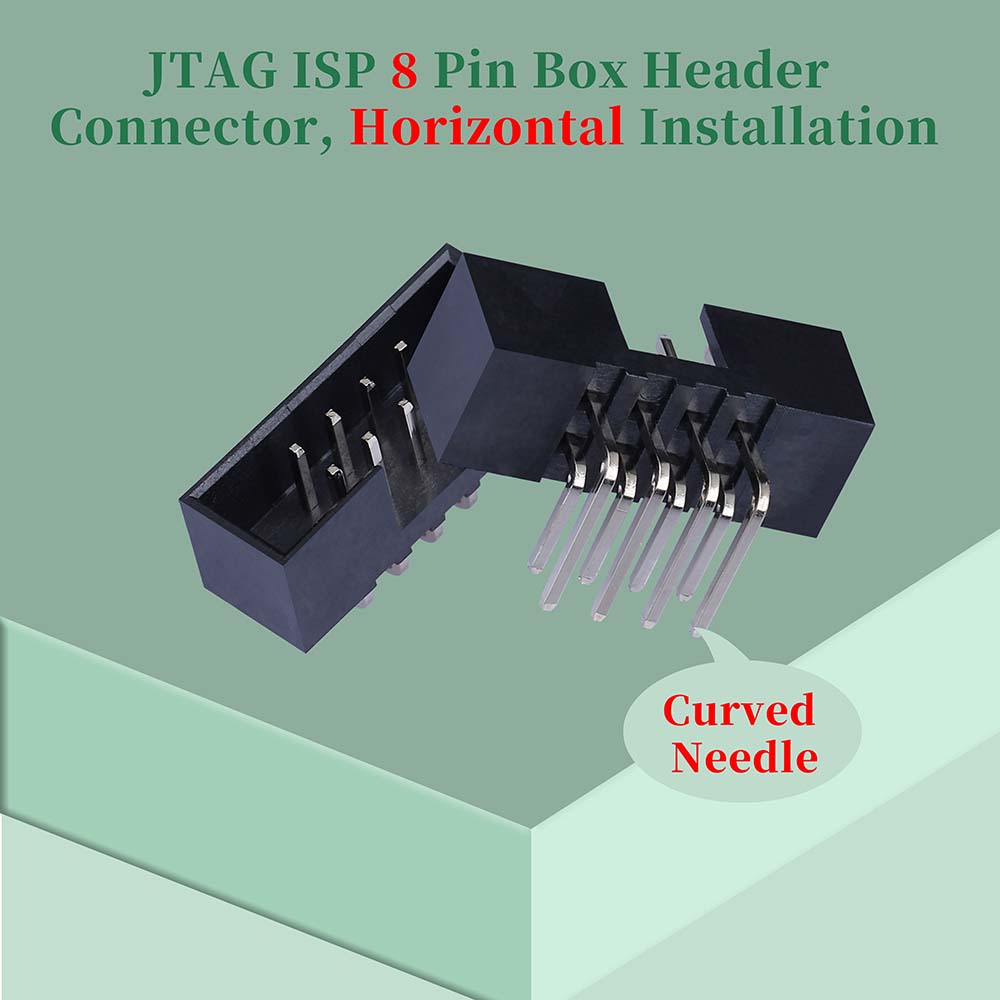

  • Pin Shape: 90 degree curved needle
  • Row Type: Double row
  • Connector Type: IDC

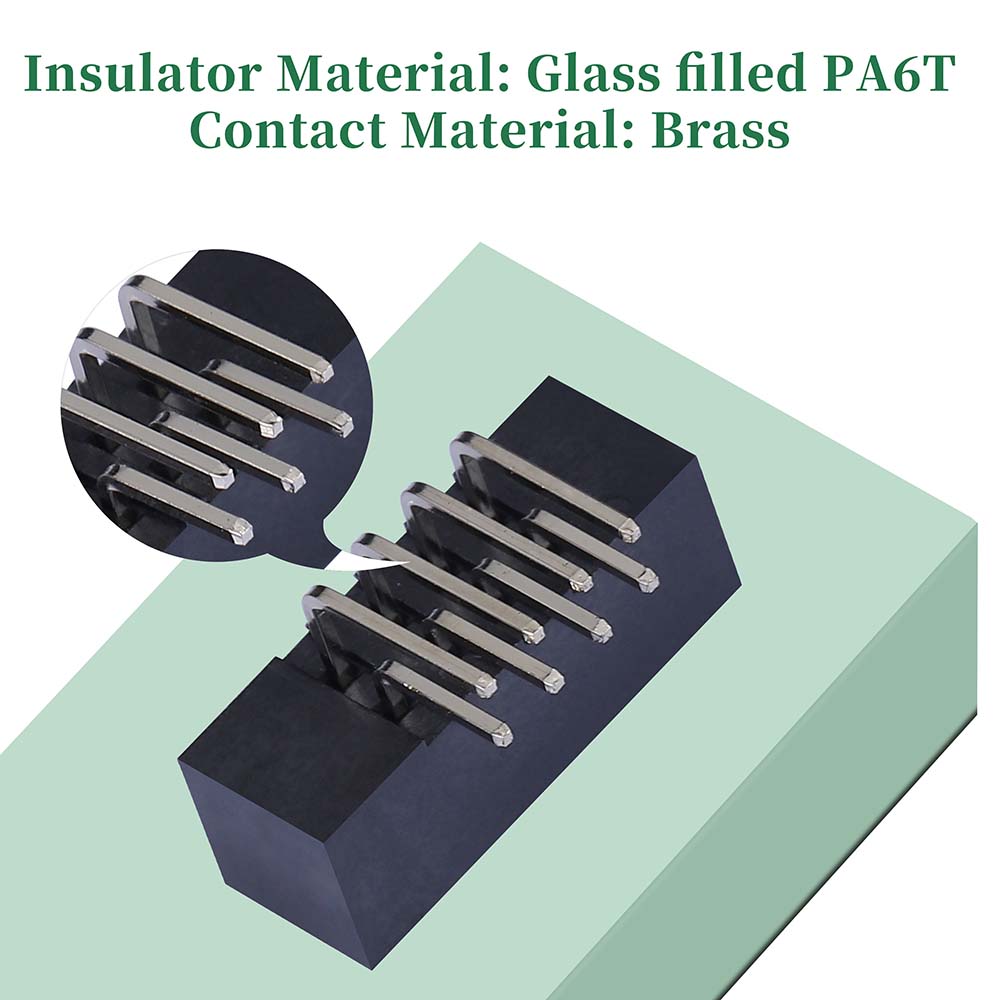

  • Insulator: Glass filled PA6T (UL94V-0), Black
  • Contacts: Brass
  • Currrnt Rating: 1.5 Ampere
  • Insulator Resistance: 1000 megohm minimum
  • Contact Resistance: 20 milliohm maximum
  • Withstanding Voltage: AC 500V

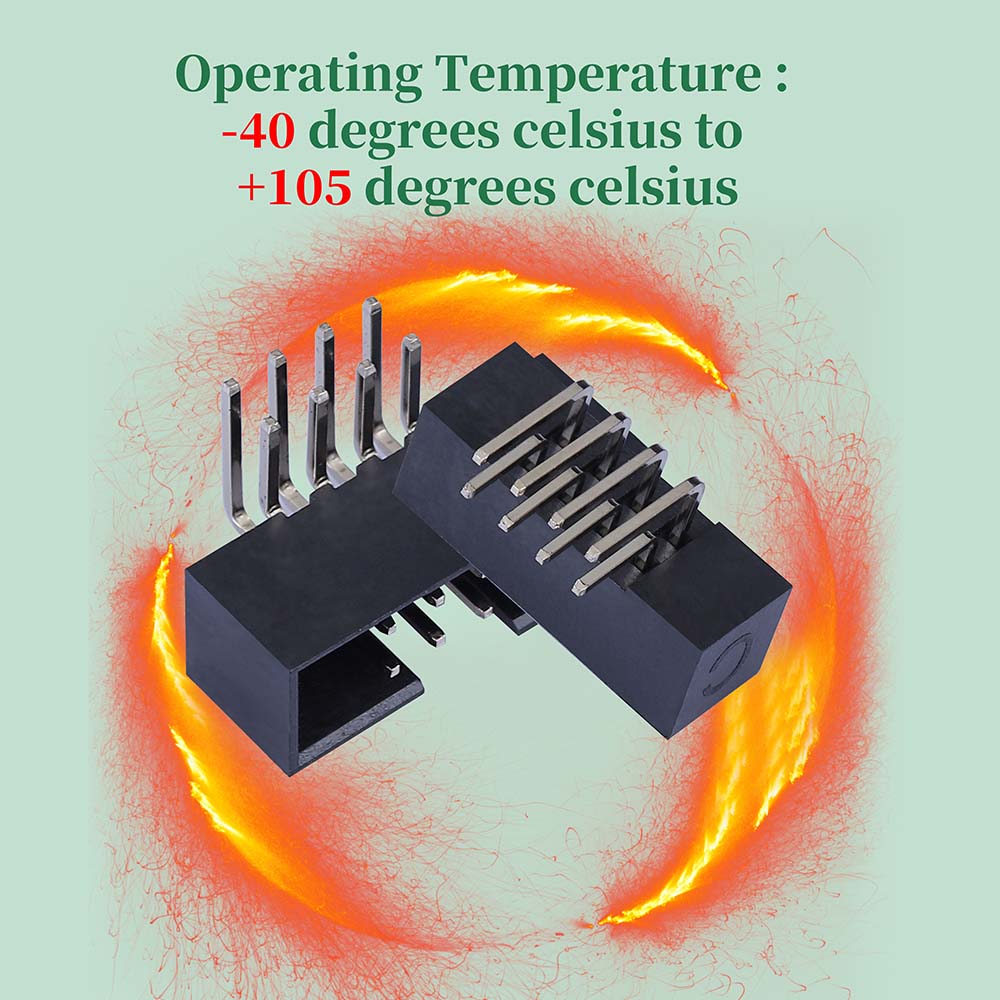

  • Operating Temperature: -40 degrees celsius to +105 degrees celsius
  • Max Processing Temp: 230 degrees celsius to 260 degrees celsius for 30 to 60 seconds
  • Applicable Wire Gauge: UL2651#28, 1.0mm wire diameter
  • Properties: Fire / Flame Retardant
