PZSFC2.000J

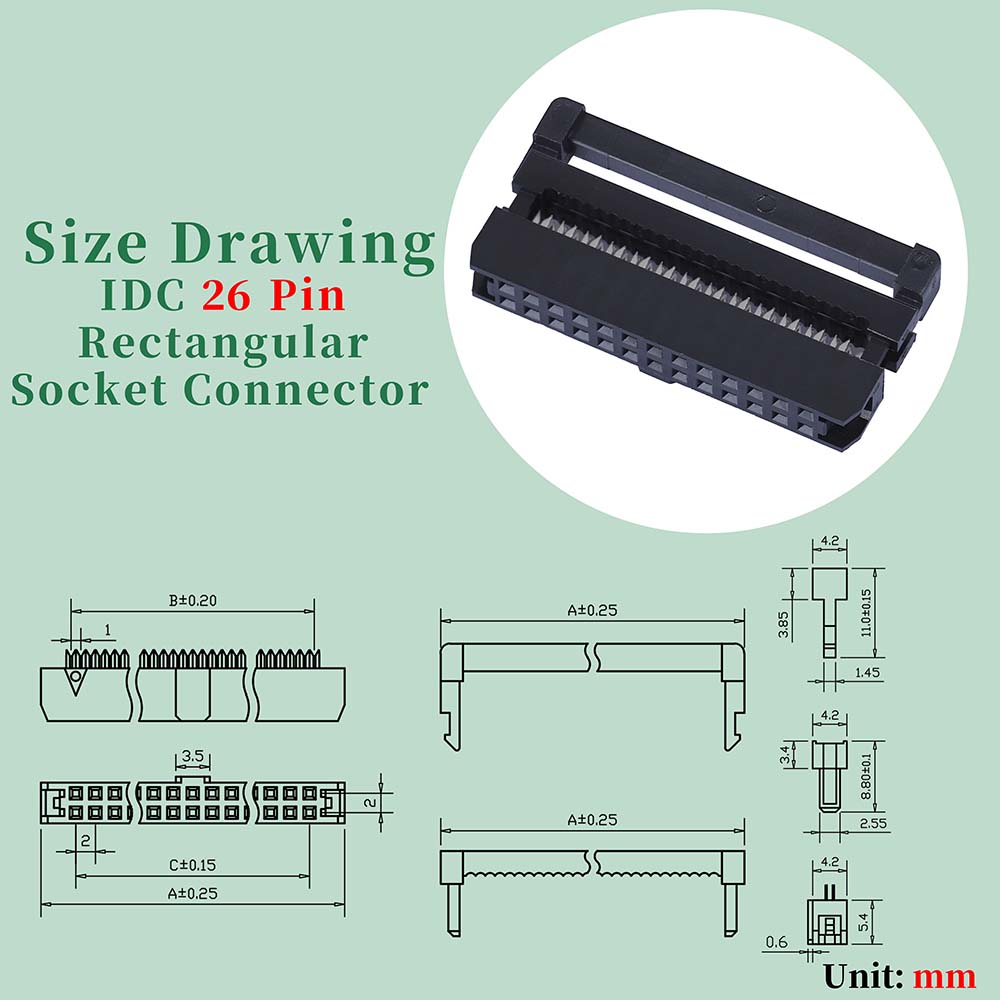

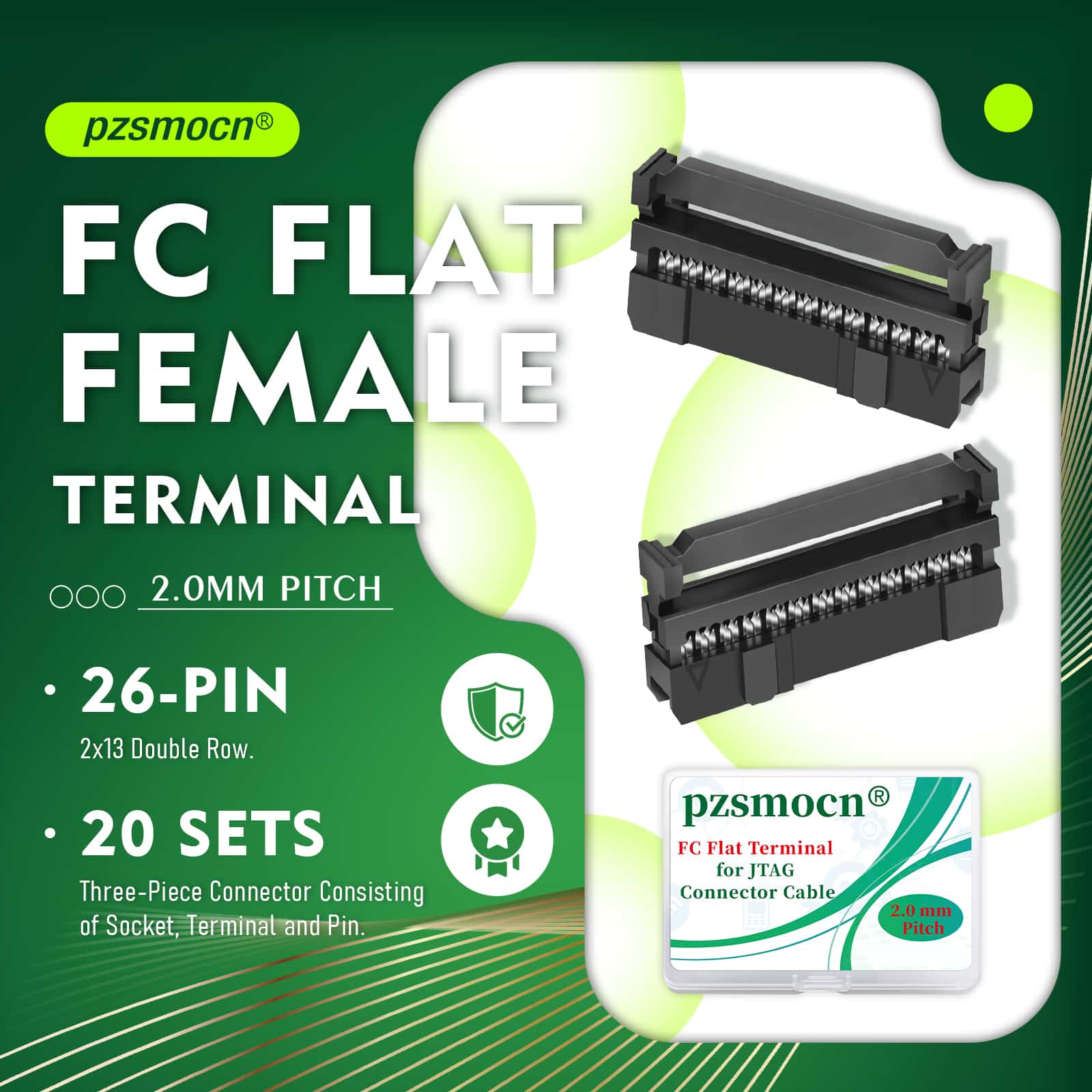

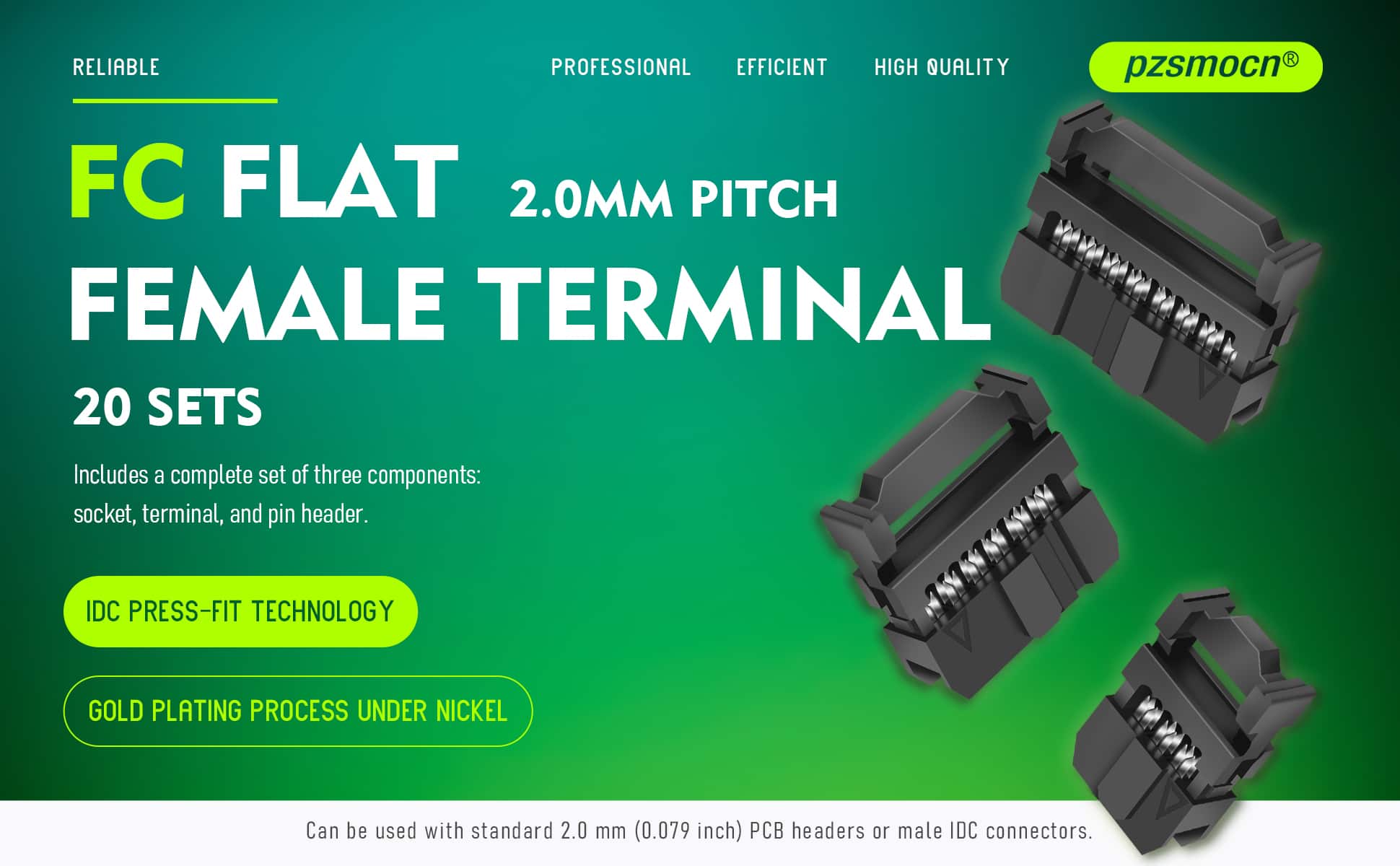

IDC Rectangular Socket Connector 2.0 mm 2*13 Double Row 26 Pin
SKU
PZSFC2.000J
Part No.
PZSFC2.000J
Brand
pzsmocn
6
.89

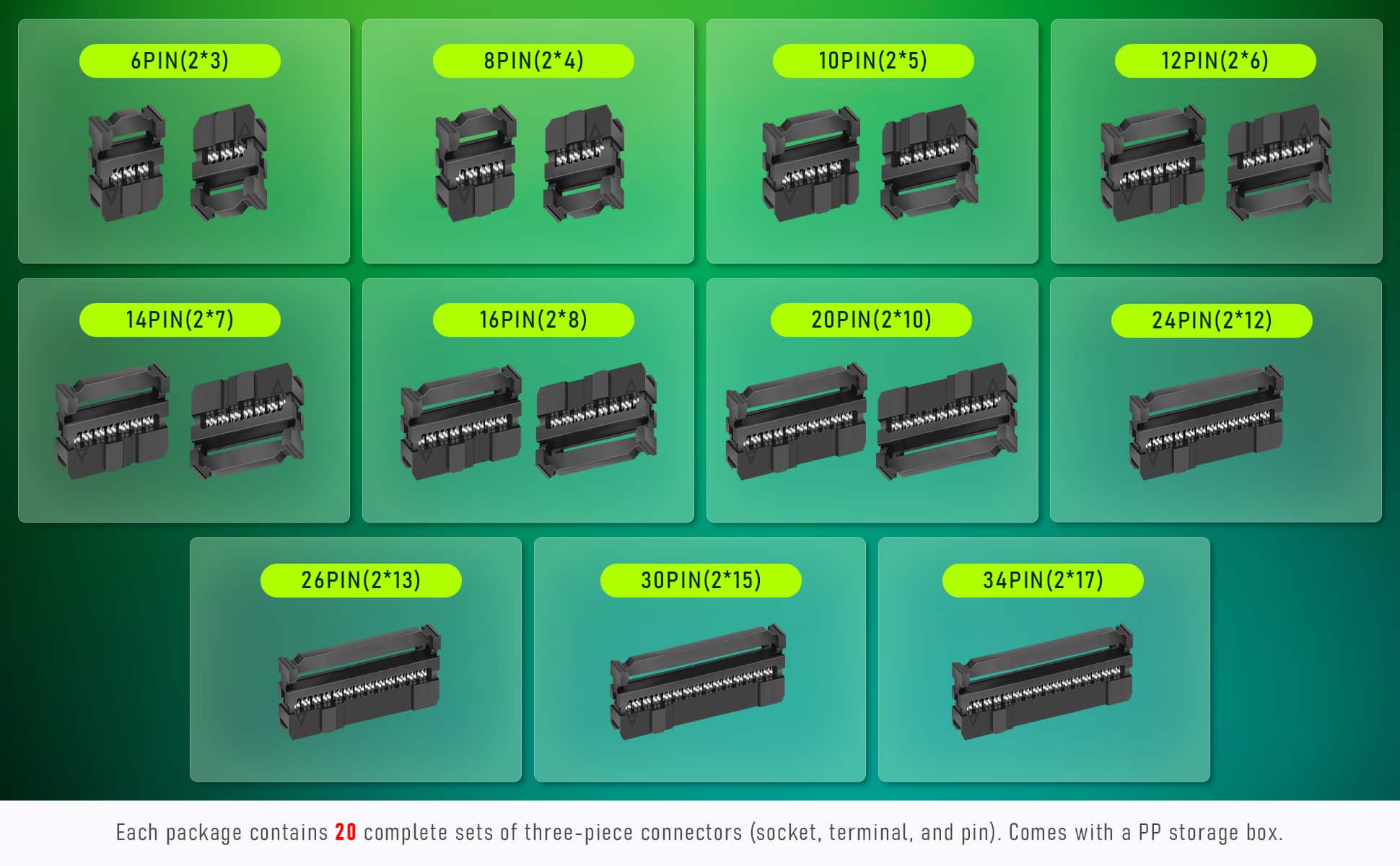

Type：

FC Flat Female

Pin：

6P

8P

10P

12P

14P

16P

20P

24P

26P

30P

34P

40P

50P

Quantity
In Stock
Share:
10+
6
.55
Save 5%
50+
6
.27
Save 9%
100+
6
.06
Save 12%
200+
5
.86
Save 15%
500+
5
.51
Save 20%
Related Products:

Product details

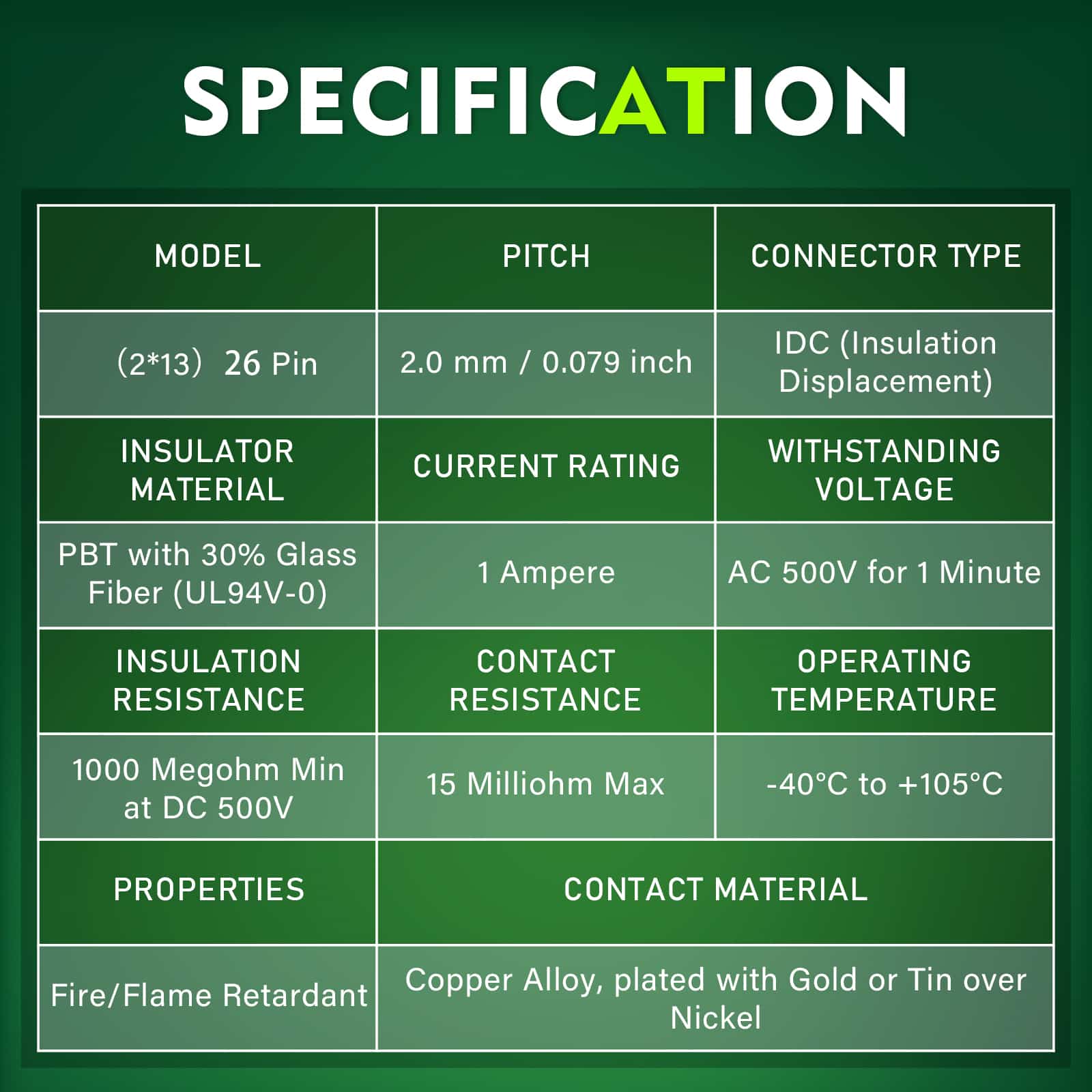

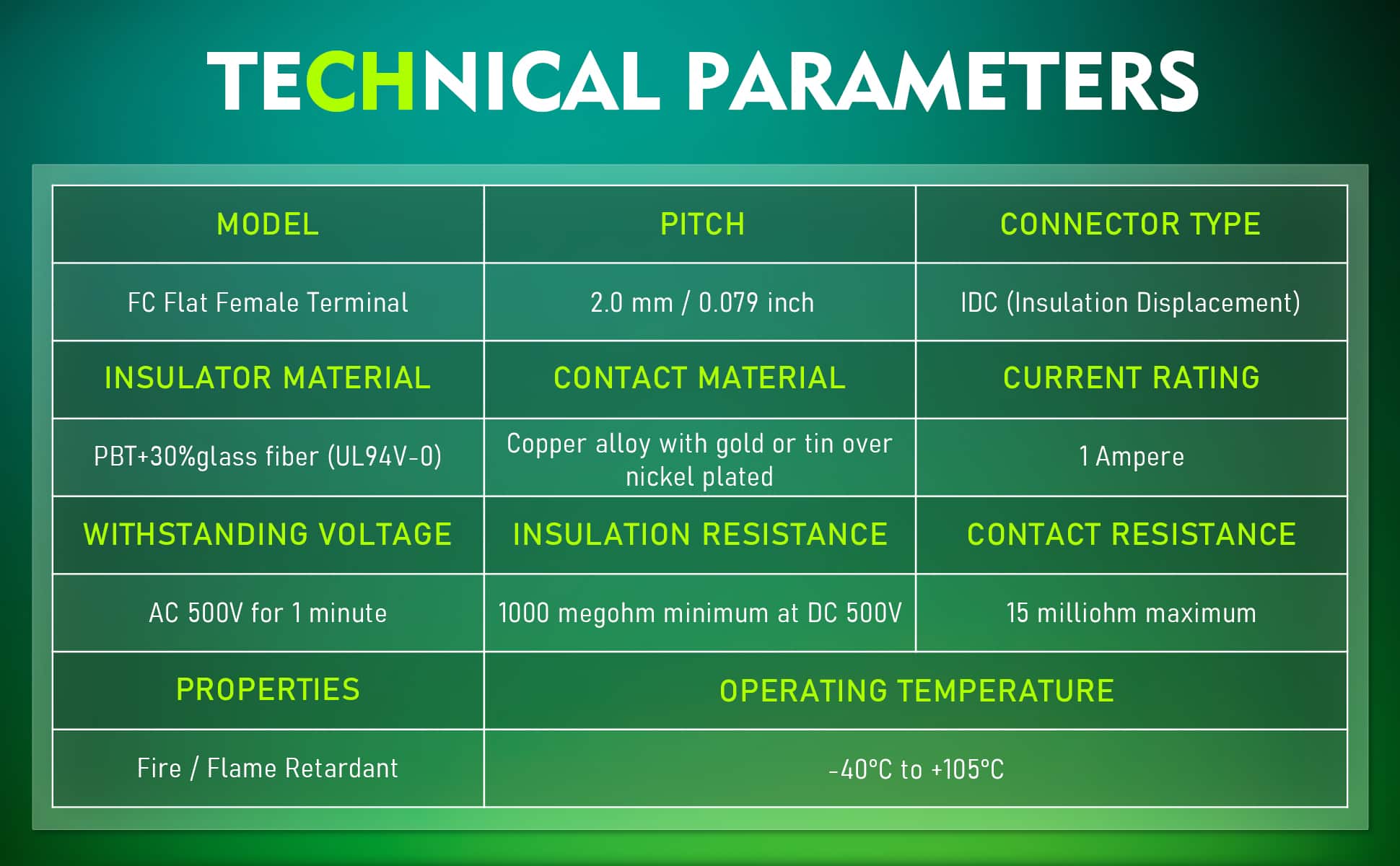

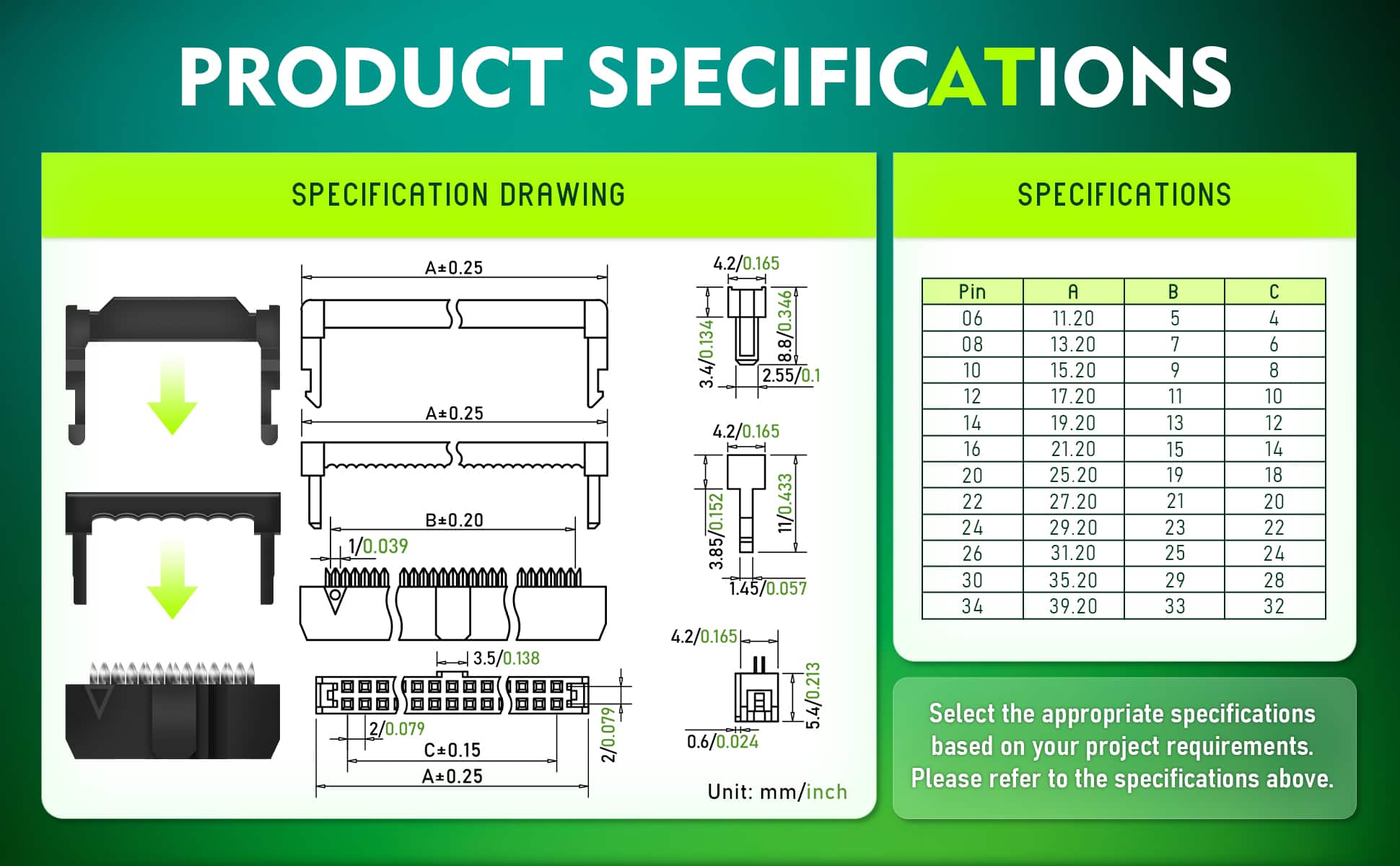

SPECIFICATION

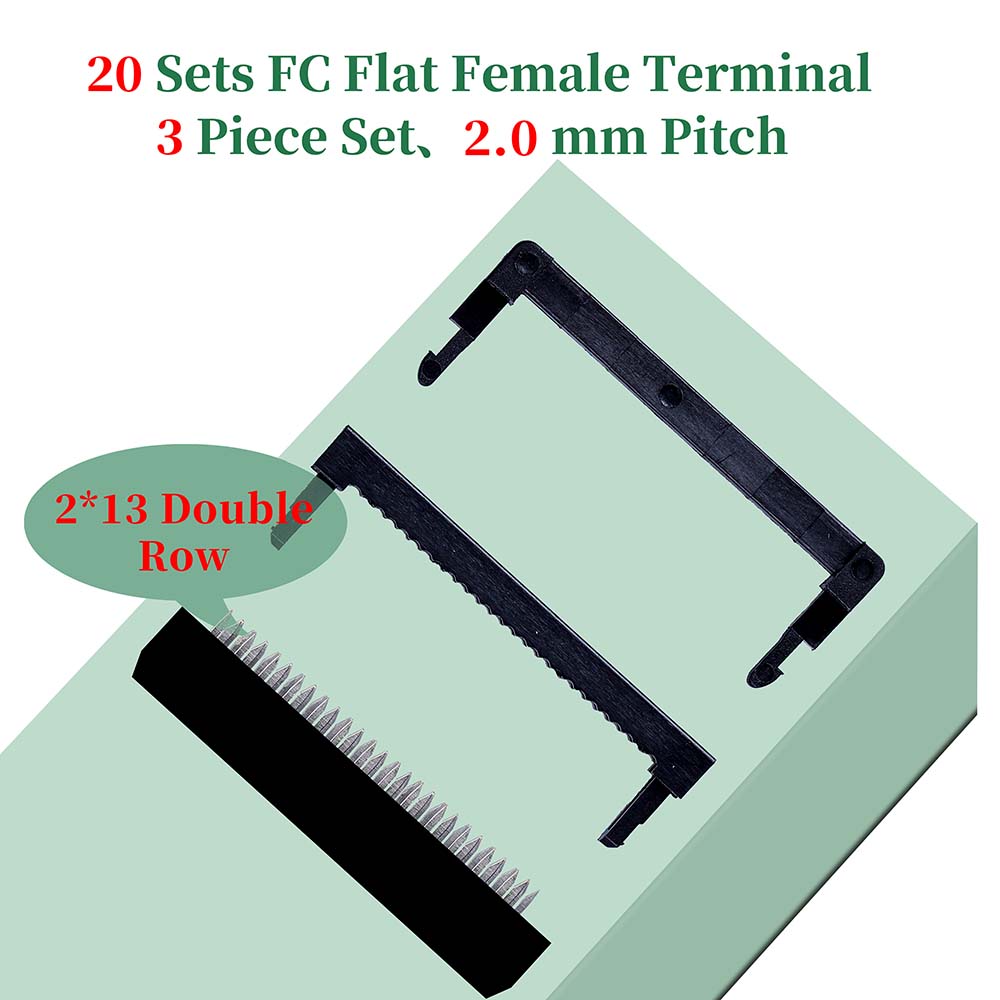

  • Type: FC-2*13 Pin Female Terminal
  • Pitch: 2.0 mm / 0.079 inch
  • Connector Type: IDC

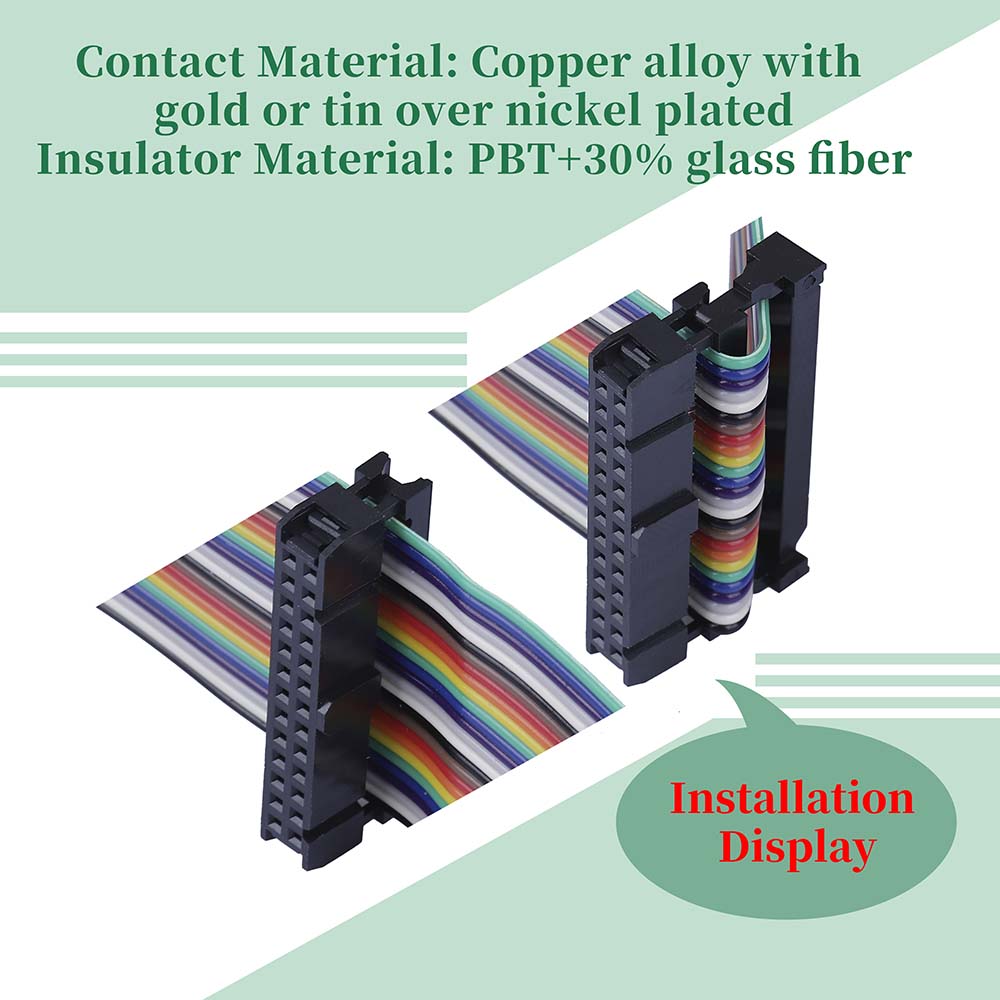

  • Insulator Material: PBT+30%glass fiber (UL94V-0)
  • Contact Material: Copper alloy with gold or tin over nickel plated
  • Current Rating: 1 Ampere
  • Withstanding Voltage: AC 500V for 1 minute
  • Insulation Resistance: 1000 megohm minimum at DC 500V
  • Contact Resistance: 15 milliohm maximum

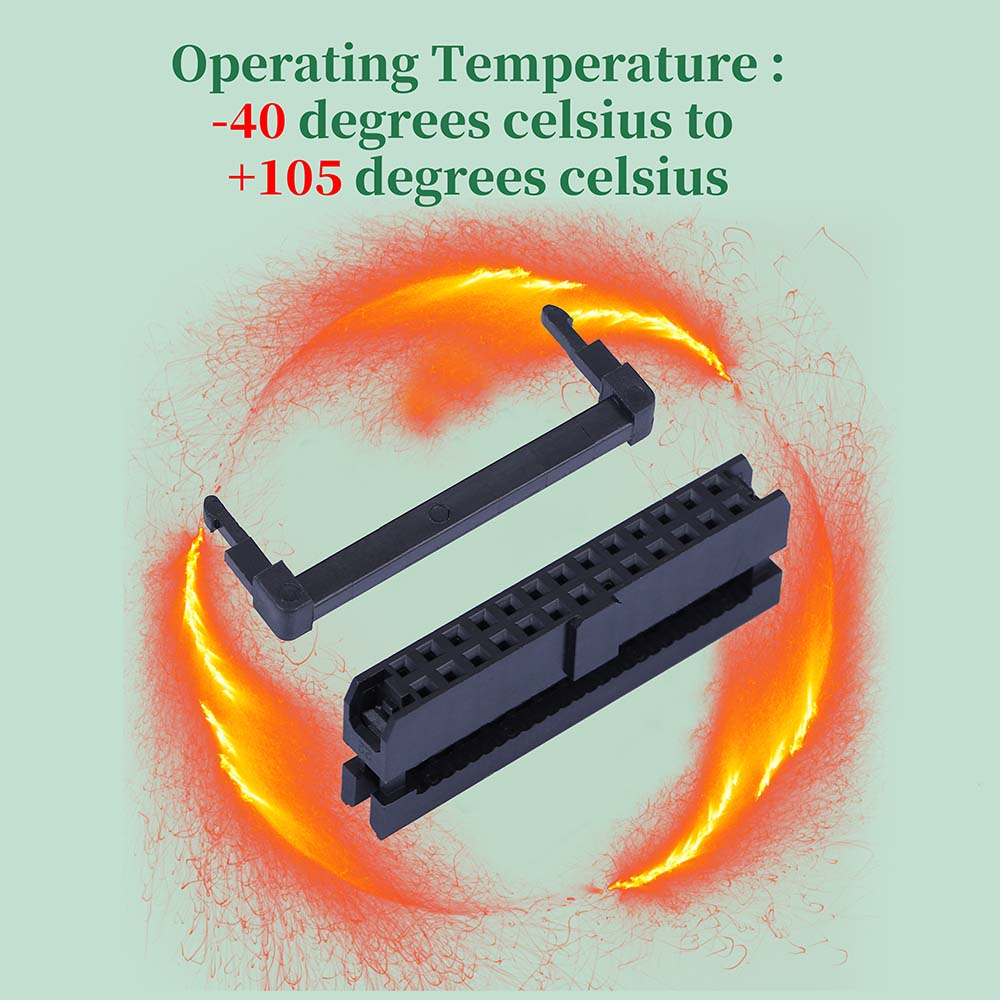

  • Operating Temperature: -40 degrees celsius to +105 degrees celsius
  • Properties: Fire / Flame Retardant

Header Connector 2.0mm Pitch-PZSFC2.000A-7.jpgHeader Connector 2.0mm Pitch-PZSFC2.000A-8.jpgHeader Connector 2.0mm Pitch-PZSFC2.000A-9.jpgHeader Connector 2.0mm Pitch-PZSFC2.000A-10.jpgHeader Connector 2.0mm Pitch-PZSFC2.000A-11.jpgHeader Connector 2.0mm Pitch-PZSFC2.000A-12.jpg
