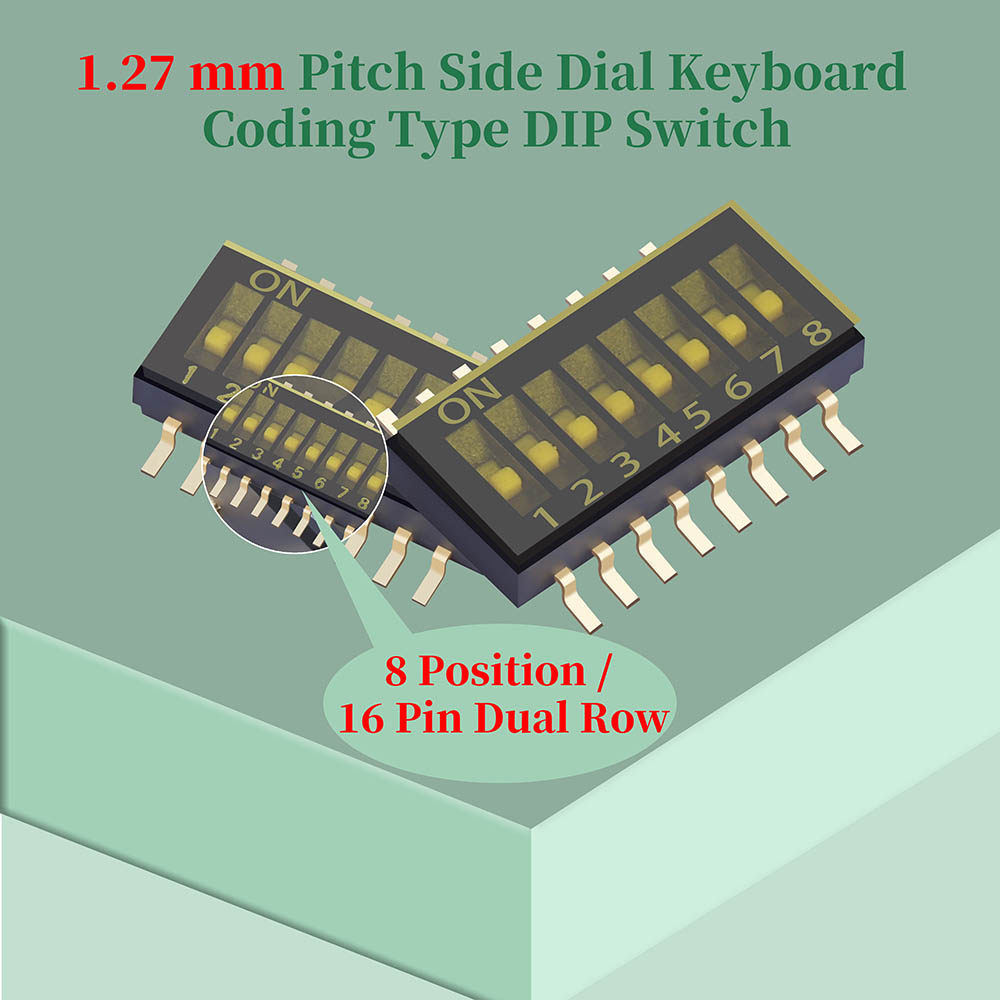

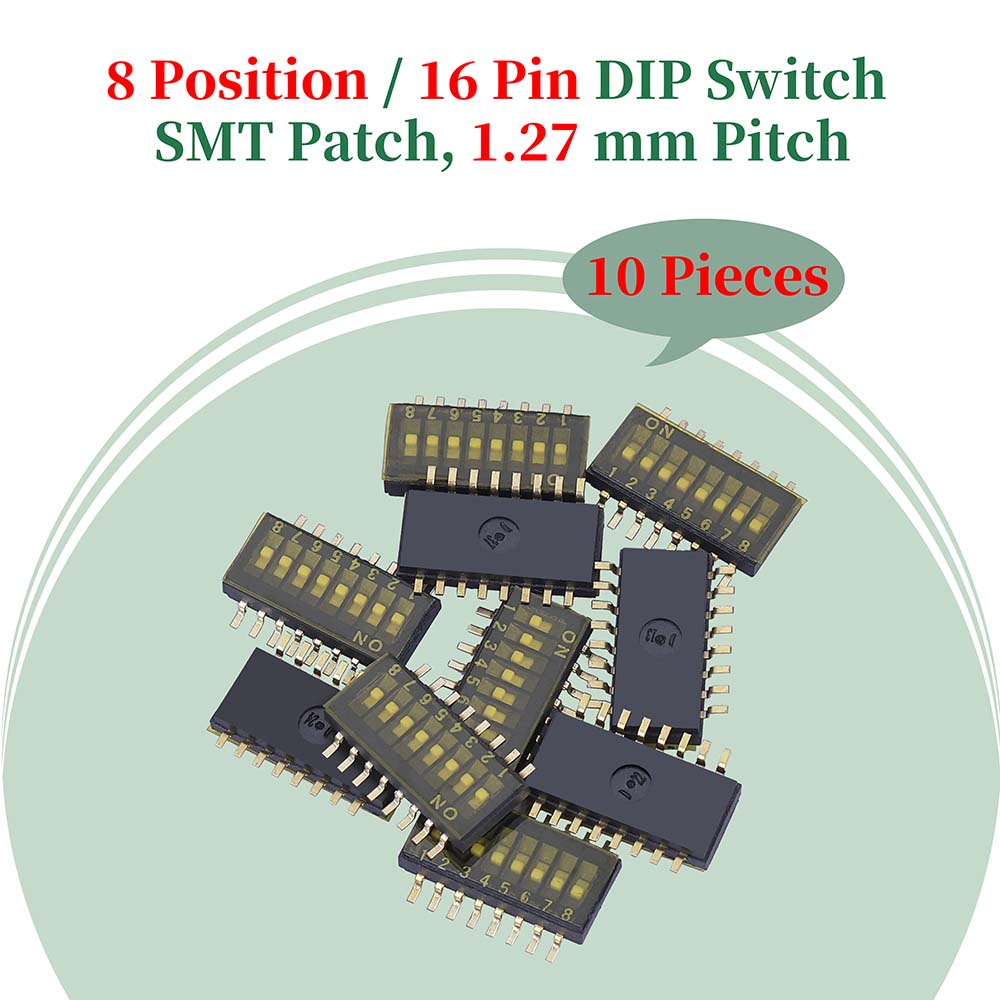

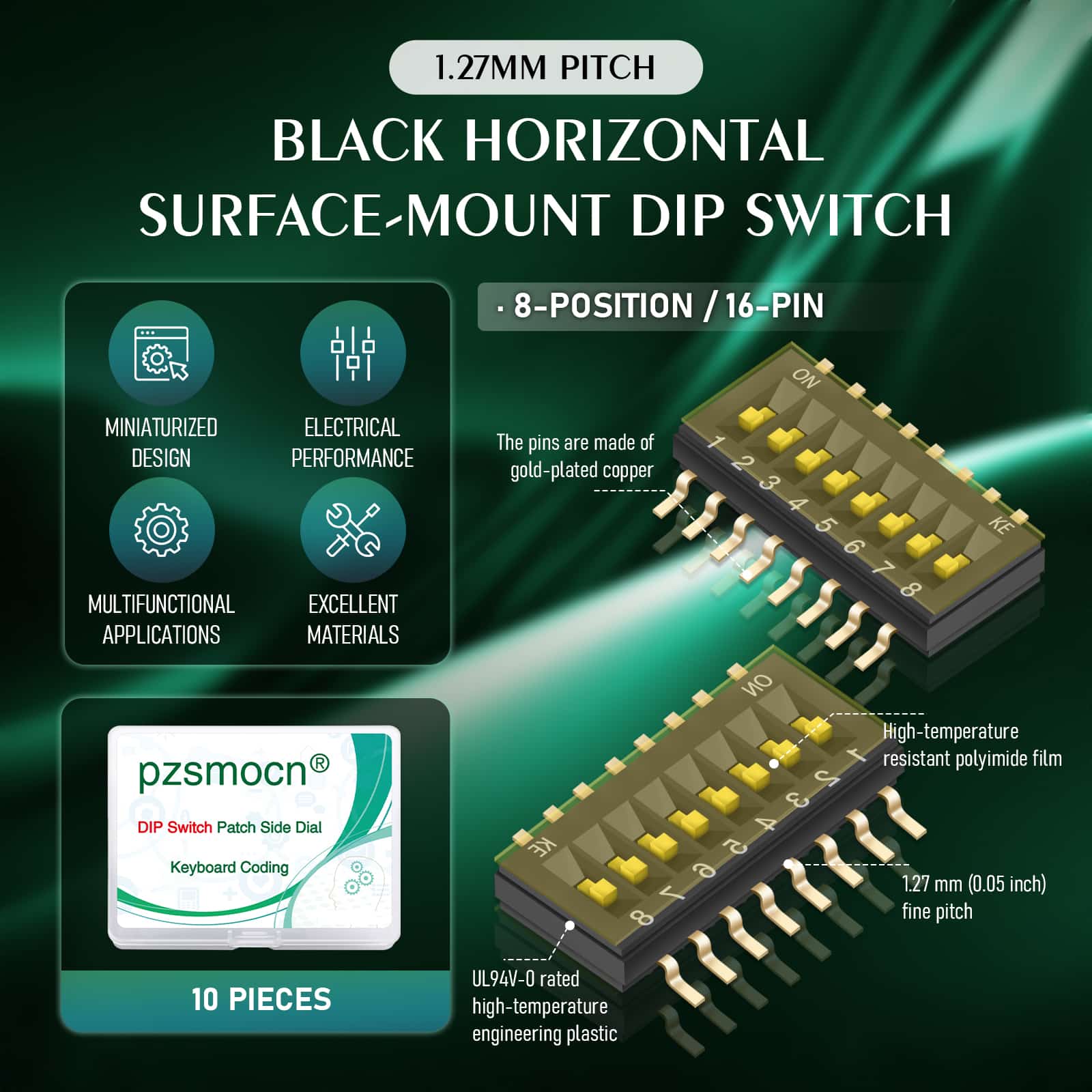

Dual Row SMT Patch DIP Switch 1.27 mm Pitch 8 Position / 16 Pin
6
.89
10+
6
.55
Save 5%
50+
6
.27
Save 9%
100+
6
.06
Save 12%
200+
5
.86
Save 15%
500+
5
.51
Save 20%
Product details

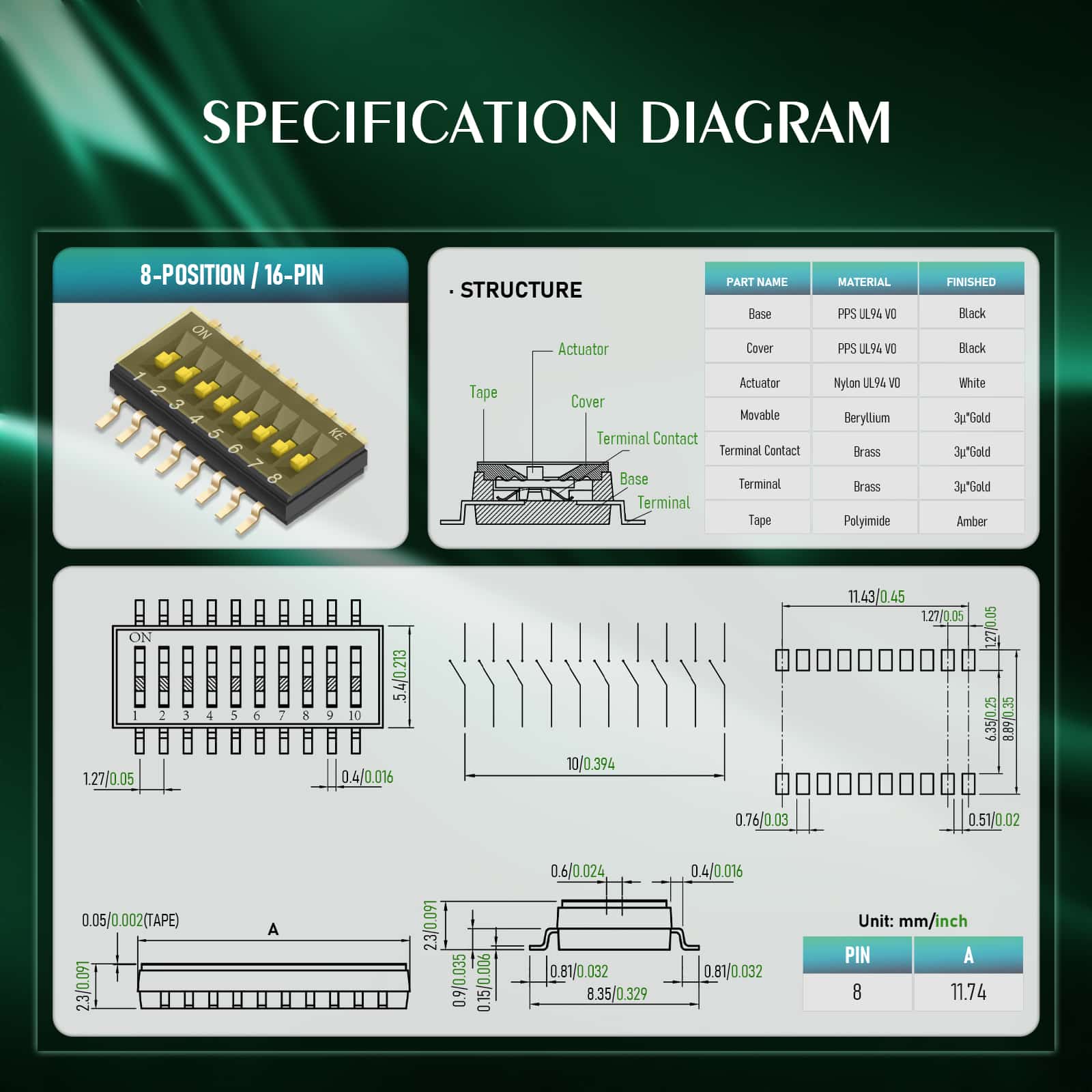

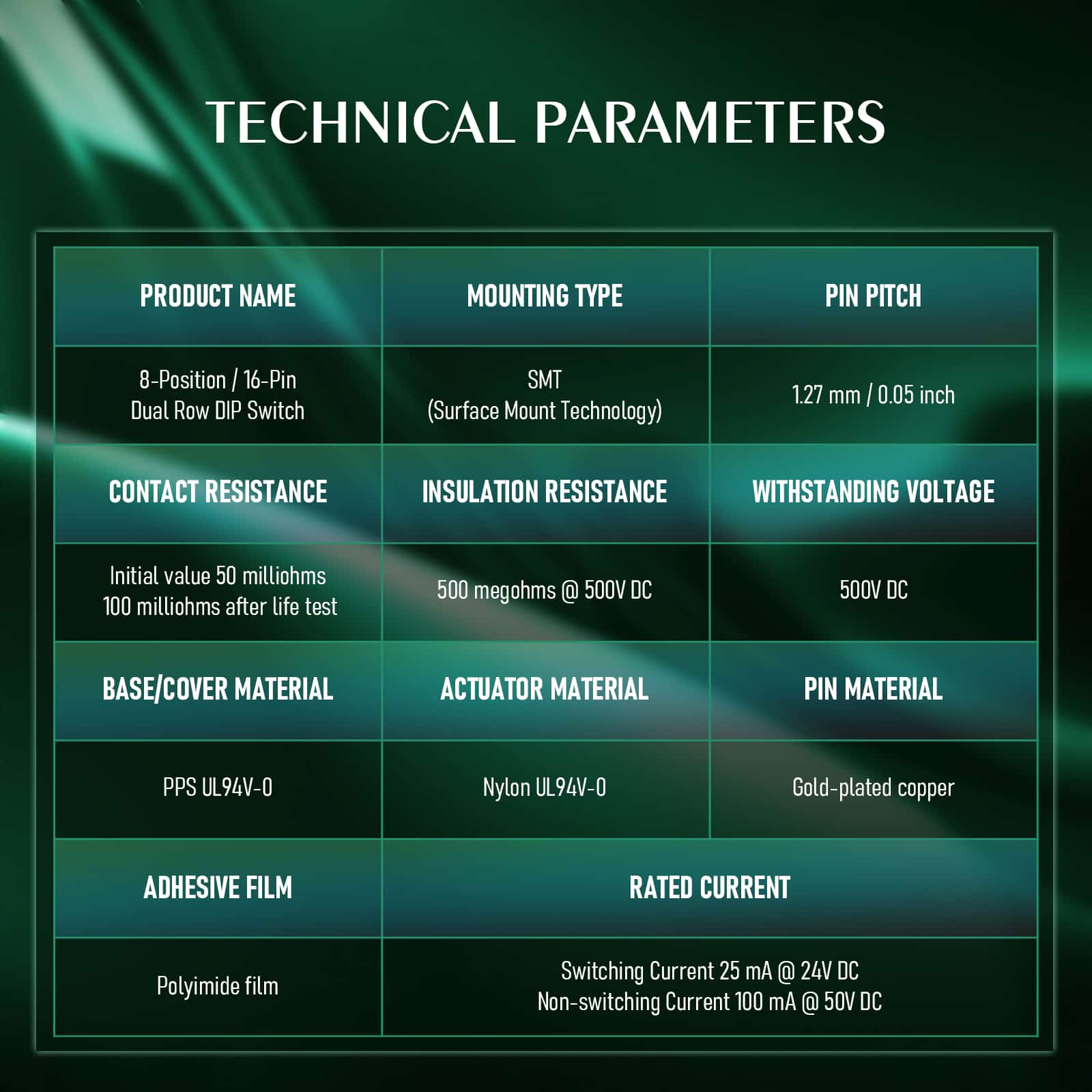

SPECIFICATION
- Name: 8 Position / 16 Pin DIP Switch
- Type: SMT Patch

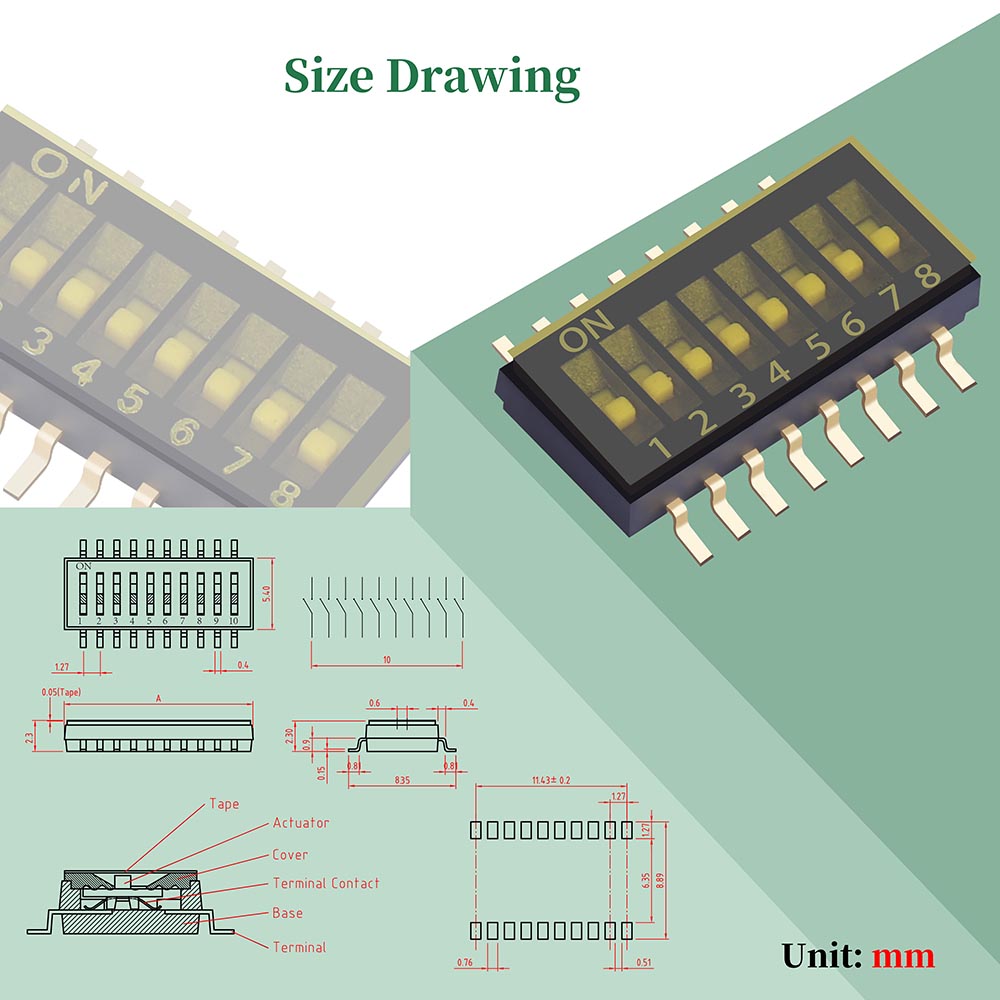

- Pitch: 1.27 mm / 0.05 inch

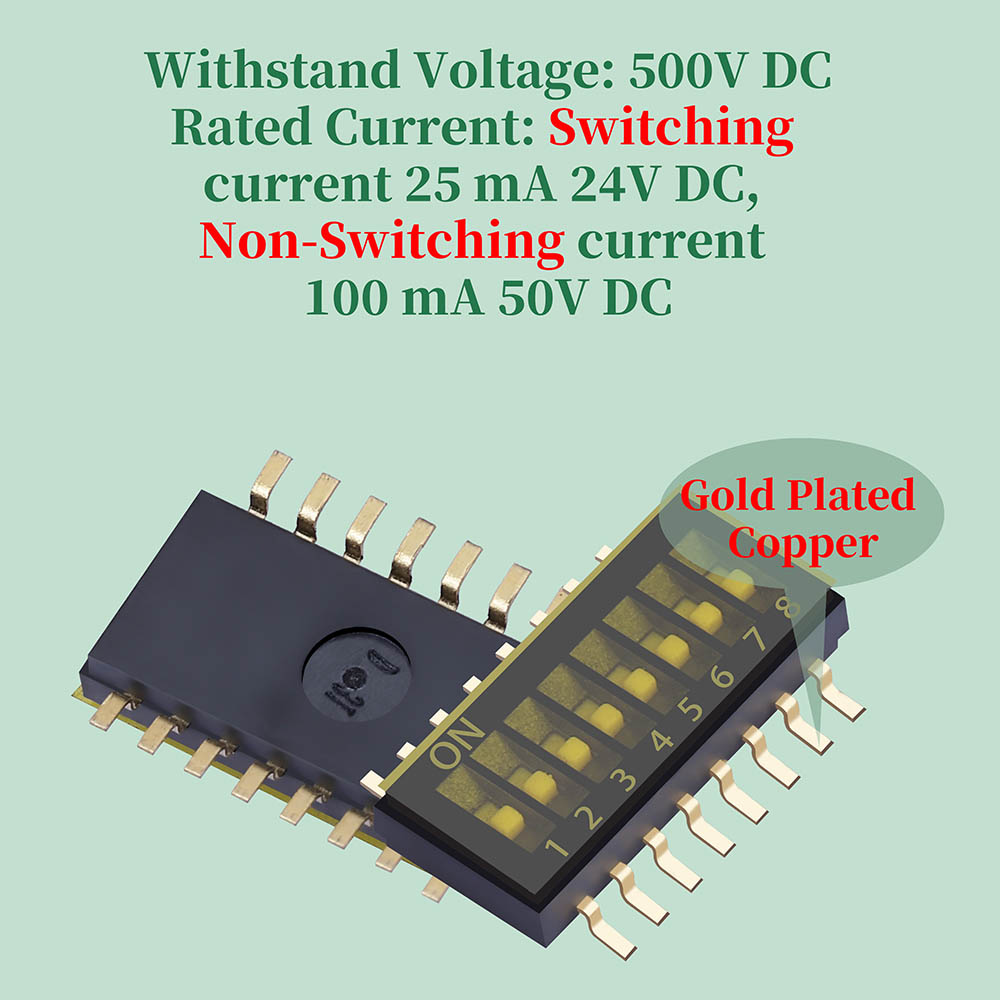

- Rated Current: Switching Current 25 mA 24V DC, Non-Switching Current 100 mA 50V DC
- Contact Resistance: 50 Milliohms at Initial Value, 100 Milliohms After Life Test
- Insulation Resistance: 500 Megohms / 500V DC
- Withstand Voltage: 500V DC

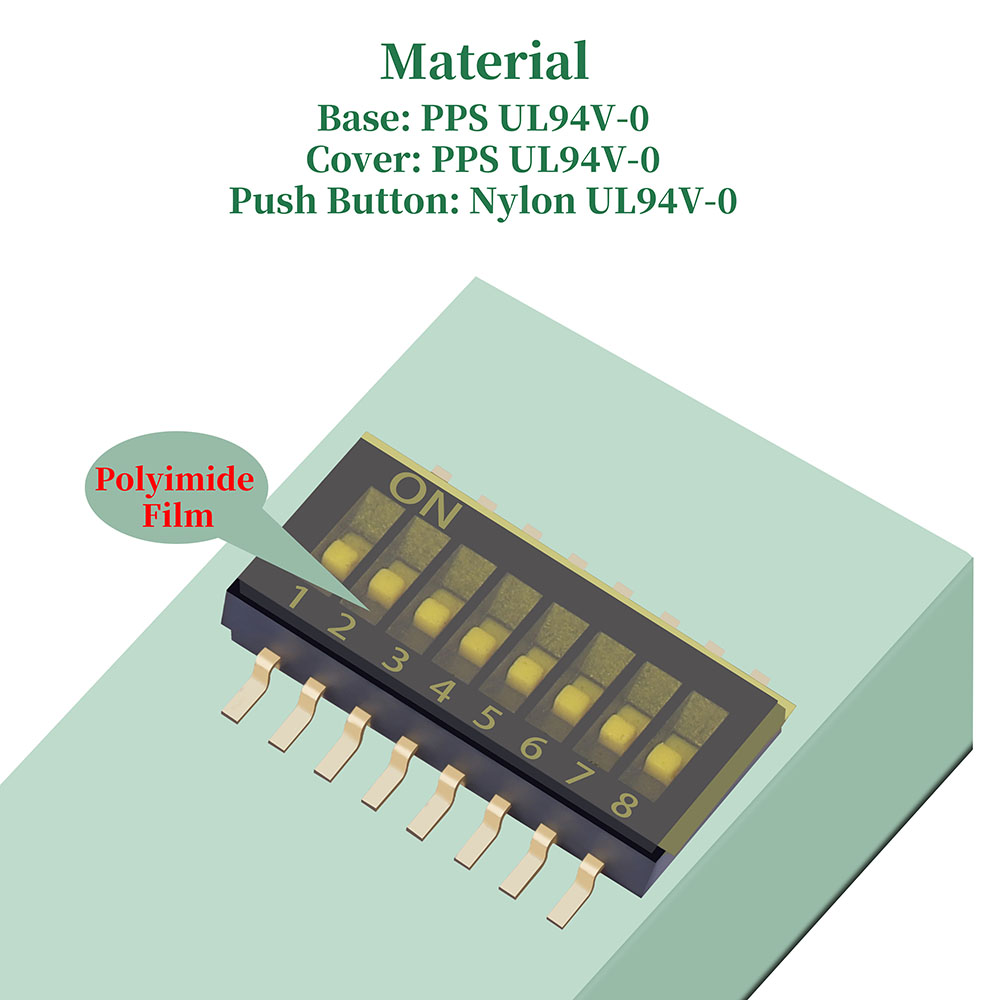

- Base Material: PPS UL94V-0
- Cover Material: PPS UL94V-0
- Push Button Material (Actuator): Nylon UL94V-0
- Pin Material: Gold Plated Copper
- Attachment Film: Polyimide Film
