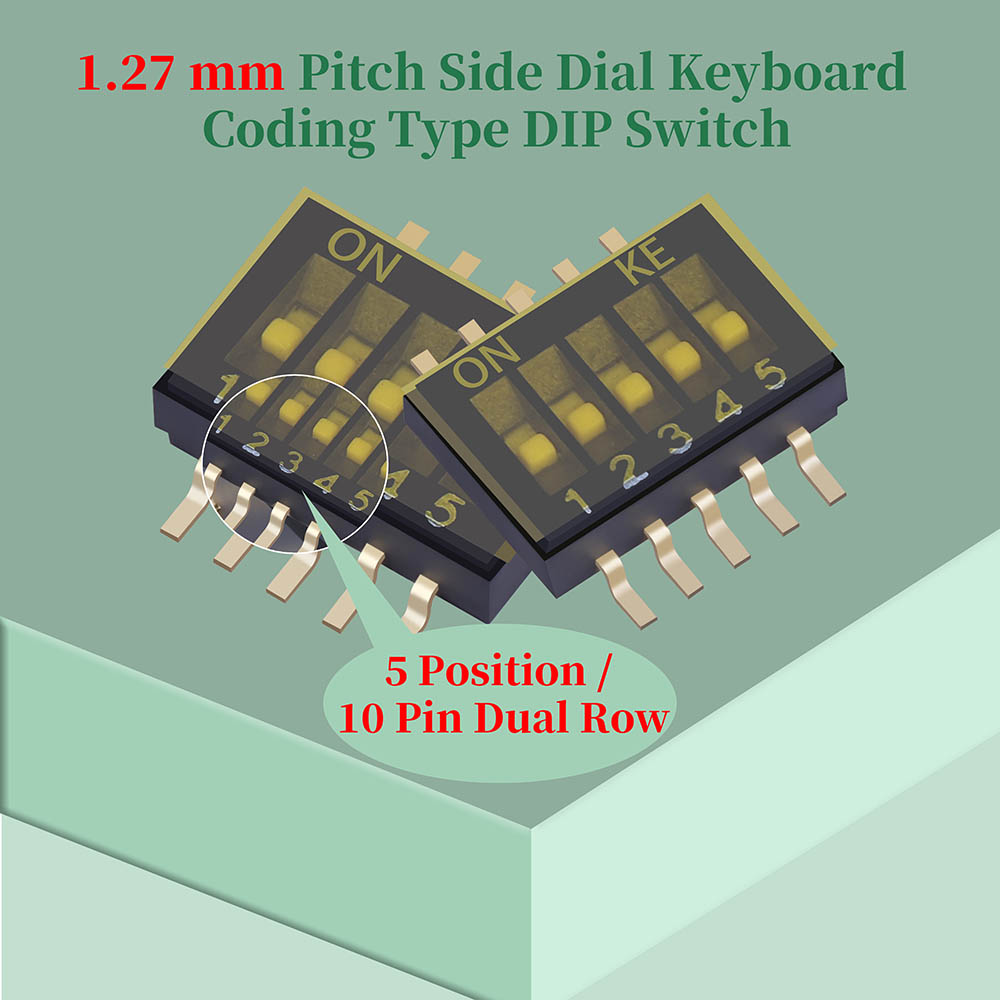

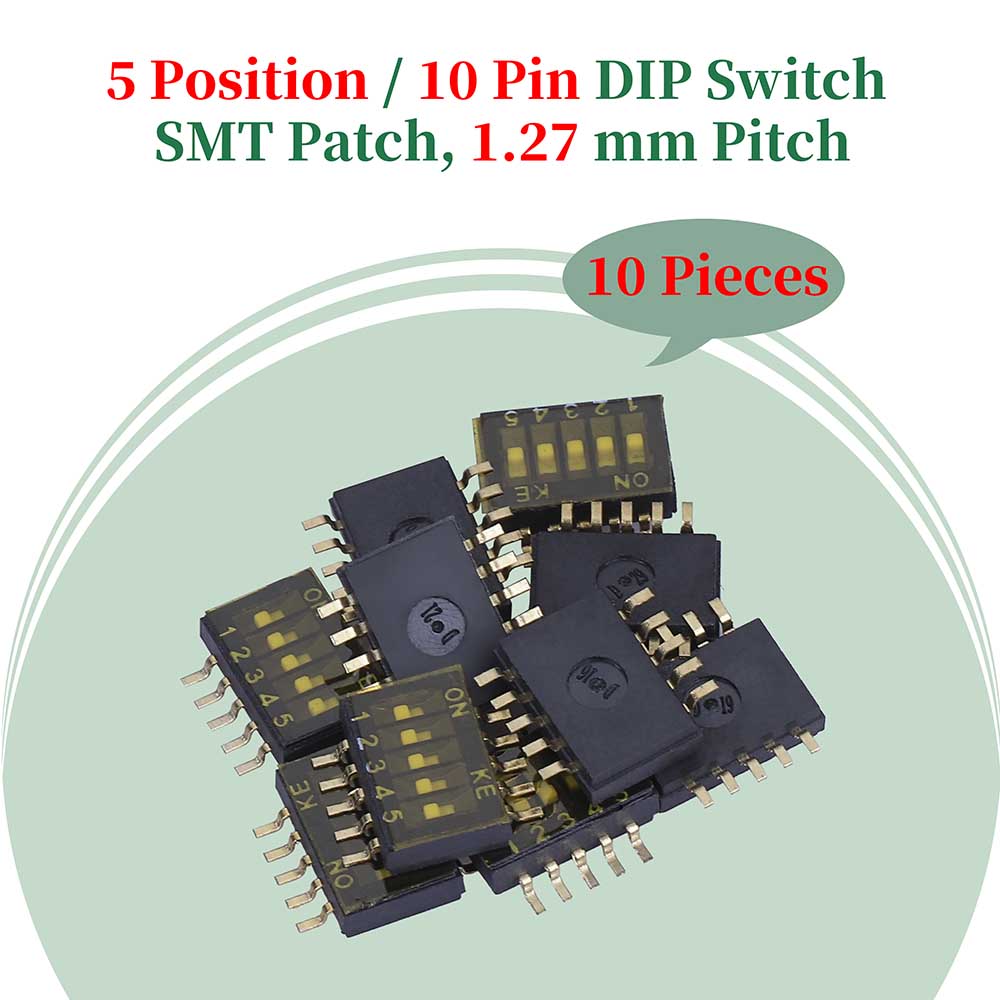

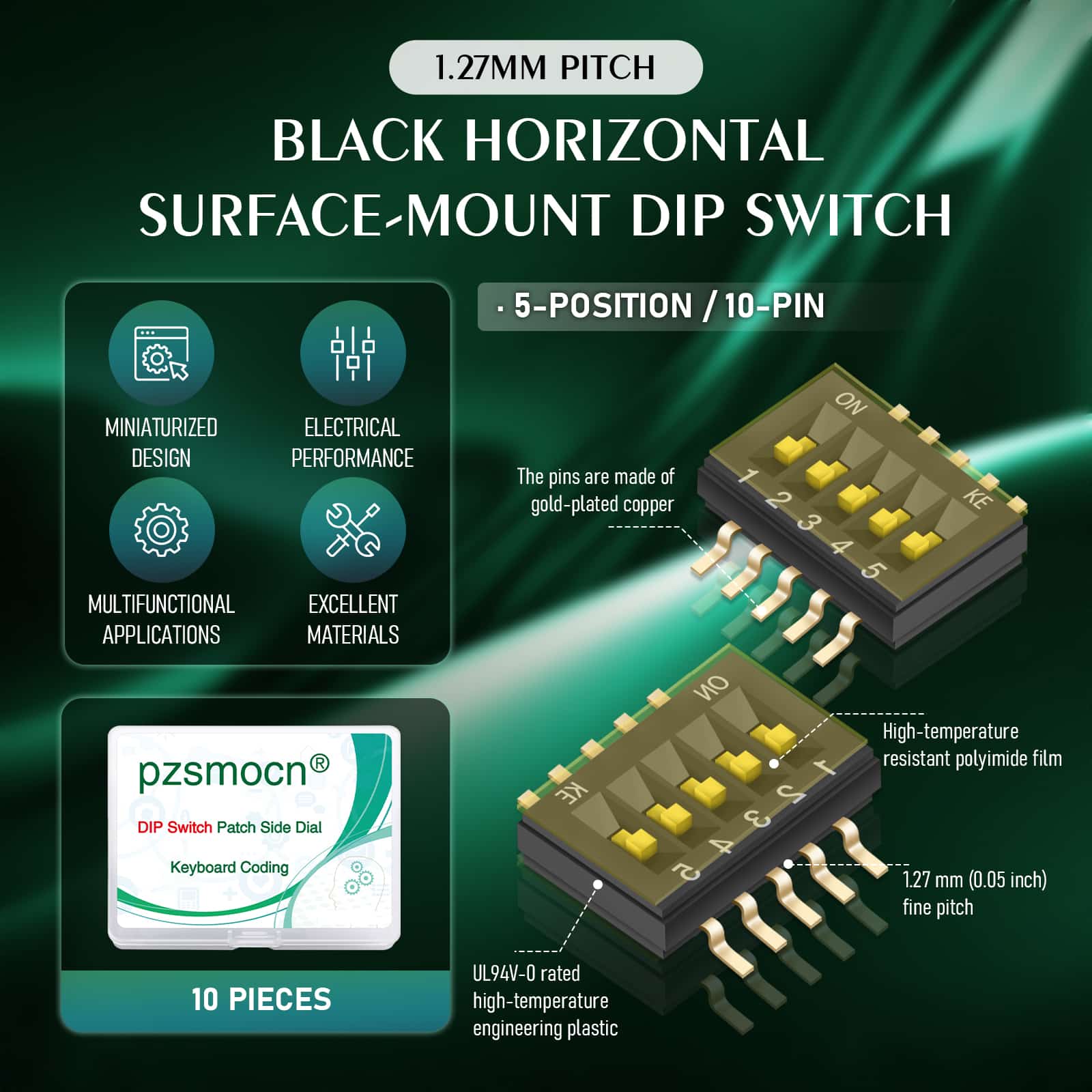

Dual Row SMT Patch DIP Switch 1.27 mm Pitch 5 Position / 10 Pin
6
.29
10+
5
.98
Save 5%
50+
5
.72
Save 9%
100+
5
.54
Save 12%
200+
5
.35
Save 15%
500+
5
.03
Save 20%
Product details

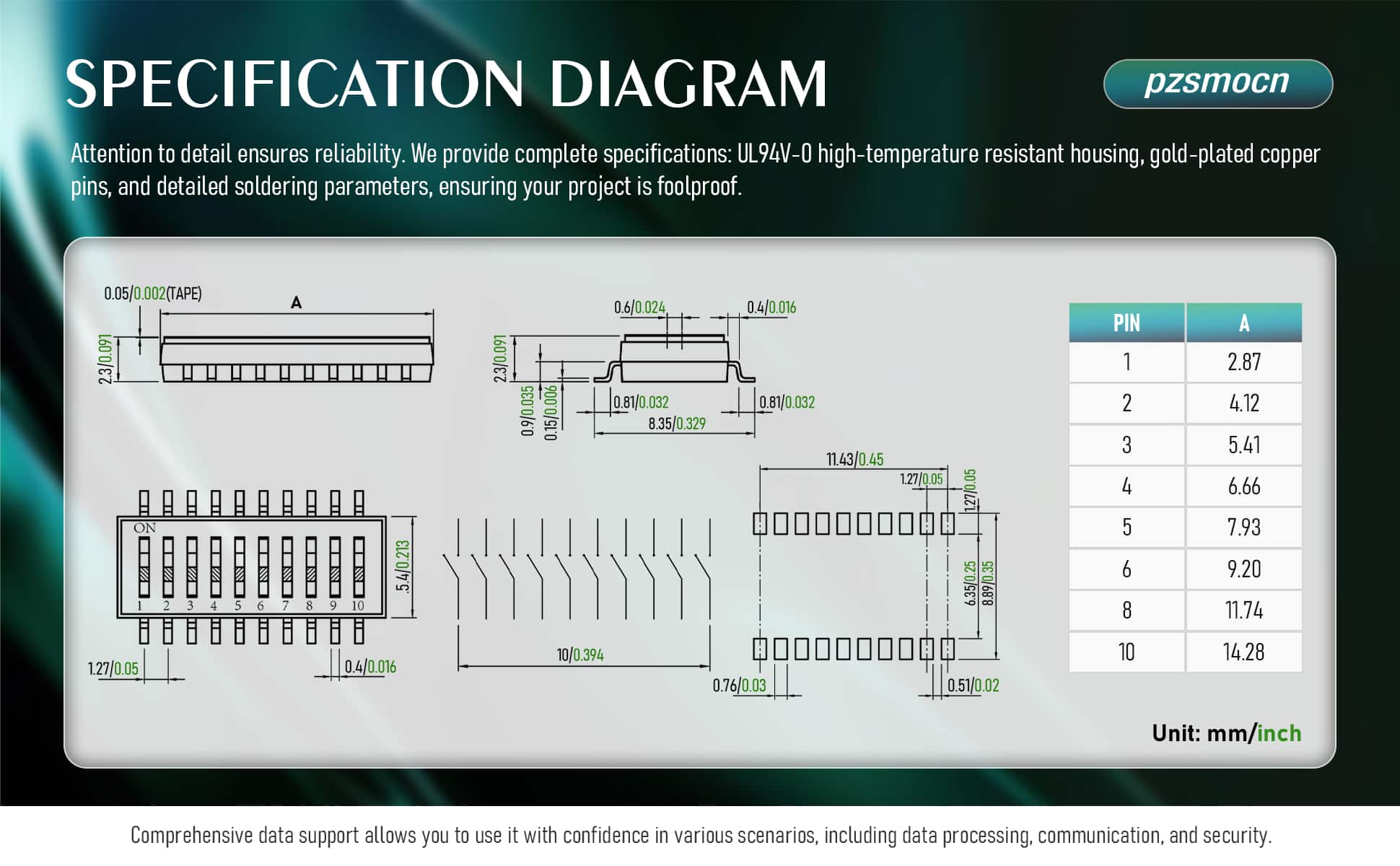

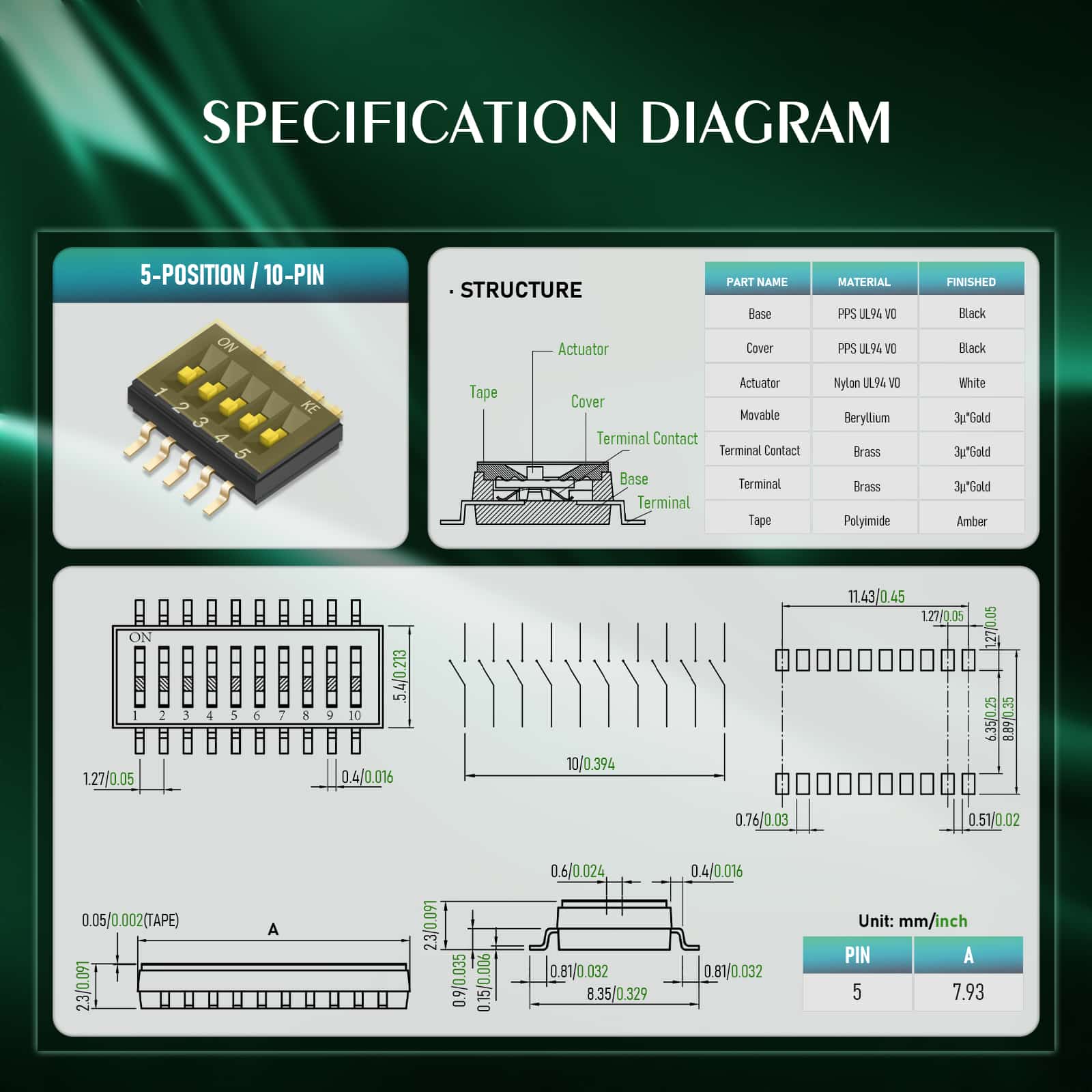

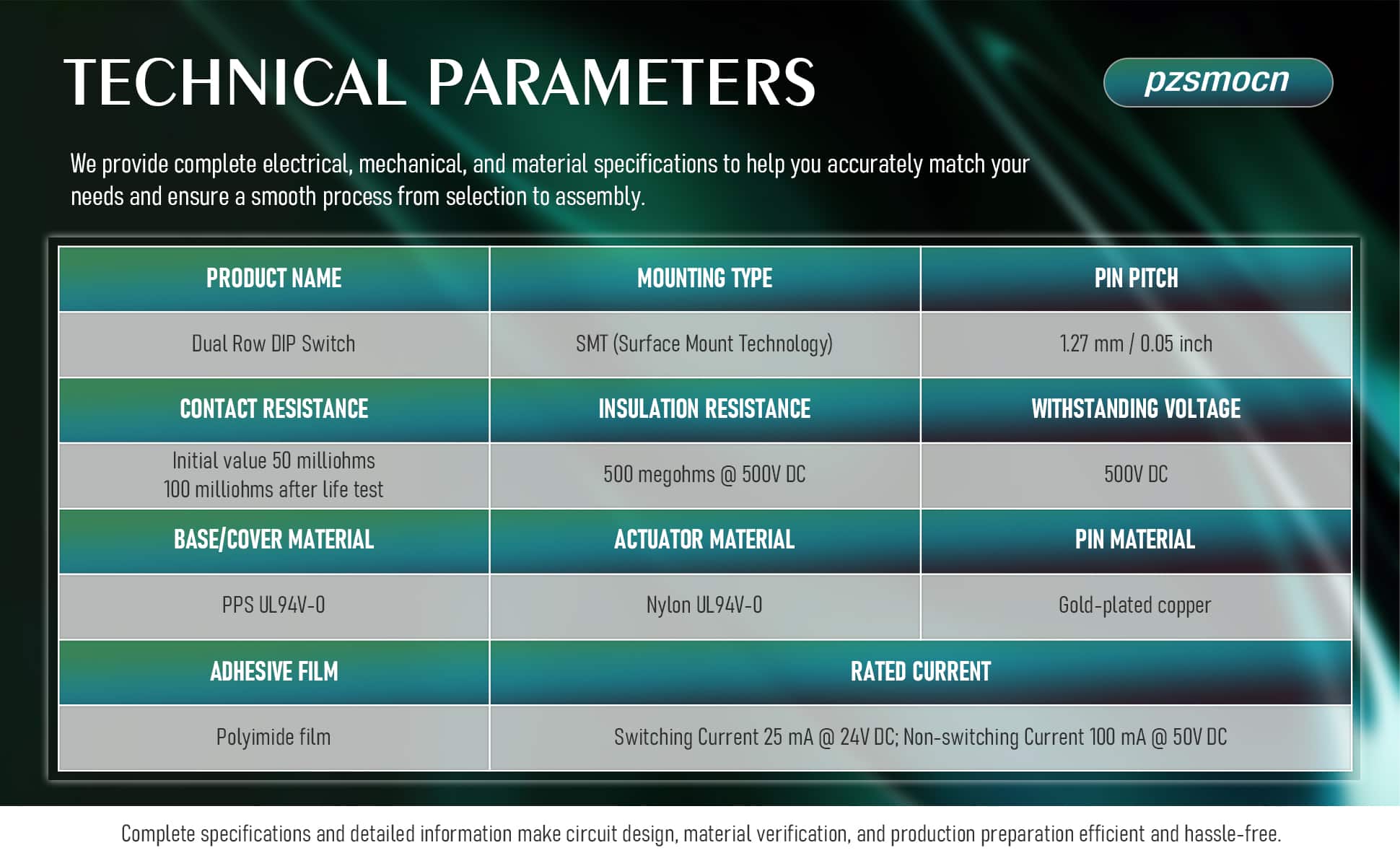

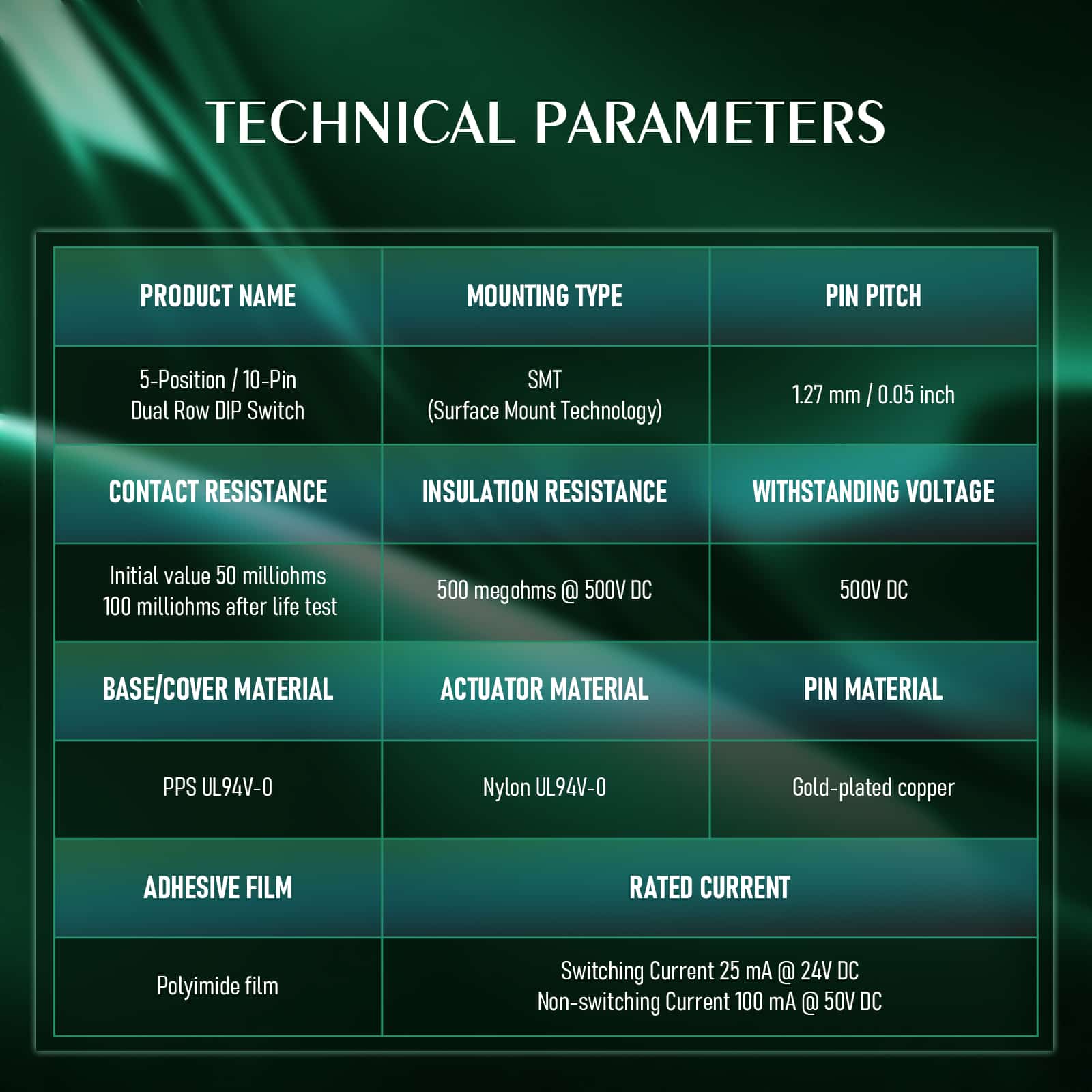

SPECIFICATION
- Name: 5 Position / 10 Pin DIP Switch
- Type: SMT Patch
- Pitch: 1.27 mm / 0.05 inch

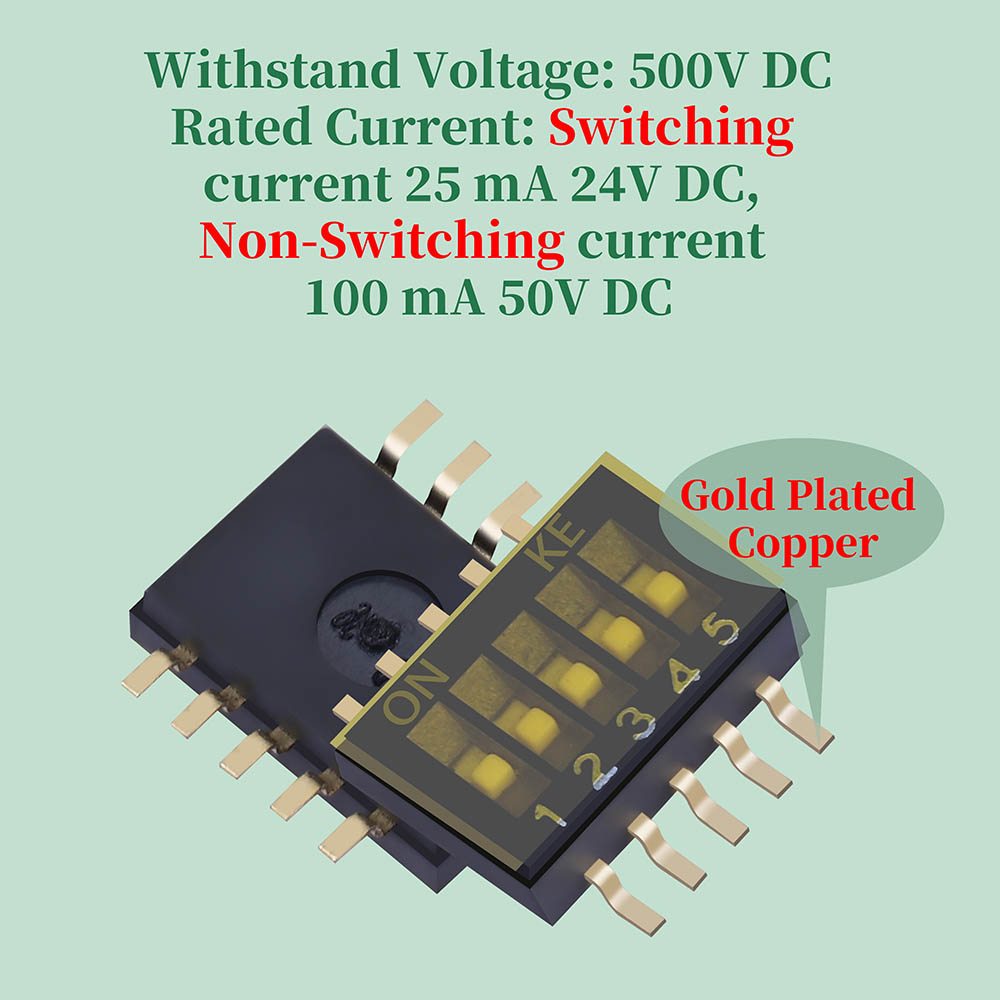

- Rated Current: Switching Current 25 mA 24V DC, Non-Switching Current 100 mA 50V DC
- Contact Resistance: 50 Milliohms at Initial Value, 100 Milliohms After Life Test
- Insulation Resistance: 500 Megohms / 500V DC
- Withstand Voltage: 500V DC

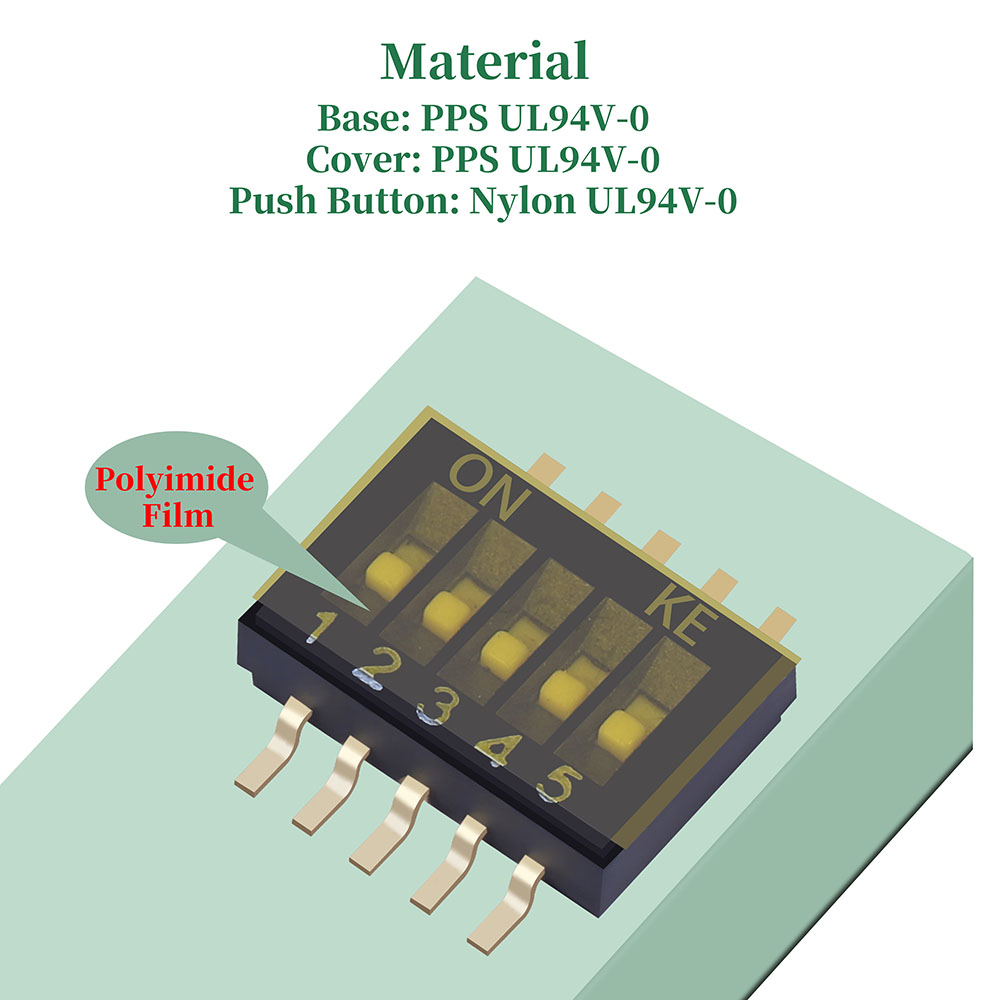

- Base Material: PPS UL94V-0
- Cover Material: PPS UL94V-0
- Push Button Material (Actuator): Nylon UL94V-0
- Pin Material: Gold Plated Copper
- Attachment Film: Polyimide Film
