CQR-JC2.54CL-C

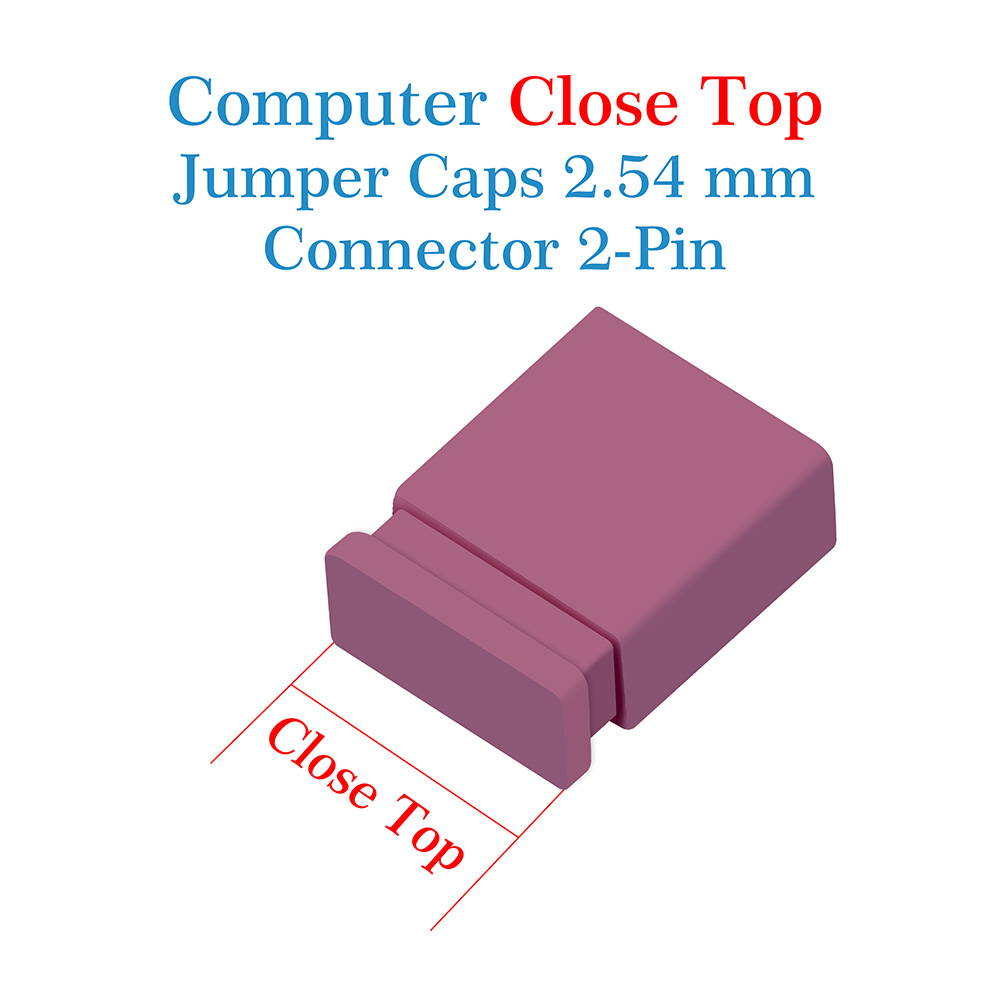

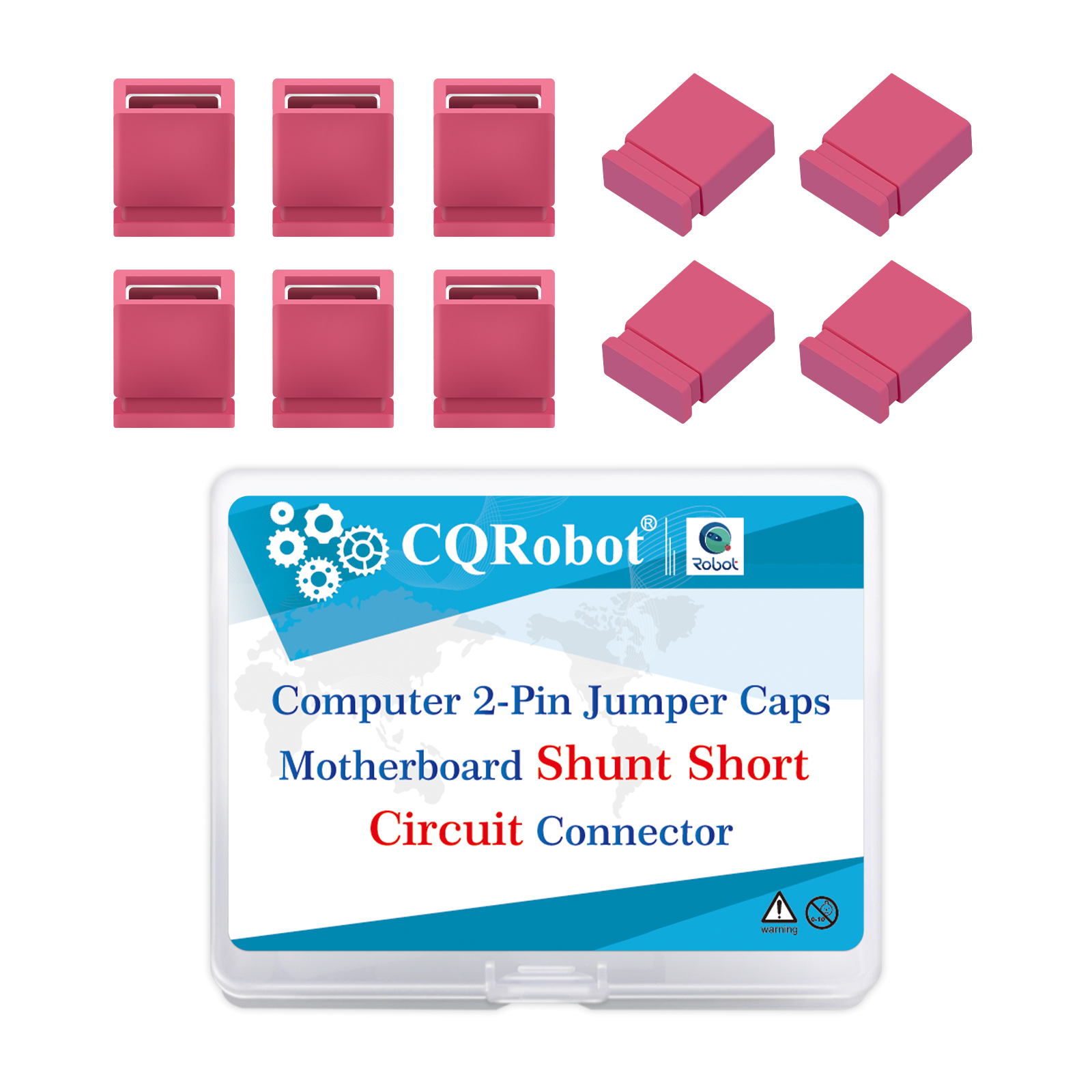

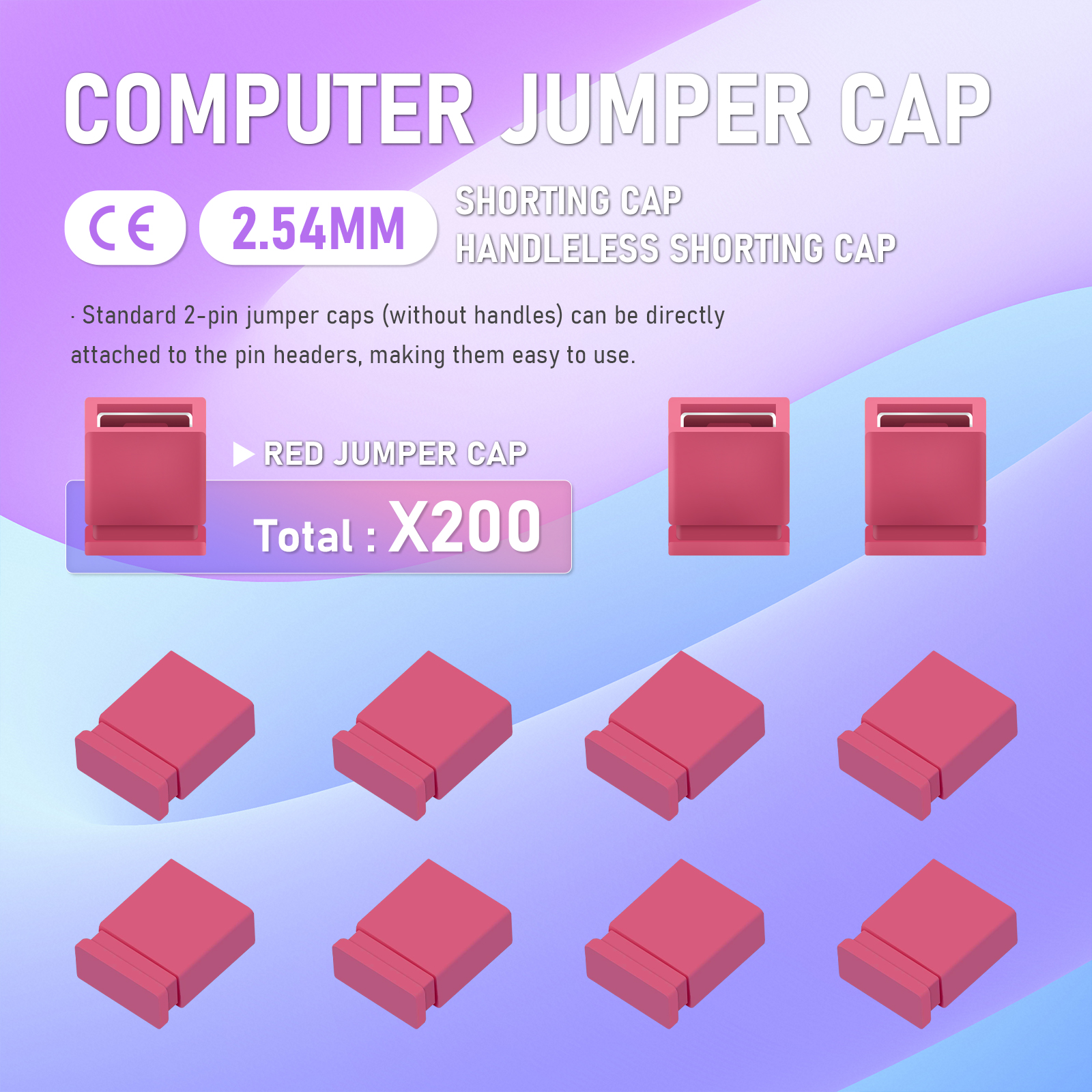

Standard Computer Jumper Caps Header Pin Shunt Short Circuit 2-Pin Connector Close Top 2.54mm-Red
SKU
CQR-JC2.54CL-C
Part No.
CQR-JC2.54CL-C
Brand
CQRobot
3
.99
Quantity
In Stock
Share:
10+
3
.79
Save 5%
50+
3
.63
Save 9%
100+
3
.51
Save 12%
200+
3
.39
Save 15%
500+
3
.19
Save 20%
Related Products:

Product details

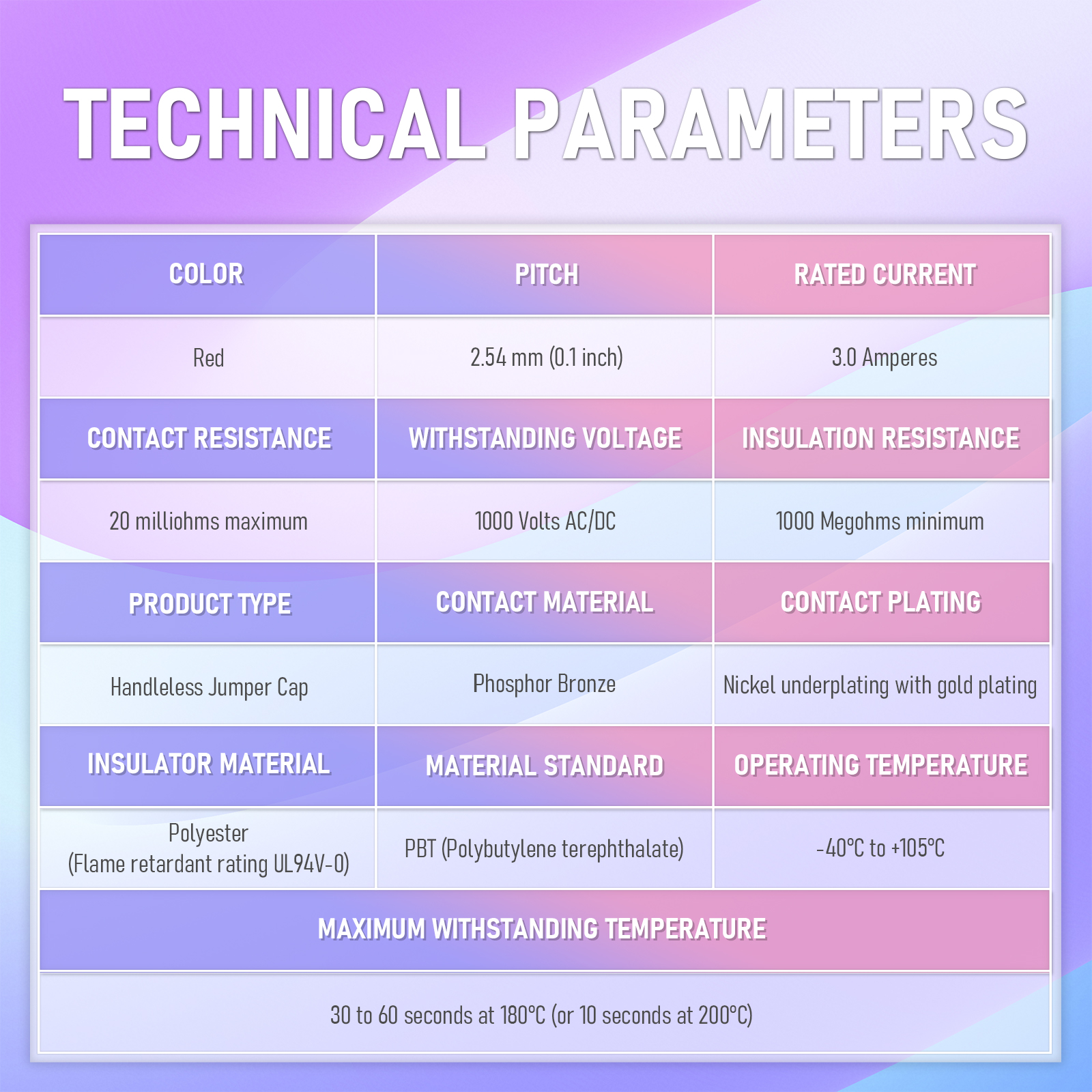

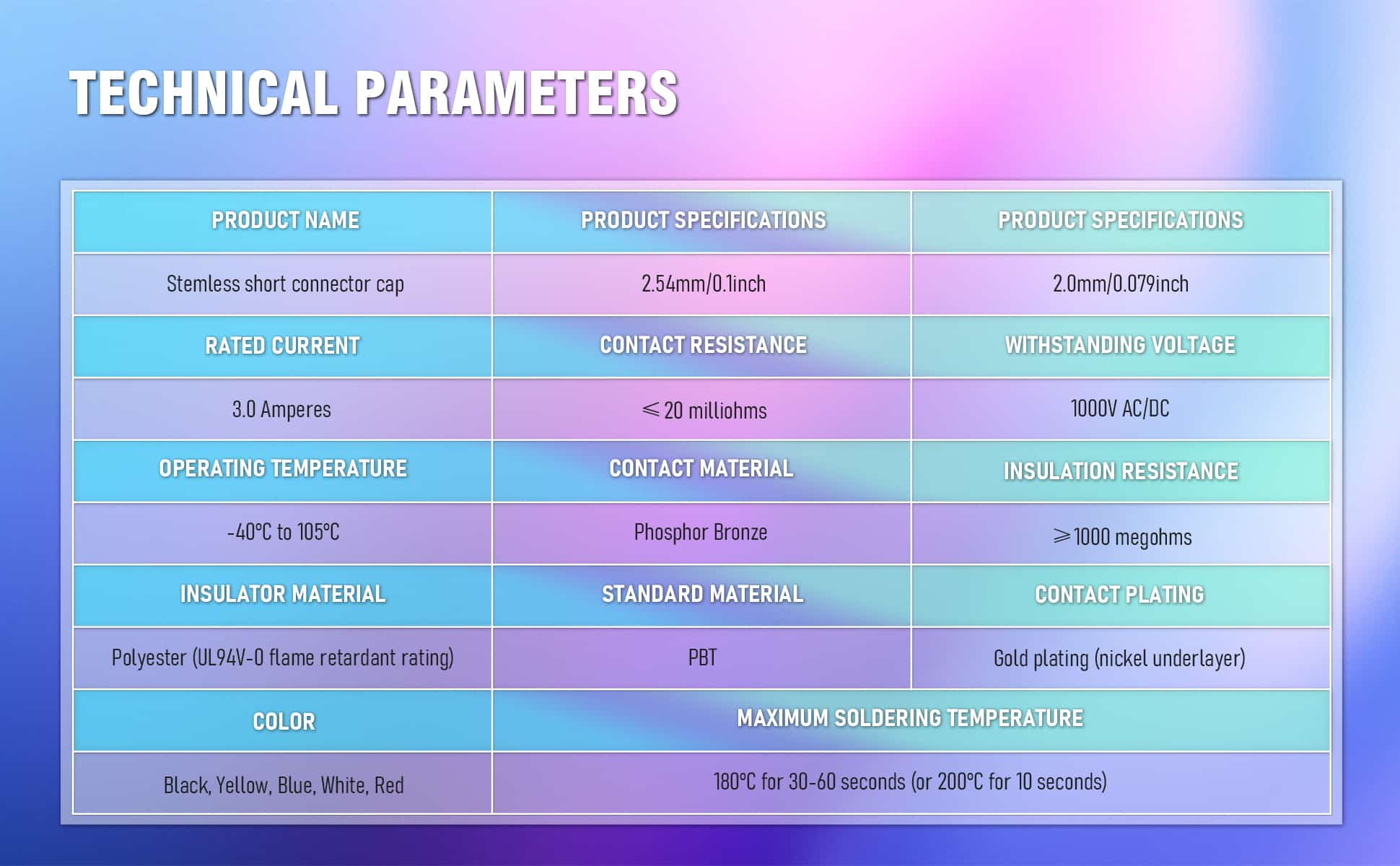

SPECIFICATION

  • Color: Red

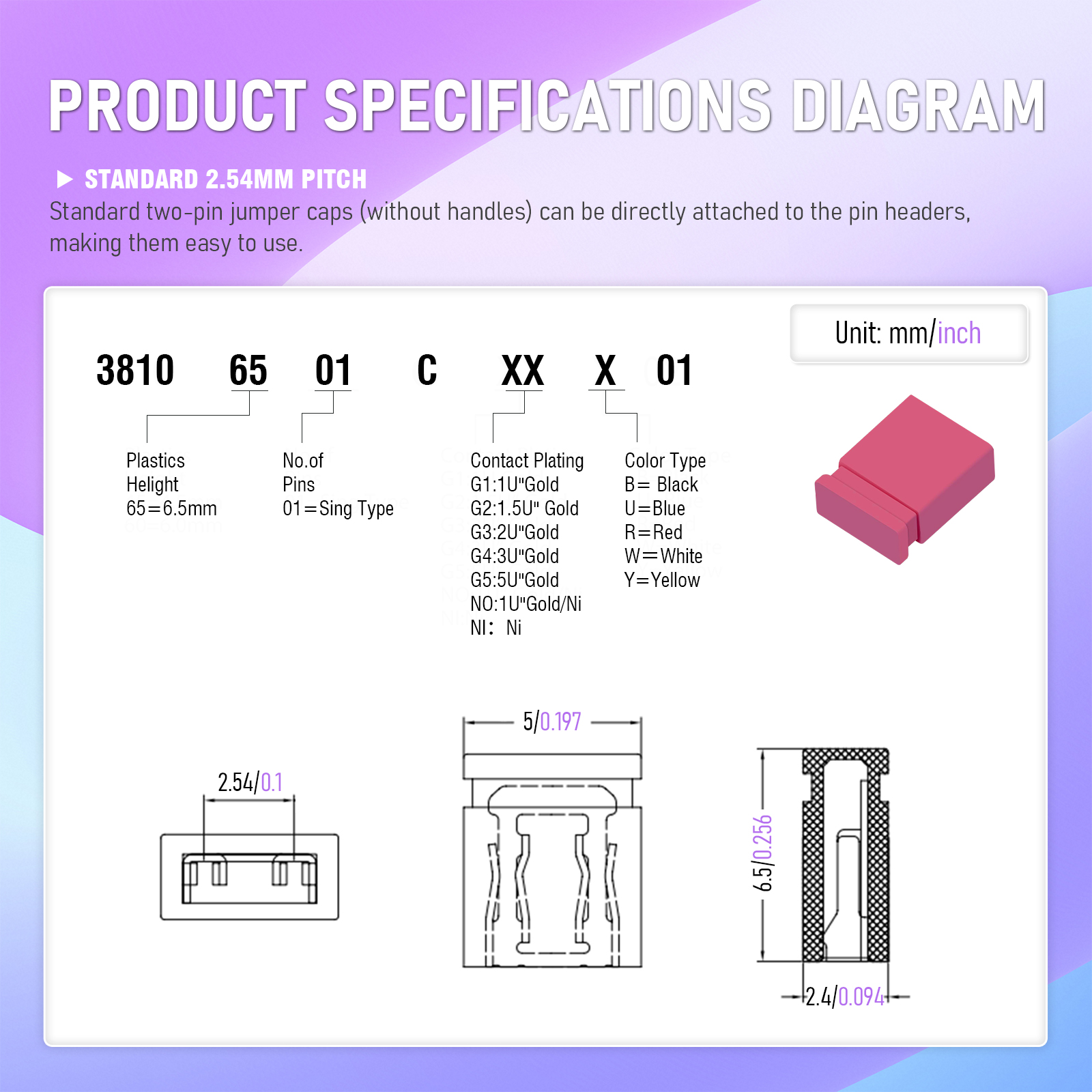

  • Pitch: 2.54mm (0.1 inches)

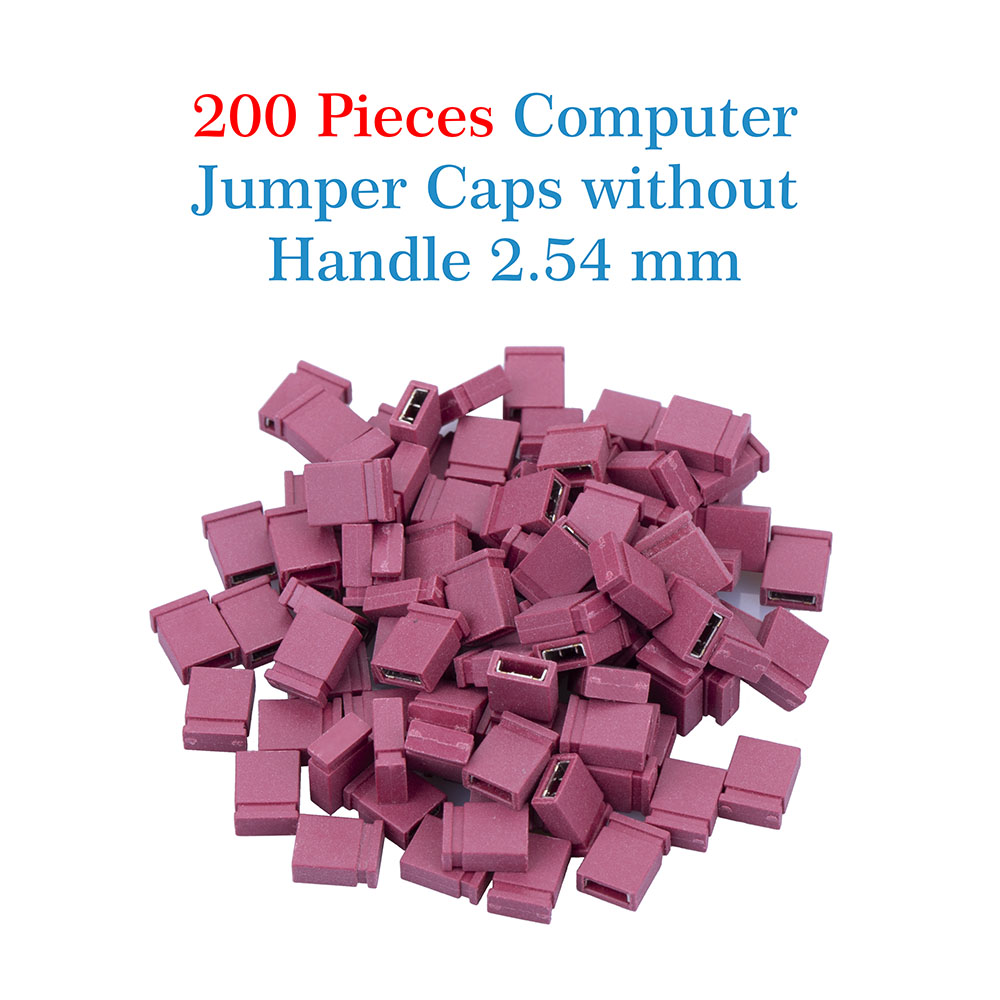

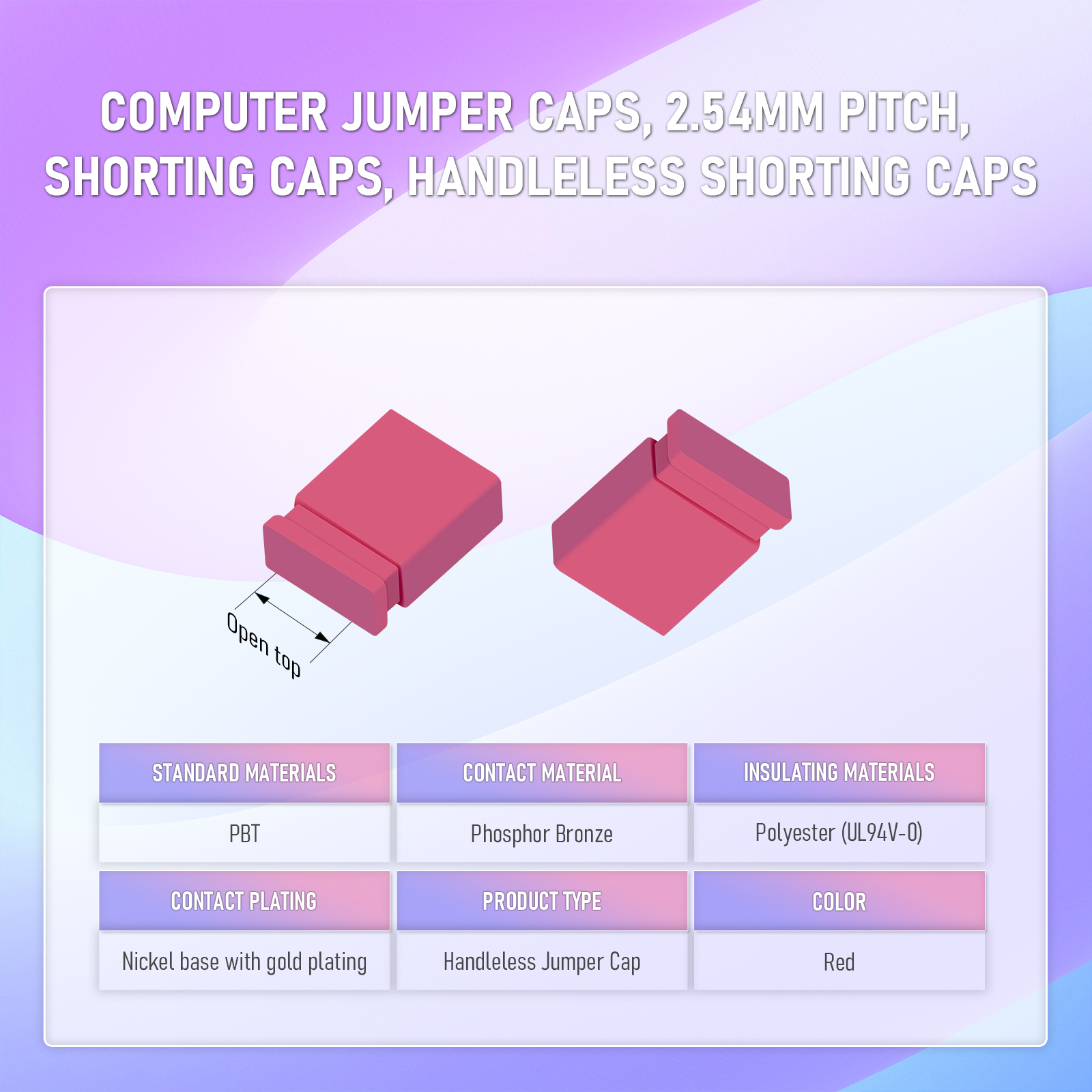

  • Product Type: Jumper Cap without Handle

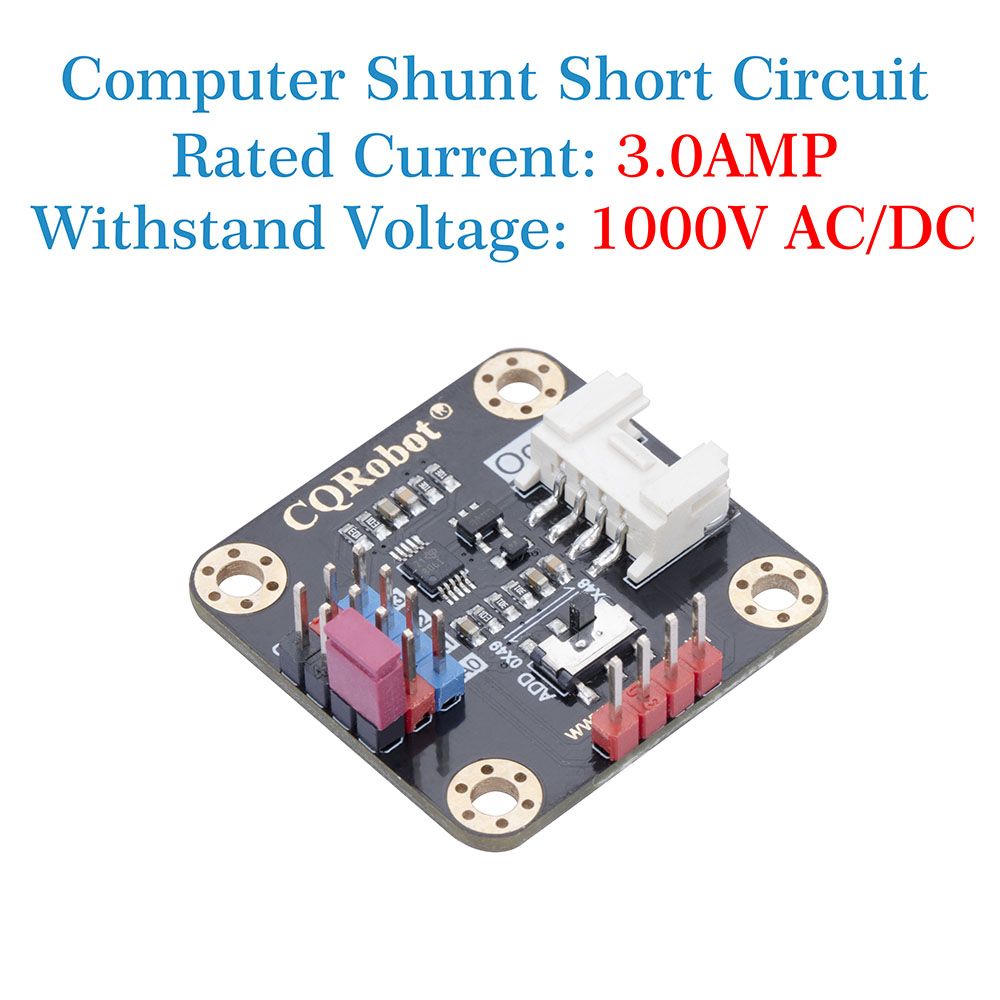

  • Rated Current: 3.0AMP
  • Contact Resistance: 20 Milliohms Max
  • Withstand Voltage: 1000V AC/DC
  • Insulation Resistance: 1000 Megohm Min

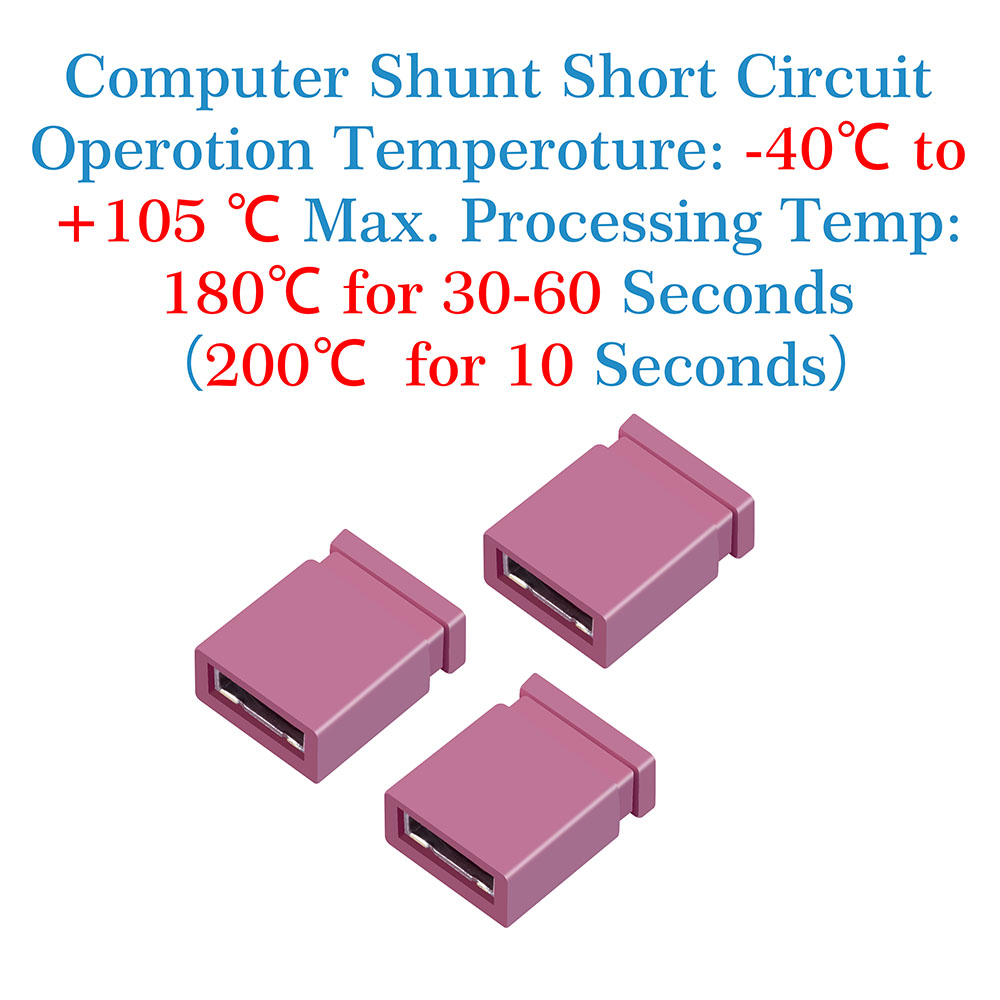

  • Operotion Temperoture: -40 Degree Celsius to +105 Degree Celsius
  • Contact Moteriol: Phosphor Bronze
  • Coneact Plating: Au Over Ni

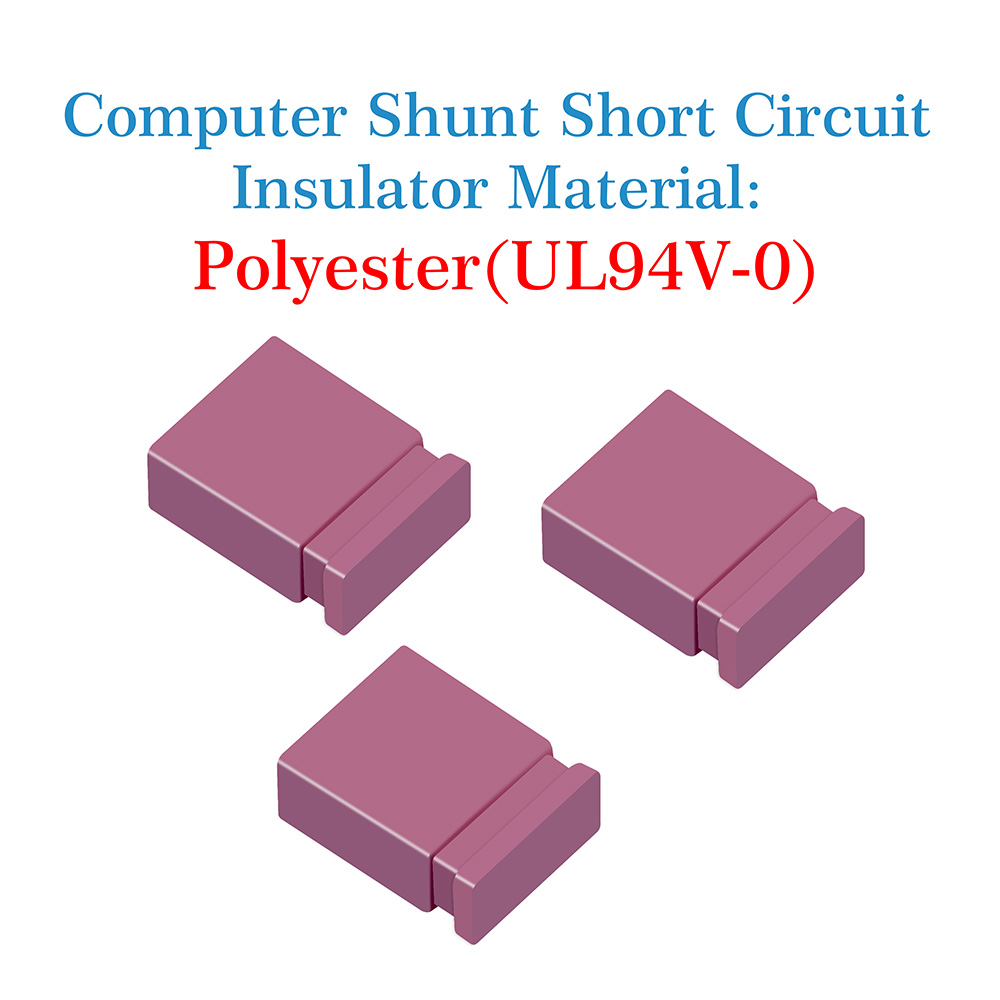

  • Insulator Material: Polyester(UL94V-0)
  • Standard: PBT
  • Max.Processing Temp: 180 Degree Celsius for 30 Seconds to 60 Seconds (200 Degree Celsius for 10 Seconds)

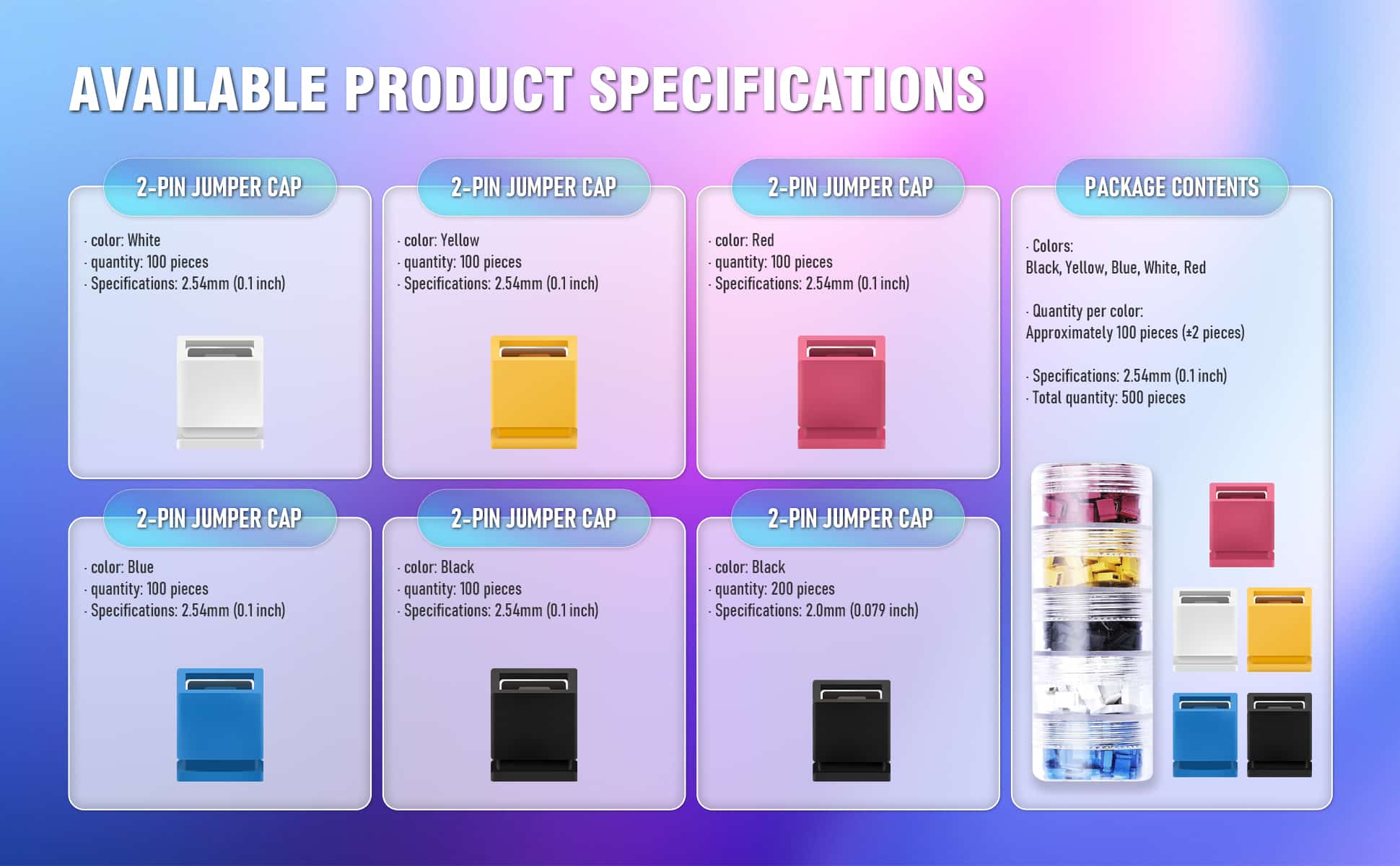

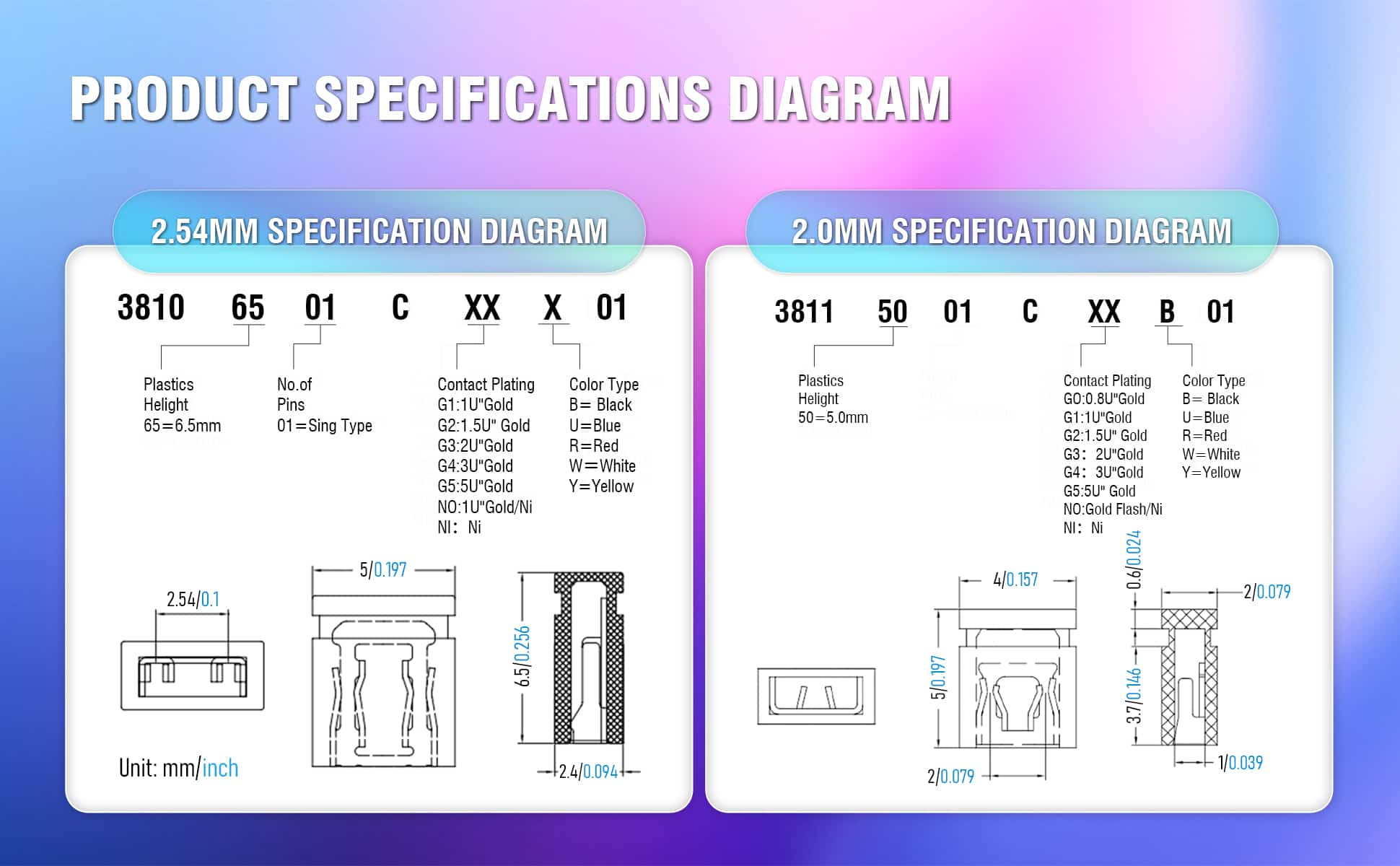

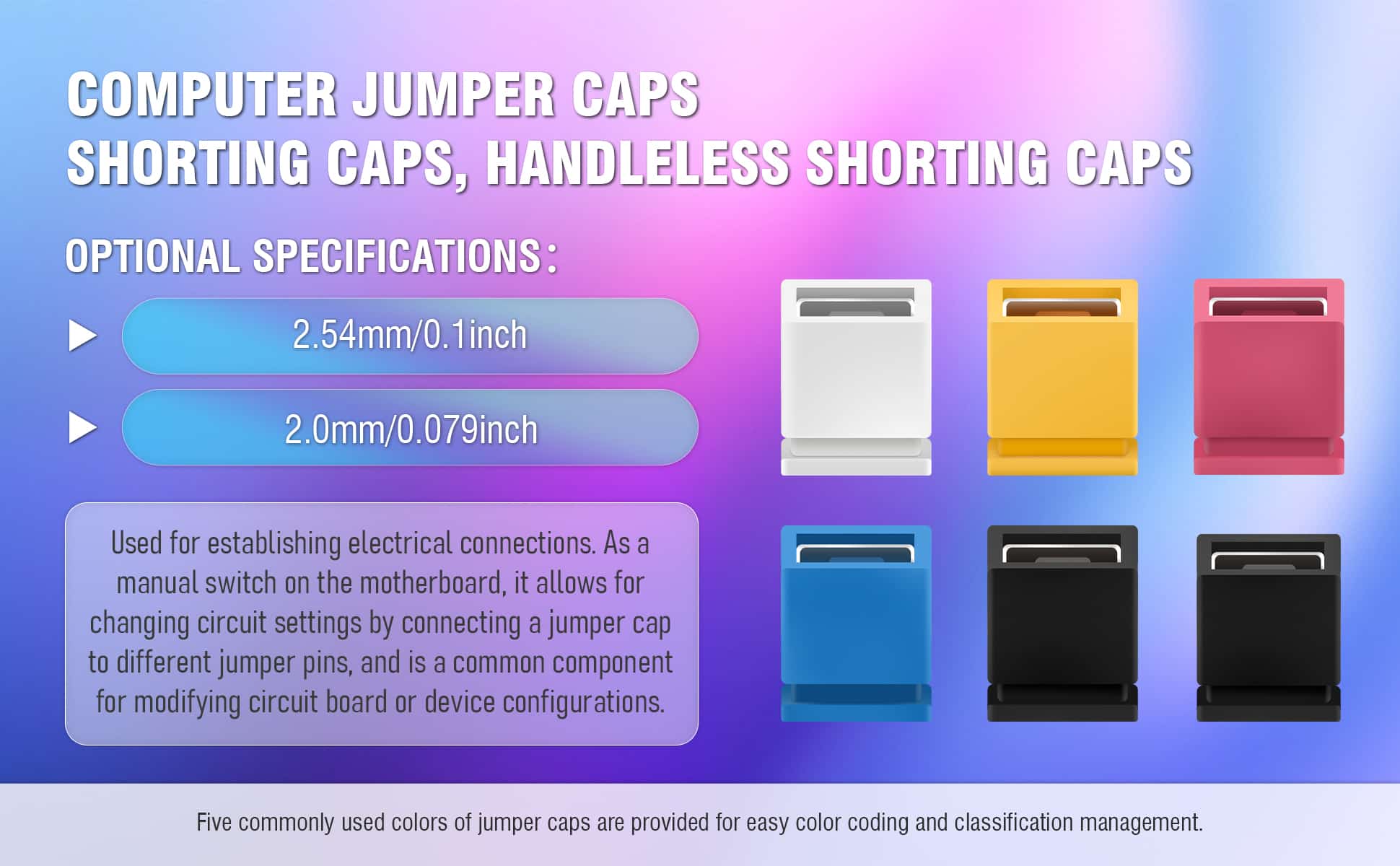

Closed-top Jumper-CQR-JC2.0CL-A-7.jpgClosed-top Jumper-CQR-JC2.0CL-A-8.jpgClosed-top Jumper-CQR-JC2.0CL-A-9.jpgClosed-top Jumper-CQR-JC2.0CL-A-10.jpgClosed-top Jumper-CQR-JC2.0CL-A-11.jpgClosed-top Jumper-CQR-JC2.0CL-A-12.jpg
