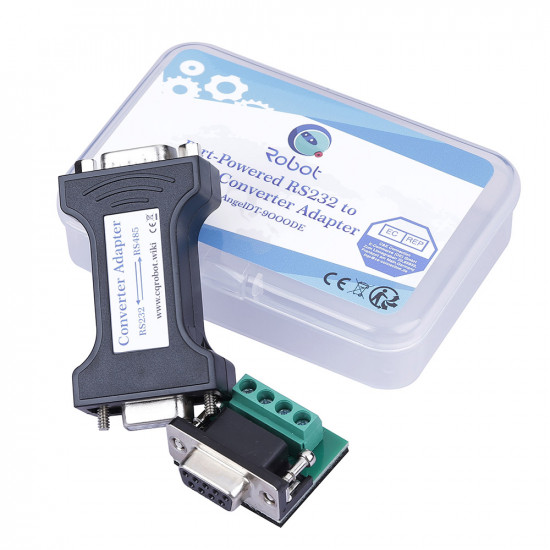

Passive RS232 to RS485 Converter Adapter

Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
Passive RS232 to RS485 Converter Adapter
$7.99
Ex Tax: $7.99
10 or more $7.39
50 or more $6.50
100 or more $5.99

The AngelDT-9000DE converter is compatible with RS-232 and RS-485 standards. It converts the RS-232 communication interface into a two-wire half-duplex RS-485 communication interface. It has a built-in fast transient voltage suppression protector TVS and a unique internal use The "RS-232 charge pump" drives the entire circuit to work. The circuit is equipped with a zero-delay automatic transceiver conversion device. The anti-collision I/O circuit automatically controls the direction of data flow, which ensures that the program written in RS-232 mode can run safely in RS-485 mode without modification. At the same time, both ends of the signal support two-way transmission. Its internal interface still has voltage stabilization protection, electrostatic protection, and strong anti-interference characteristics. All components are produced on an automatic placement assembly line, which enhances the reliability and stability of the product.

Wikihttp://www.cqrobot.wiki/index.php/RS232_to_RS485_Converter_Adapter_SKU:_AngelDT-9000DE

SPECIFICATION

  • Conform to: CE Standard
  • Power: Serial power stealing without external power supply;
  • Operating Current: Less than 10mA;
  • Communication Rate: 300bps to 115.2Kbps;
  • Communication Distance: RS485 port(1200m), RS-232 port(5m);
  • Number of Connectable Nodes: 10 nodes;
  • Protection Level: 600W Surge Voltage Protection and 15KV Static Electricity Protection;
  • Operating Temperature: -20 Degree Celsius to +70 Degree Celsius;
  • Relative Humidity: 5% to 95%;
  • Mea: 64mm * 33mm * 17mm;
  • Weight: 35g (Product Net Weight).

DISTRIBUTION LIST

1 * RS232 to RS485 Converter

1 * Terminal Board

1 * Instructions for use
