Raspberry Pi 4 X5500 Expansion Board.

Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
Raspberry Pi 4 X5500 Expansion Board.
$55.99
Ex Tax: $55.99
  • Stock: In Stock
  • Brand: Pzsmocn
  • Model: PZSSMPX5500
  • Weight: 200.00g
  • SKU: PZSSMPX5500
  • ASIN: B0B8SN4K2P

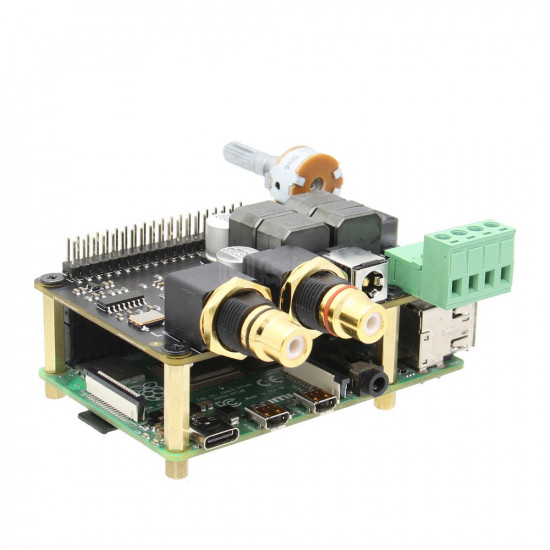

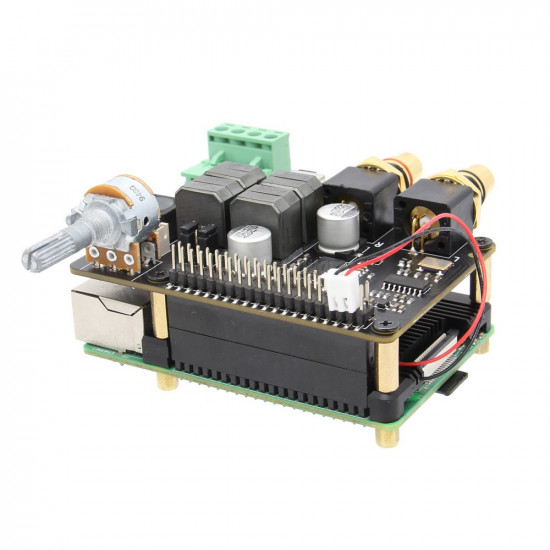

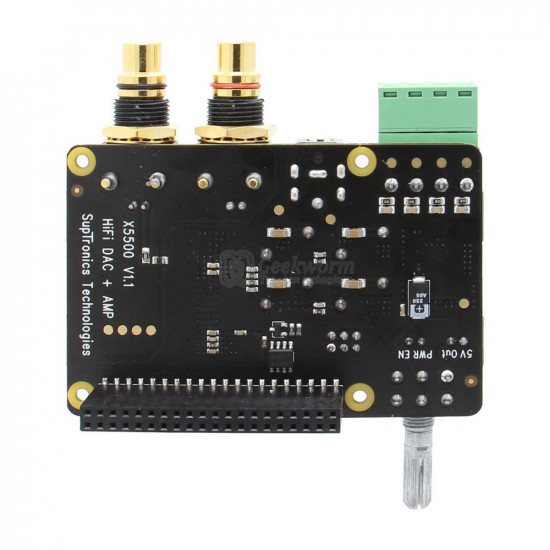

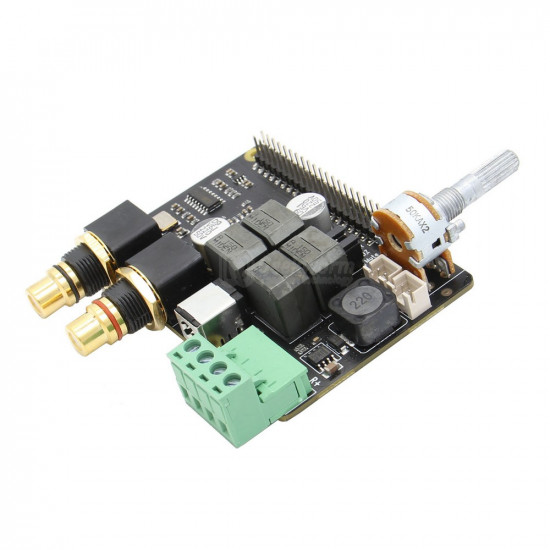

X5500 HiFi DAC + AMP Audio Expansion Board, For Raspberry Pi 1 Model B+ / 2 Model B / 3 Model B / 3 Model B+ / 4 Model B, Reserved Raspberry Pi GPIO 40-pin header, Pop-noise can be improved by enabling GPIO control, AMP can be enabled / disabled with jumper link.

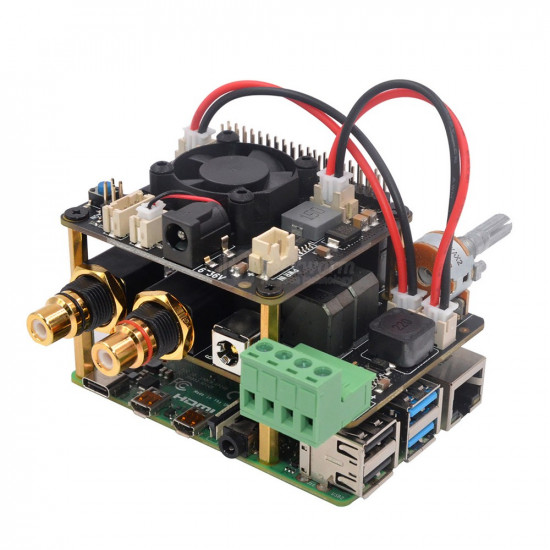

Compatible with X710 for intelligent power mgmt and cooling your amplifier.

Compatible with X857/X856/X855 for mSATA SSD storage board, compatible with X872 for M.2 NVME SSD board, compatible with X862 for M.2 SATA SSD board.

SPECIFICATION

  • Power supply: 6-26Vdc, recommended ≥3A
  • Using GPIO: LRCK - IO19, BCK - IO18, DATA - IO21, IR - IO26, AMP mute - IO22
  • RCA analog audio output level: 2V RMS
  • Amplifier maximum output power: 2 x 30W under 4Ω line load at 24VDC
  • Resolution/Sampling Rate: Up to 24bit/192KHz (Raspberry Pi I2S)
  • PCB size: 85 * 57mm

【Operating System】

  • Moode Audio Player
  • OSMC
  • Openelec
  • Raspbian Jessie
  • Volumio
  • Pi Core Player

NOTE

  • Do not power the Raspberry Pi through the Raspberry Pi's 40-pin header and the Type-C or Micro USB socket at the same time

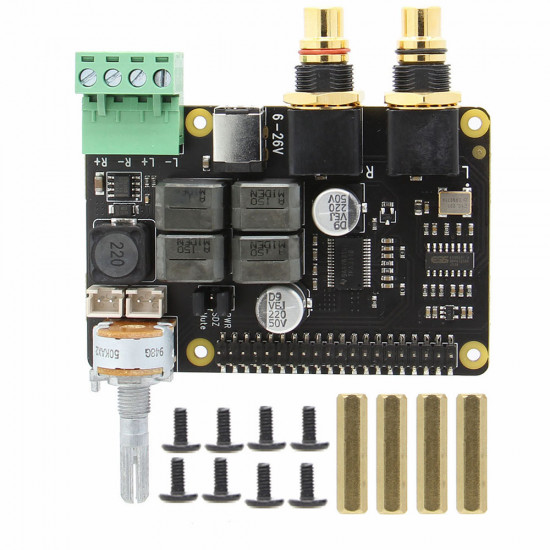

PACKING LIST

  • X5500 Expansion Board * 1
  • Screw Pack * 1
