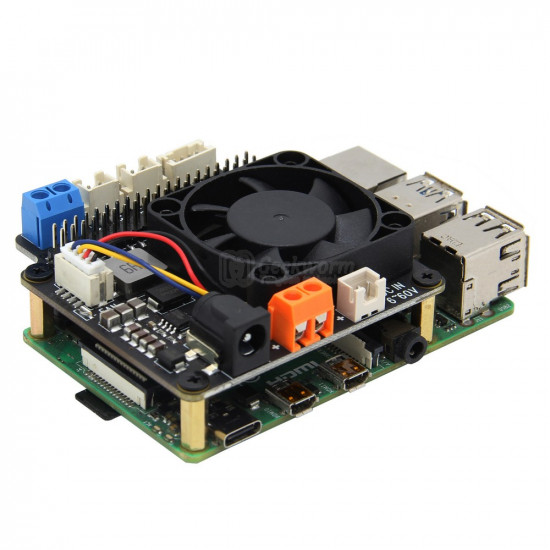

Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.

Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
Raspberry Pi 4 B Raspberry pi 4 Power Management Expansion Board X715 Compatible with Pi 4B Pi 3.
$34.99
Ex Tax: $34.99
  • Stock: In Stock
  • Brand: Pzsmocn
  • Model: PZSSMPX715
  • Weight: 200.00g
  • SKU: PZSSMPX715
  • ASIN: B0B8SLSWWW

The X715 is a power management expansion board for Works with all current models of the Raspberry Pi using a 40 pin header,with other Raspberry Pi accessory boards for enhanced applications.Fully compatible with X820 X850 X860 X870 X822 X852 X825 X828 X856.

It provides Max 5A of continuous output current over a wide 6V to 60V operating input range with excellent load and line regulation and a low noise PWM cooling fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments.

SPECIFICATION

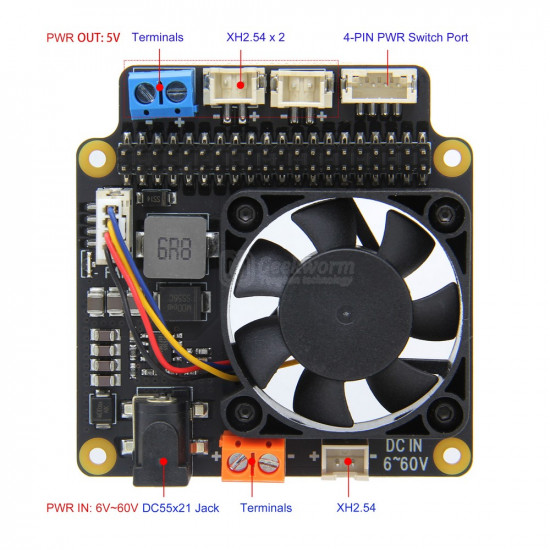

  • Power supply: 6 - 60Vdc≥2A
  • Output: 5V 5%, max 5A
  • DC power jack: 5.5*2.1mm, positive
  • Board size: 65 * 68mm

NOTICE

  • Only supports self-locking switch
  • Do not connect any device that requires 5V power supply to the XH2.54 Power Input interface
  • Do not supply power through the Raspberry Pi micro-usb or type-C port

PACKING LIST

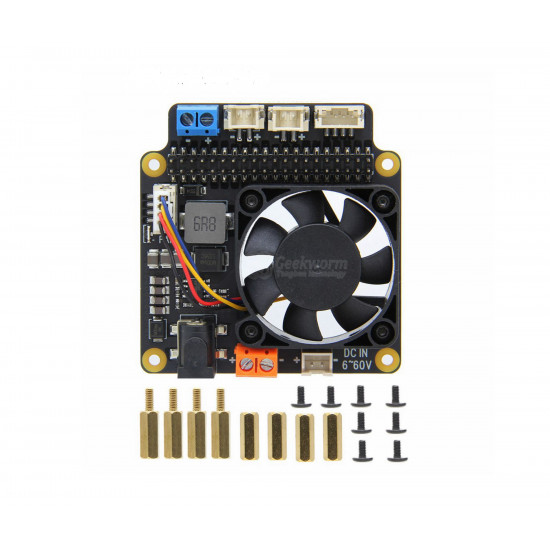

  • X715 Power Management Expansion Board * 1
  • Screw Pack * 1
