JST SH SMT 1.0mm Pitch 7 Pin JST Connector Kit
With the development of electronic products, a wide range of connectors exist in electronic devices. Currently, malfunctions due to bad connectors account for more than 37% of all device failures. JST connector plays the role of conducting electricity and connecting signals in electronic devices. Connectors facilitate the professional division of labor, the replacement of parts, troubleshooting and quick assembly. They are used in various devices due to their stronger and more reliable properties.
- Model: JST SH SMT 7 Pin
- Pitch: 1.0mm (0.039 inch)
- Current Rating: 1.0A AC/DC (AWG #28)
- Rated voltage: 50V AC/DC
- Temperature range: -25 Degrees Celsius to 85 Degrees Celsius (including -temperature rise when applying electric current)
- Contact resistance: initial value/20 milliohms max; According to environmental tests/40 milliohms max.
- Insulation resistance: 100 megohms and more
- Dielectric Strength: 500V AC/minute
- Applicable Wire: Conductor Size/AWG #28 to AWG #32; Insulation O.D./0.4 to 0.8mm.

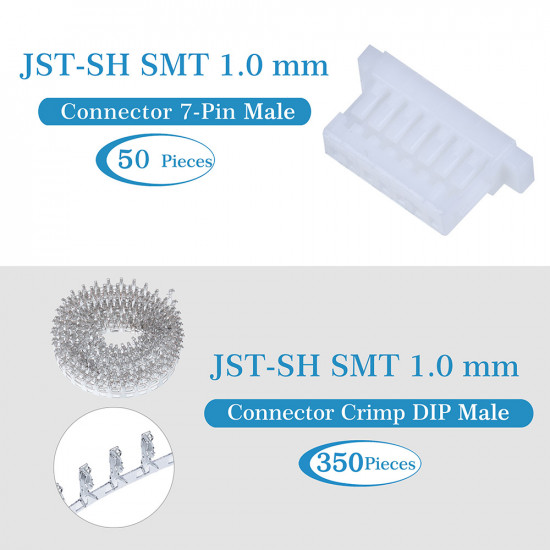

1 * JST-SH-SMT 1.0 mm Pitch 7 Pin JST Connector kit ( 50 Sets/450 Pieces)
