JST XH SMT 2.54 mm 3-Pin Connector Kit

JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
JST XH SMT 2.54 mm 3-Pin Connector Kit
$3.88
Ex Tax: $3.88
  • Stock: In Stock
  • Brand: CQRobot
  • Model: CQR-XH SMT-JST-B
  • Weight: 88.00g
  • SKU: CQR-XH SMT-JST-B
  • ASIN: B0B2R8FZH4

With the development of electronic products, a wide range of connectors exist in electronic devices. Currently, malfunctions due to bad connectors account for more than 37% of all device failures. JST connector plays the role of conducting electricity and connecting signals in electronic devices. Connectors facilitate the professional division of labor, the replacement of parts, troubleshooting and quick assembly. They are used in various devices due to their stronger and more reliable properties.

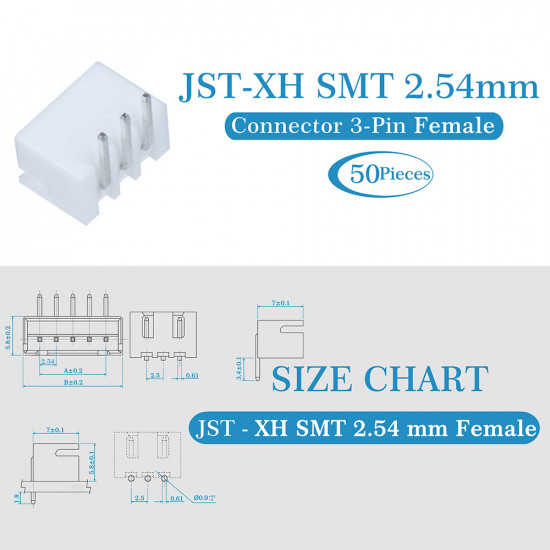

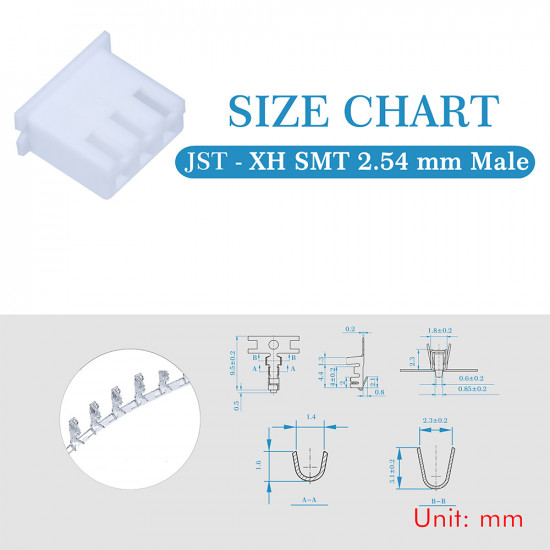

SPECIFICATION

  • Model: JST XH SMT 3 Pin
  • Pitch: 2.54mm (0.1 inch)
  • Current Rating: 3A AC/DC (AWG #22)
  • Rated voltage: 250V AC/DC
  • Temperature range: -25 degrees Celsius to 85 degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/10 milliohms max; According to environmental tests/20 milliohms max.
  • Insulation resistance: 1000 megohms and more
  • Dielectric Strength: 1000V AC/minute
  • Applicable wire: AWG#22 to AWG#30
  • Applicable PCB thickness: 1.6mm (0.06 inch)

DISTRIBUTION LIST

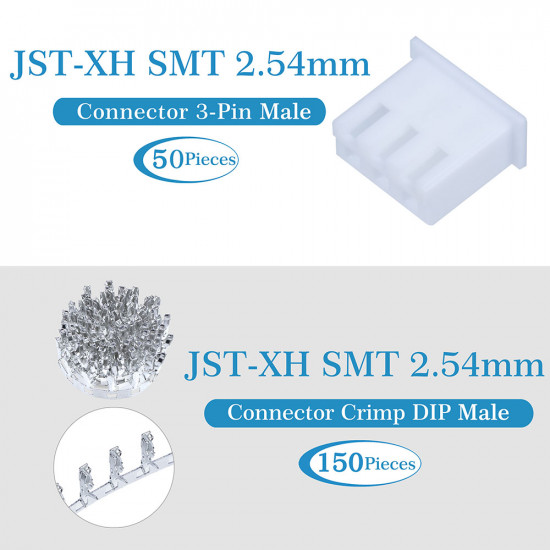

1 * JST XH SMT 2.54mm Pitch 3 Pin JST Connector Kit (50 Sets/250 Pieces)
