JST VH 3.96 mm 4-Pin Connector Kit
With the development of electronic science and technology, connectors (connection plugins) have gain its popularity as common electronic components in modern manufacturing, and played a crucial role in improving the manufacturing process. Not only that, there is no doubt that connectors are also widely used in electronic products in our daily lives. We can even say that the electronic products without connectors are just useless baubles. Although the connector is just an accessory, it's as important as electronic products, especially in the information transmission of electromechanical equipment.
In addition, connectors are characterized by their pinout, method of connection, size, materials, contact resistance, insulation, mechanical durability, ingress protection, lifetime (number of cycles), and ease of use.
It is usually desirable for a connector to be easy to identify visually, rapid to assemble, inexpensive, and require only simple tooling.

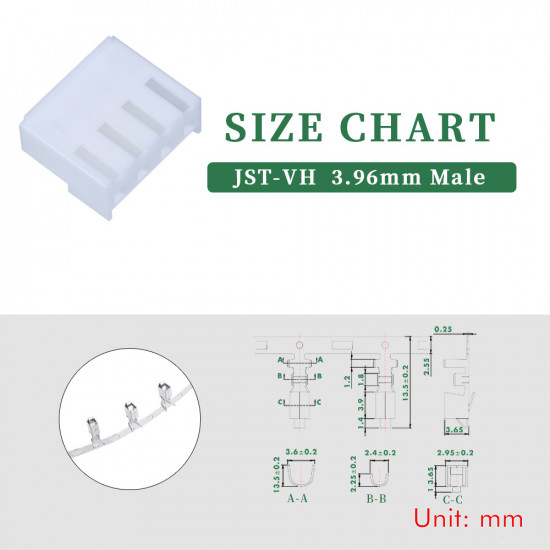

- Pitch: 3.96 mm (0.1559 inch)
- Current rating: 10A AC,DC (AWG #16)
- Voltage rating: 250V AC,DC
- Insulation resistance: 1000 M Ohm min.
- Withstanding Voltage: 1500V AC/minute
- Applicable Wire: AWG#22 to #16
- Applicable PC Board Thickness: 1.6 mm (0.63 inch)
- Contact resistance: Initial value/10m Ohm max, After Environmental Testing/20 m Ohm max.
- Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current)
1 * JST 3.96mm/Pitch VH 4-Pin Connector Kit (300 Pieces/50 Set)
