JST ZH 1.5 mm 5-Pin Connector Kit
With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.

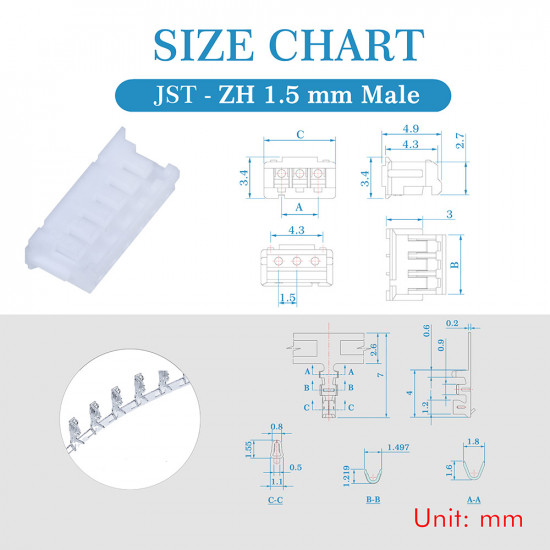

- Pitch: 1.5 mm (0.059 inch)
- Current Rating: 1A AC/DC (AWG #26)
- Voltage Rating: 50V AC/DC
- Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current)
- Contact Resistance: Initial value/20 Milliohm max; After Environmental Testing/30 Milliohm max.
- Insulation Resistance: 500 Megohm and above.
- Withstanding Voltage: 500V AC/minute
- Applicable Wire: AWG#32 to #26

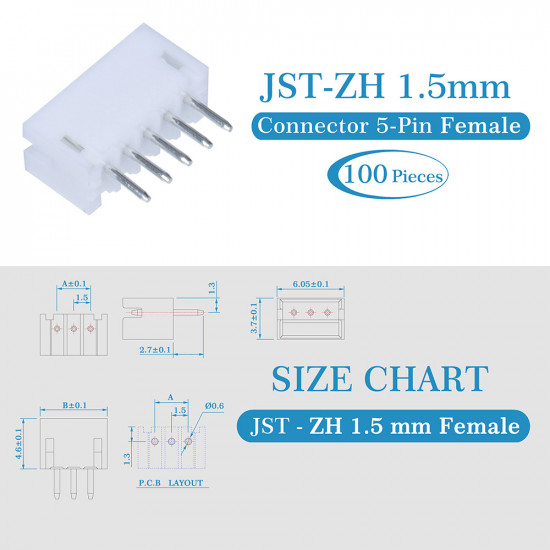

- Applicable PC Board Thickness: 0.6 mm to 1.2 mm, 1.6 mm (0.023 inch to 0.047 inch, 0.062 inch)

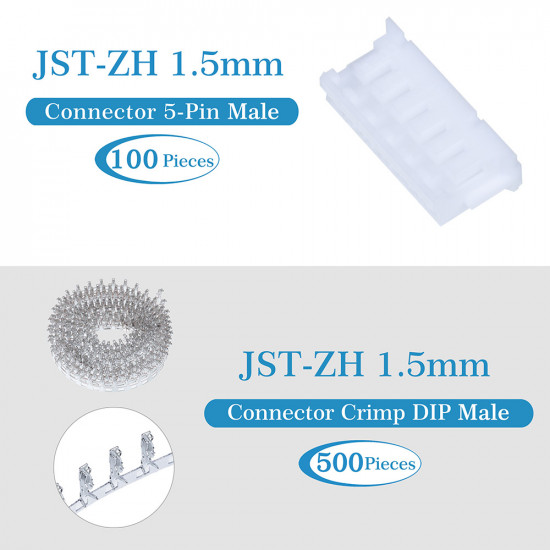

1 * 1.5 mm Pitch JST - ZH 5-Pin JST Connector Kit (700 Pieces/100 Set)
