JST XA 2.54 mm 7-Pin Connector Kit
With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.
- Current Rating: 3A AC,DC (AWG #20)
- Voltage Rating: 250V AC,DC
- Temperature Range: -25 Degree Celsius to 85 Degree Celsius(Including -Temperature Rise in Applying Electrical Current)
- Contact Resistance: Initial Value/10 m Ohm max. After Environmental Testing/20 m Ohm max.
- Insulation Resistance: 1000M Ohm min.
- Withstanding Voltage: 1000V AC/minute
- Applicable Wire: AWG 28 to 20
- Applicable PC Board Thickness: 1.6mm (0.06 inch)

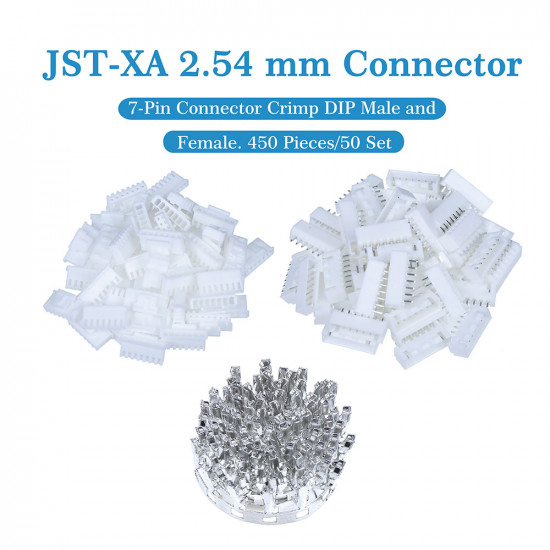

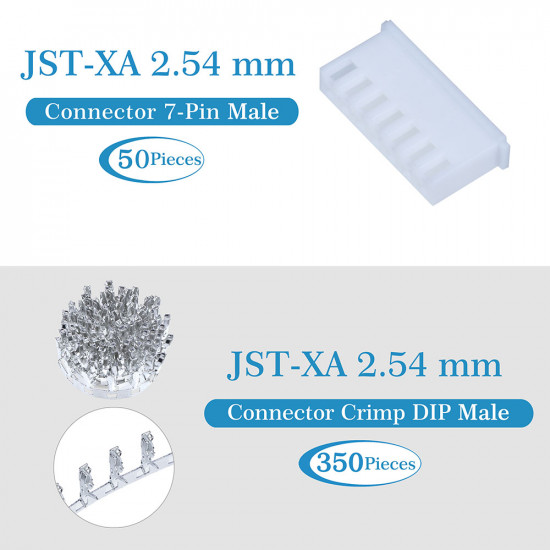

1 * JST 2.54mm XA - 7-Pin Connector Kit (450 Pieces/50 Set)
