JST PH 2.0 mm 4-Pin Connector Kit

JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
Hot
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
JST PH 2.0 mm 4-Pin Connector Kit
$2.80
Ex Tax: $2.80
  • Stock: In Stock
  • Brand: CQRobot
  • Model: CQR-PH-JST-C
  • Weight: 78.00g
  • SKU: CQR-PH-JST-C
  • ASIN: B09MKW2GSR

With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.

SPECIFICATION

  • Model: JST PH 4-Pin
  • Pitch: 2.0 mm (0.079 inch);
  • Current Rating: 2A AC/DC (AWG #24);
  • Voltage Rating: 100V AC/DC;
  • Temperature Range: -25 Degree Celsius to +85 Degree Celsius(including temperature rise in applying electrical current);
  • Contact Resistance: Initial value / 10 Milliohm max; After Environmental Testing / 20 Milliohm max;
  • Insulation Resistance: 1000 Megaohm above;
  • Withstanding Voltage: 800V AC/one minute;
  • Applicable Wire: AWG#32 to AWG#24
  • Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch)

DISTRIBUTION LIST

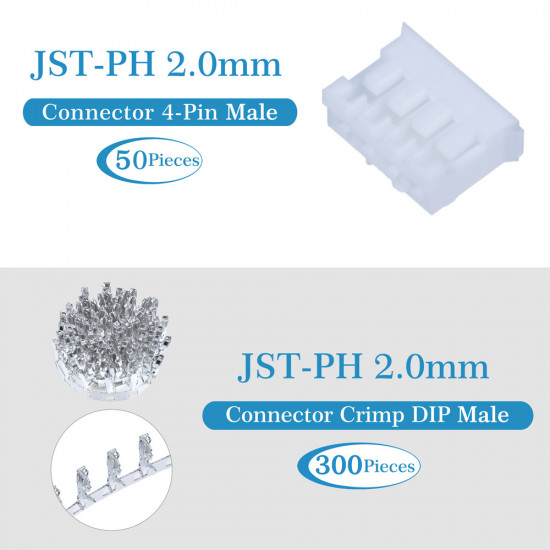

1 * 2.0mm Pitch JST - PH 4-Pin JST Connector Kit (300 Pieces/50 Set)
