128x32, General 0.91 inch OLED display Module

128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
New
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
128x32, General 0.91 inch OLED display Module
$8.99
Ex Tax: $8.99
  • Stock: In Stock
  • Model: WX14657
  • Weight: 78.00g
  • SKU: WX14657

INTRODUCTION

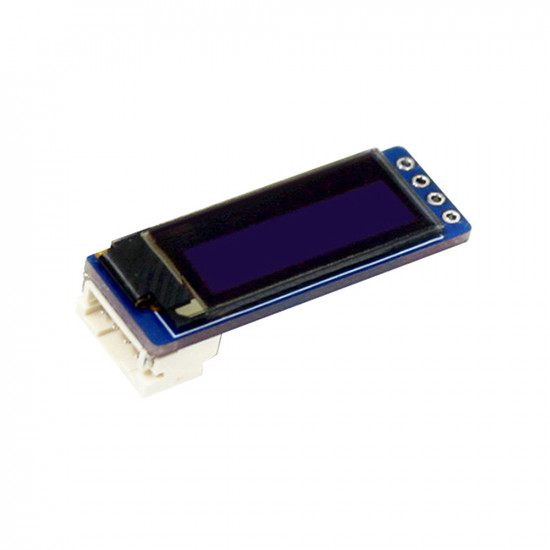

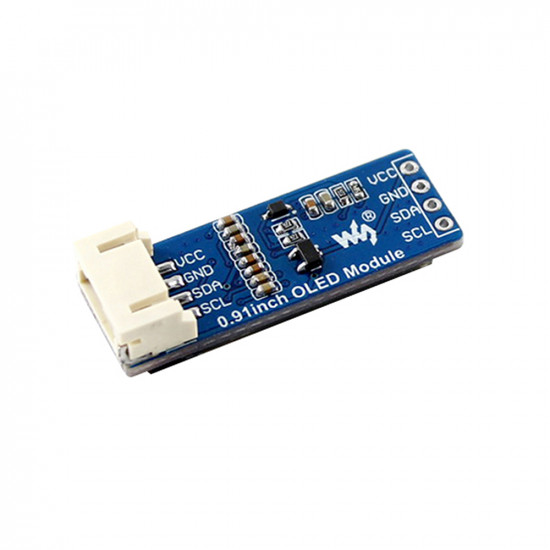

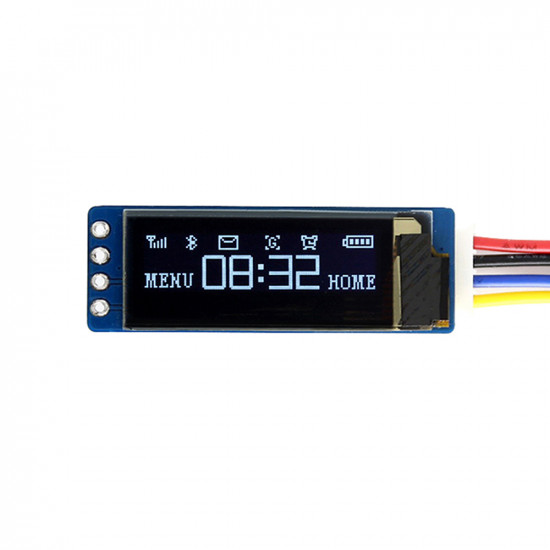

This is a general OLED display Module, 0.91inch diagonal, 128 * 32 pixels, with embedded controller, communicating via I2C interface.

FEATURES

  • 0.91inch small form factor
  • 128*32 high resolution
  • I2C interface, requires only two signal pins
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

SPECIFICATIONS

  • Driver: SSD1306
  • Interface: I2C
  • Display color: White
  • Resolution: 128 * 32
  • Viewing Angle: More Than 160 Degree Celsius
  • Operating Voltage: 3.3V / 5V

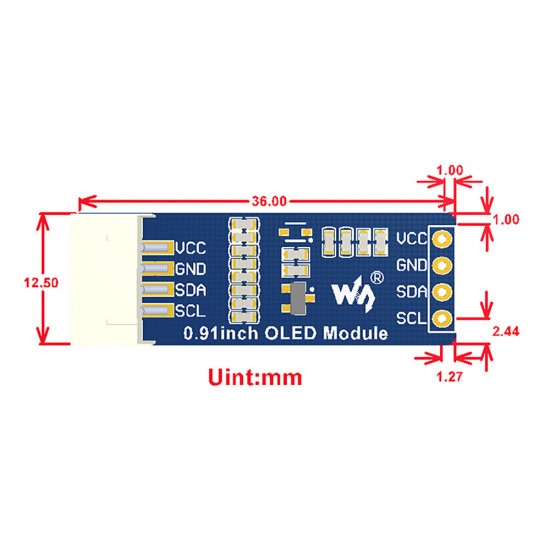

  • Dimension: 36 * 12.5 (mm)

PACKAGE CONTENT

1 * 0.91inch OLED Module

1 * PH2.0 4Pin
