JST EL - 2 Pin Connector Kit

JST EL - 2 Pin Connector Kit
New
JST EL - 2 Pin Connector Kit
$6.16
Ex Tax: $6.16
  • Stock: In Stock
  • Model: CQRJSTEL-A
  • Weight: 218.00g
  • SKU: CQRJSTEL-A
  • MPN: B07QKMW6WF

With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.

FEATURES

  • 50 Pieces 4.5mm pitch JST - EL 2-Pin housing male.
  • 50 Pieces 4.5mm pitch JST - EL 2-Pin housing female.
  • 100 Pieces 4.5mm pitch JST - EL crimp DIP male.
  • 100 Pieces 4.5mm pitch JST - EL crimp DIP female.

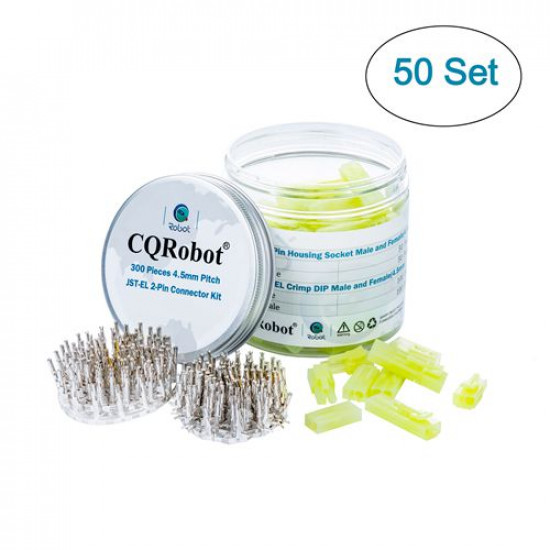

  • 300 Pieces/50 Set 4.5mm pitch JST - EL 2-Pin JST connector kit, PP plastic bottle package.

SPECIFICATION

  • Pitch: 4.5mm (0.177 inch)
  • Current Rating: MAX10A AC/DC
  • Voltage Rating: MAX300V AC/DC
  • Temperature Range: -25 Degree Celsius to 90 Degree Celsius (including temperature rise in applying electrical current)
  • Contact Resistance: Initial value/7m Ohm max. After Environmental Testing/10 m Ohm max.
  • Insulation Resistance: More than 1000 Ohm min
  • Withstanding Voltage: 1500V AC/minute
  • Applicable Wire: AWG#26 to #16, 0.8mm to 0.33 Square millimeter
  • Applicable panel thickness: 0.8mm to 2.0mm

DISTRIBUTION LIST

1 * 4.5mm Pitch JST - EL 2-Pin JST Connector Kit (300 Pieces/50 Set)
