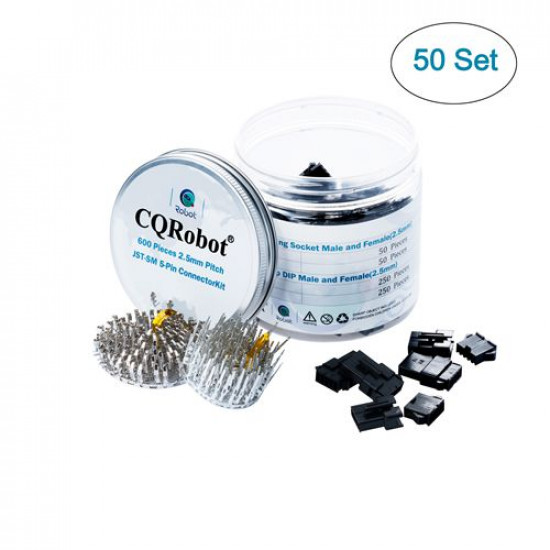

600 Pieces 2.5mm Pitch JST - SM JST Connector Kit (5-Pin)

600 Pieces 2.5mm Pitch JST - SM JST Connector Kit (5-Pin)
New
600 Pieces 2.5mm Pitch JST - SM JST Connector Kit (5-Pin)
$9.87
Ex Tax: $9.87
  • Stock: In Stock
  • Model: CQRJSTSM5PIN
  • Weight: 167.00g
  • SKU: CQRJSTSM5PIN

With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.

FEATURES

  • 50 Pieces 2.5mm pitch JST - SM 5-Pin housing male.
  • 50 Pieces 2.5mm pitch JST - SM 5-Pin housing female.
  • 250 Pieces 2.5mm pitch JST - SM crimp DIP male.
  • 250 Pieces 2.5mm pitch JST - SM crimp DIP female.
  • 600 Pieces/50 Set 2.5mm pitch JST - SM 5-Pin JST connector kit, PP plastic bottle package.

SPECIFICATION

  • Pitch: 2.5mm (0.098 inch)
  • Current Rating: 3A AC, DC max
  • Voltage Rating: 250V AC, DC max
  • Temperature Range: -25 Degree Celsius to 85 Degree Celsius (including temperature rise in applying electrical current)
  • Contact Resistance: Initial value/10m Ohm max. After Environmental Testing/20 m Ohm max.
  • Insulation Resistance: 500M Ohm min
  • Withstanding Voltage: 1500V AC/minute
  • Applicable Wire: AWG#28 to #22, 0.8mm to 0.33 Square millimeter
  • Applicable panel thickness:0.5mm to 2.0mm

DISTRIBUTION LIST

1 * 2.5mm Pitch JST - SM 5-Pin JST Connector Kit (600 Pieces/50 Set)
