$4.83
Ex Tax: $4.83
  • Stock: In Stock
  • Model: CQRJSTXH-A
  • Weight: 150.00g
  • SKU: CQRJSTXH-A
  • MPN: B0731NHS9R

With the development of electronic products, a wide range of connectors are present in electronic equipment. Currently, malfunctions caused by poor connectors account for more than 37% of all equipment failures. The JST connector plays the role of conducting current and connecting signal in electronic equipment. Connectors are easier for professional division of labor, parts replacement, troubleshooting and quick assembly. They are widely used in various equipments because of their stronger and more reliable features.

SPECIFICATION

  • Current Rating: 3A AC,DC (AWG #22)
  • Voltage Rating: 250V AC,DC
  • Temperature Range: -25 Degree Celsius to 85 Degree Celsius(Including -Temperature Rise in Applying Electrical Current)
  • Contact Resistance: Initial Value/10 m Ohm max.
  • After Environmental Testing/20 m Ohm max.
  • Insulation Resistance: 1000M Ohm min.
  • Withstanding Voltage: 1000V AC/minute
  • Applicable Wire: AWG 30 to 22

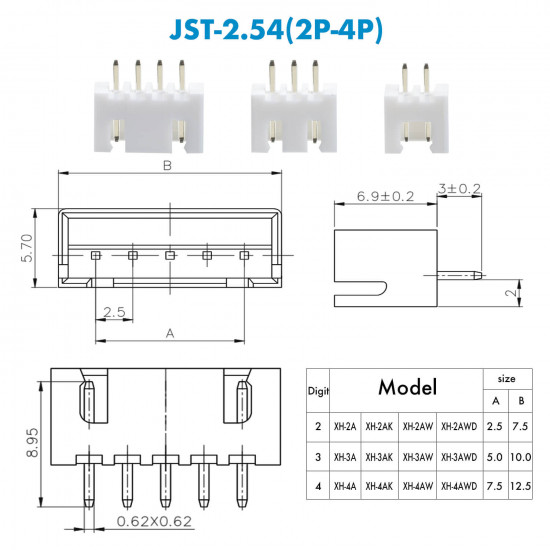

  • Applicable PC Board Thickness: 1.6mm (0.06 inch)

DISTRIBUTION LIST

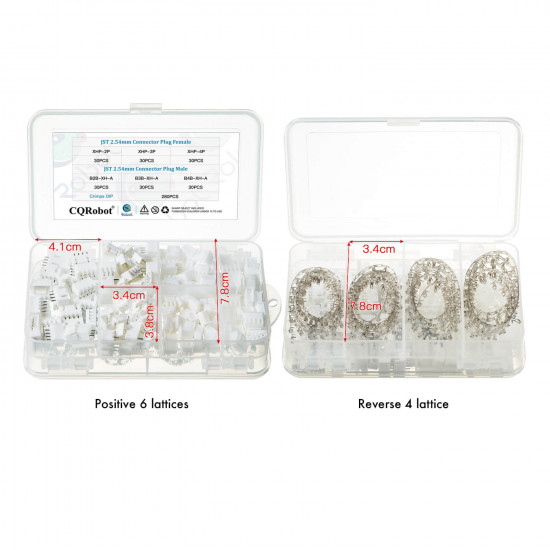

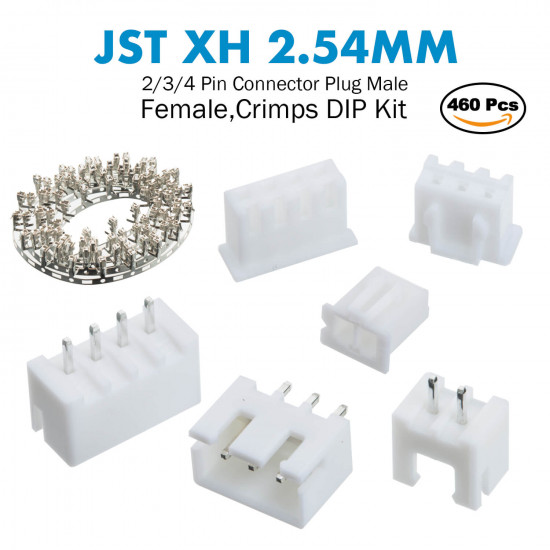

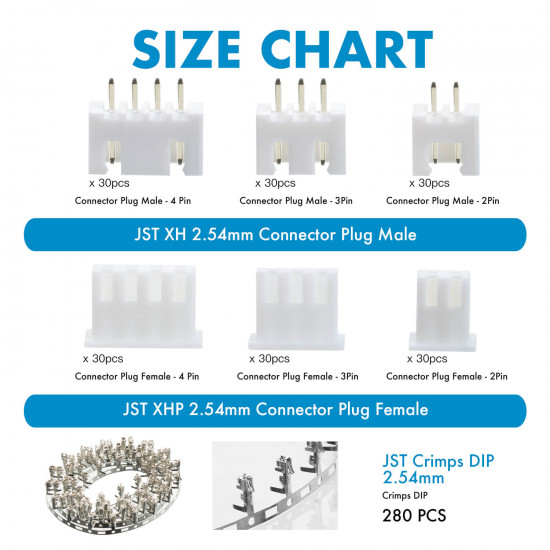

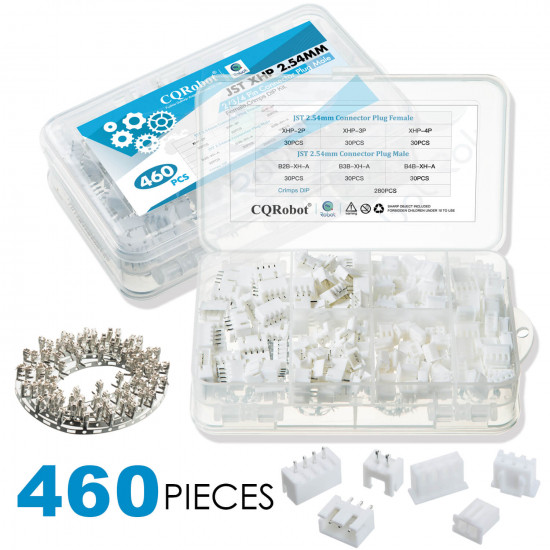

JST XH - 2 / 3 / 4 Pin Connector Kit (460 PCS)
