Nylon screws, also known as plastic screws, compared with ordinary metal screws, the biggest advantage of nylon screws is its good insulation performance, non-conductive, and no signal interference such as eddy current under the influence of current or other electrical signals. Non-magnetic, corrosion-resistant, beautiful, never rust and other high-quality properties, the material used for nylon screws is becoming more and more diversified, and the performance is constantly improving. It is widely used in the medical equipment industry, wind power industry, aerospace industry, office equipment industry, petrochemical industry, etc. industry, electronics industry, communications industry, shipbuilding industry, etc.

Specification

Model:M8 * 40 mm  M8 * 50 mm

Colour: Black

Material: UL qualified Nylon66 material

Fire Rating: 94V-2

Uses: Fixation of electrical appliances such as PC boards and machine boards

Features: Good heat insulation, no magnetic interference, corrosion resistance, no rust, light weight, stable dielectric constant

Certification: ROHS standard

Overall Length: 55.50 mm / 2.19 inches

Thread Size: M8 * 50 mm / 0.31 * 1.97 inches ( D * H )

Head Size: 14.00 * 5.50 mm / 0.55 * 0.22 inches ( D * T )

Nut Size: M8 * 6.14 mm / 0.31 * 0.24 inches ( ID * T )

Washer Size: 16.00 * 8.00 * 1.40 mm / 0.63 * 0.31 * 0.06 inches ( D * ID * T )

Package List

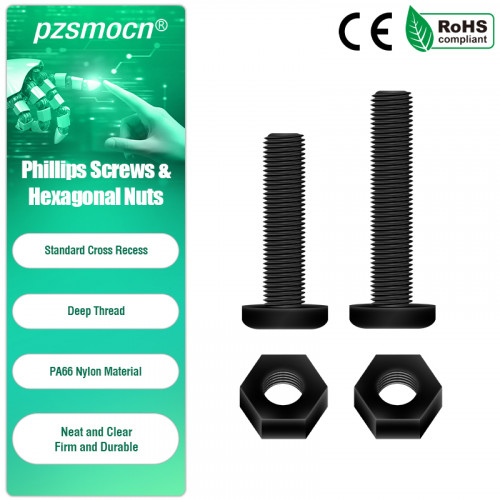

100 pieces M8 * 40 mm black nylon phillips button head screws * 1

100 pieces M8 * 50 mm black nylon phillips button head screws * 1

200 pieces M8 black nylon hex nuts * 1
