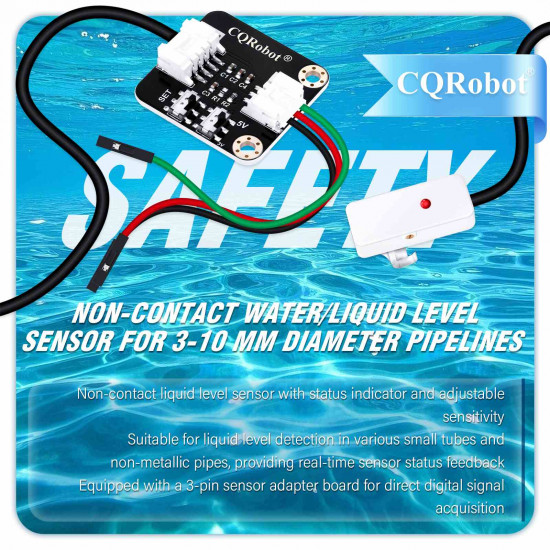

Non-Contact Water/Liquid Level Sensor for 3-10 mm Diameter Pipelines

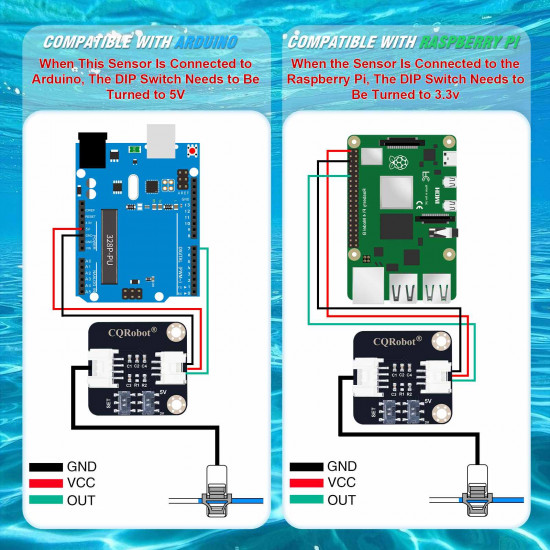

CQRobot non-contact liquid level sensor realizes non-contact detection of liquid level in closed containers. It uses advanced signal processing technology and high-speed signal processing chip to break through the influence of container wall thickness. It is easy to install and use, and can detect the liquid level of various toxic substances, strong acids, strong alkalis and various liquids in high-pressure closed containers. The sensor is equipped with 2 DIP switches and is compatible with Arduino, Raspberry Pi and other motherboards.

Wiki: http://www.cqrobot.wiki/index.php/Non-Contact_Water/Liquid_Level_Sensor_SKU:_CQRSENYW001

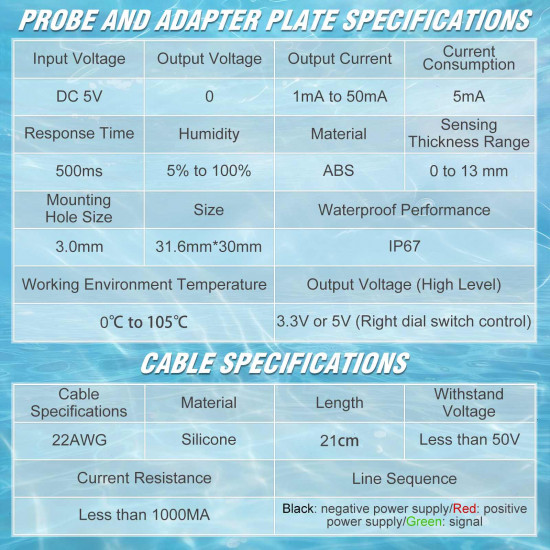

Specifications

Sensor Probe and Adapter Specifications

• Input Voltage: DC 5V
• Current Consumption: 5mA
• Output Voltage (high level): 3.3V or 5V (controlled by the right dip switch)
• Output Voltage: 0
• Output Current: 1mA to 50mA
• Response Time: 500ms
• Working Environment Temperature: 0 to 105 degrees Celsius
• Sensing Thickness (sensitivity) range: 0 to 13 mm
• Humidity: 5% to 100%
• Material: ABS
• Waterproof Performance: IP67

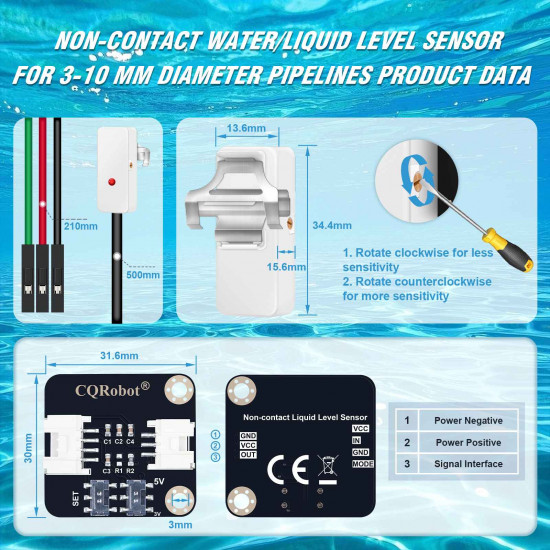

• Size: 31.6mm*30mm
• Mounting Hole size: 3.0mm

Interface Cable Specifications

• Cable specifications: 22AWG
• Material: Silicone
• Length: 21 cm
• Withstand Voltage: less than 50V
• Withstand Current: less than 1000MA
• Line Sequence: black-negative power, red-positive power, green-signal

Delivery List

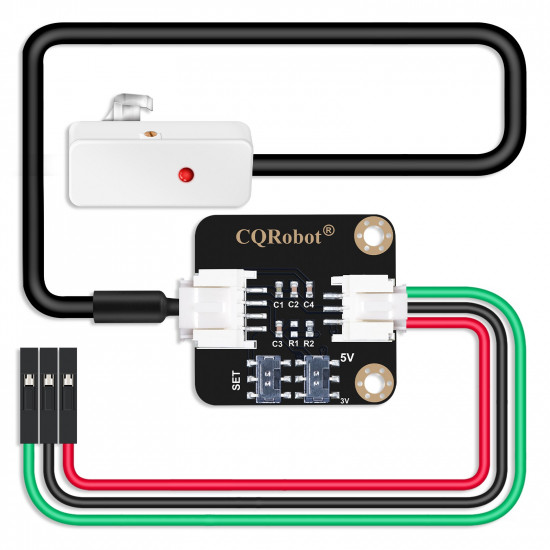

1 * Liquid Level Sensor Probe

1 * Liquid Level Sensor Adapter

1 * JST 3-pin Cable
