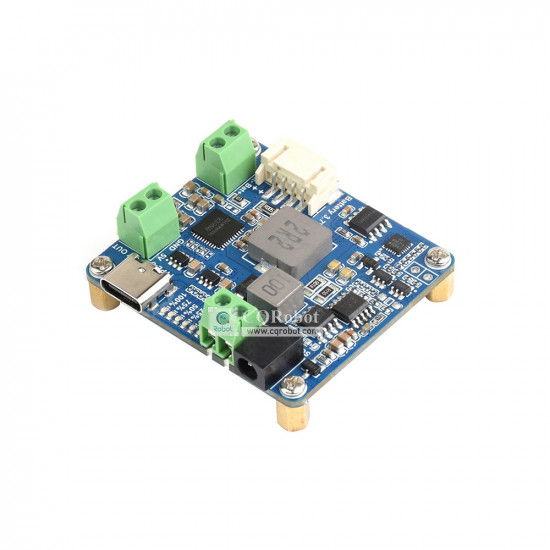

Solar Power Manager Module, Supports 6V-24V Solar Panel and Type-C Power Adapter, with Battery Holder

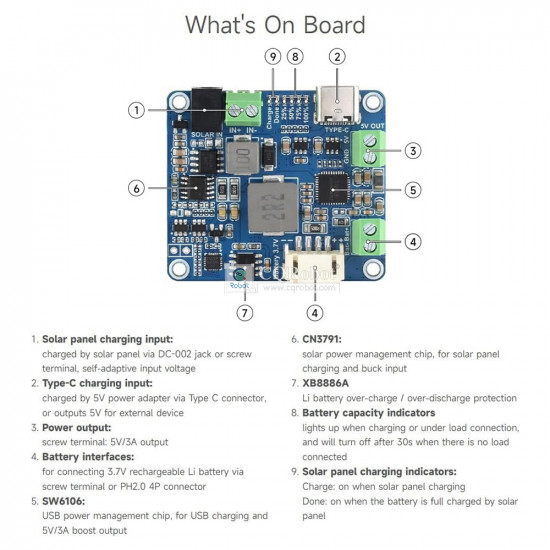

INTRODUCTION

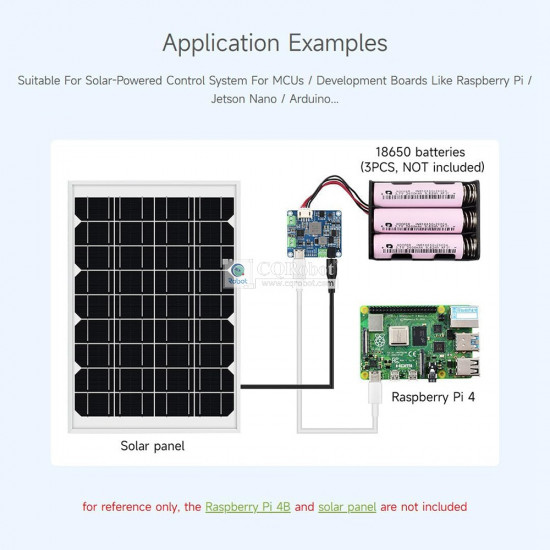

The Solar Power Management Module (D) is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.

FEATURE

• Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
• Supports solar panel / Type-C power adapter for battery charging
• For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection
• Multi LED indicators, for monitoring the status of solar panel and batteries
• Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use

SPECIFICATION

• SOLAR IN: 6V ~ 24V
• Recharging: Solar panel, power adapter, USB
• Battery: 3x 18650 Li-ion battery (NOT included)
• USB input: 5V (TYPE-C, with PD quick charge support)
• 5V output: 5V / 3A (TYPE-C, screw terminal)
• Recharging cutoff voltage: 4.2V ± 1％
• Over discharging protection voltage: 3.0V ± 1％
• Solar panel recharging efficiency: ~78%
• USB recharging efficiency: ~93%
• Batteries boost output efficiency: ~90%
• Quiescent current (Max): <30mA
• Operating temperature: -40℃ ~ 85℃

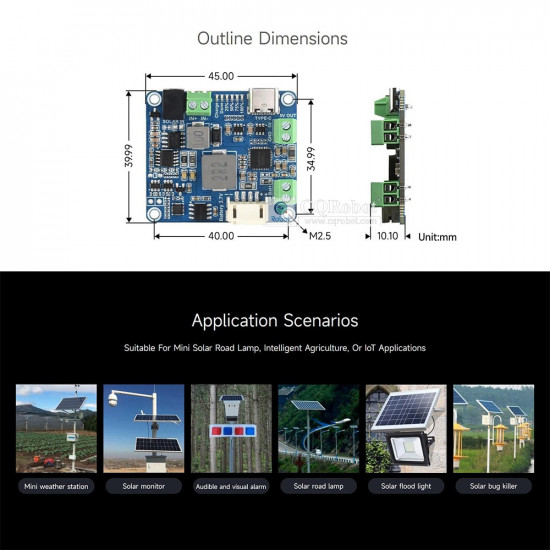

• Dimensions: 45.0 × 40.0 × 10.1mm

PACKAGE CONTENT

1 * Solar Power Manager Module (D)

1 * Battery Holder

1 * Screws Pack

Note: the 18650 batteries are NOT included.
