JST XA 2.54 mm 3-Pin Connector (50 Sets/250 Pieces)

With the development of industrial electronic integrated circuits, a variety of IC socket and plug connectors have appeared in electronic equipment. JST connectors have become an indispensable component in the electronics industry with their high quality, diversity and wide application areas. Whether it is consumer electronics, automotive electronics or industrial equipment, JST connectors can provide reliable solutions. Choosing the right JST connector can significantly improve the performance and reliability of the equipment.

Specifications:

• Connector Type: JST XA 2.5mm 3-Pin Wire-to-Board
• Pitch: 2.54mm
• Rated Current: 3A
• Rated Voltage: 250V
• Contact Resistance: 10 milliohms maximum
• Insulation Resistance: 1000 megohms minimum
• Withstand Voltage: 800V AC for 1 minute
• Operating Temperature: -25 degrees celsius to +85 degrees celsius
• Housing Material: High temperature resistant nylon
• Terminal Material: Tin-plated phosphor copper
• Wire Gauge: AWG 22-28 compatible
• PC Board Thickness: 1.6mm compatible

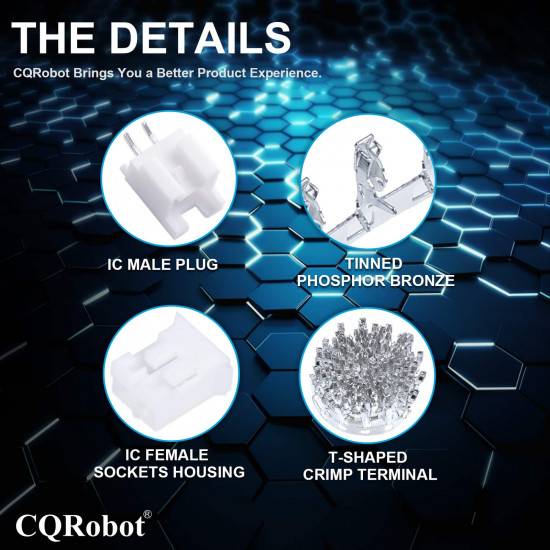

Kit Contents:

50 Pieces * JST XA 2.54mm 3-Pin Male Plugs

50 Pieces * JST XA 2.54mm 3-Pin Female Socket Housings

150 Pieces * Crimp Terminals
