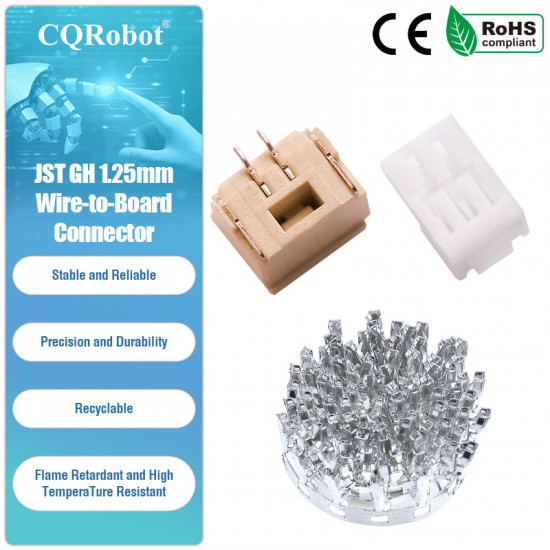

JST GH 1.25 mm 3-Pin Connector (80 Sets/400 Pieces)

With the development of industrial electronic integrated circuits, a variety of IC socket and plug connectors have appeared in electronic equipment. JST connectors have become an indispensable component in the electronics industry with their high quality, diversity and wide application areas. Whether it is consumer electronics, automotive electronics or industrial equipment, JST connectors can provide reliable solutions. Choosing the right JST connector can significantly improve the performance and reliability of the equipment.

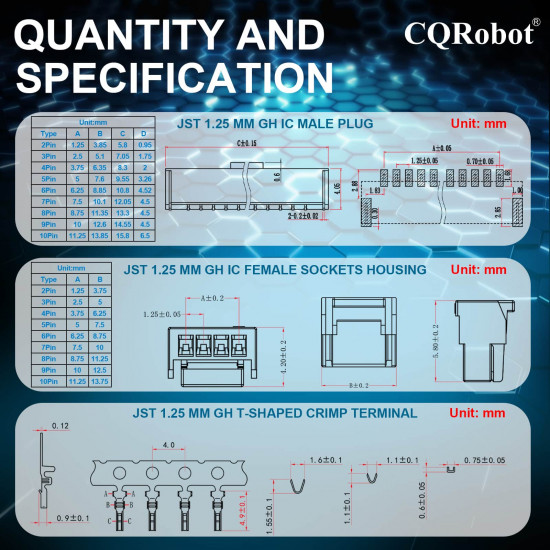

Specifications:

• Connector Type: JST GH 1.25mm 3-Pin Wire-to-Board
• Pitch: 1.25mm
• Rated Current: 1A
• Rated Voltage: 50V
• Contact Resistance: 20 milliohms maximum
• Insulation Resistance: 100 megohms minimum
• Withstand Voltage: 500V AC for 1 minute
• Operating Temperature: -25 degrees celsius to +85 degrees celsius

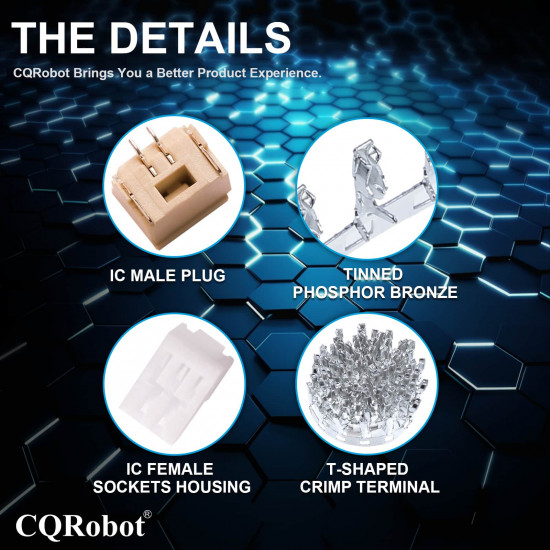

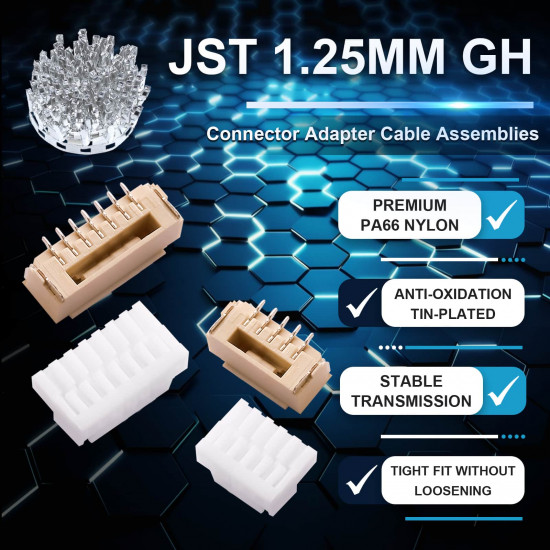

• Housing Material: High temperature resistant nylon
• Terminal Material: Tin-plated phosphor copper
• Wire Gauge: AWG 28-32 compatible
• PC Board Thickness: 0.8-1.6mm compatible

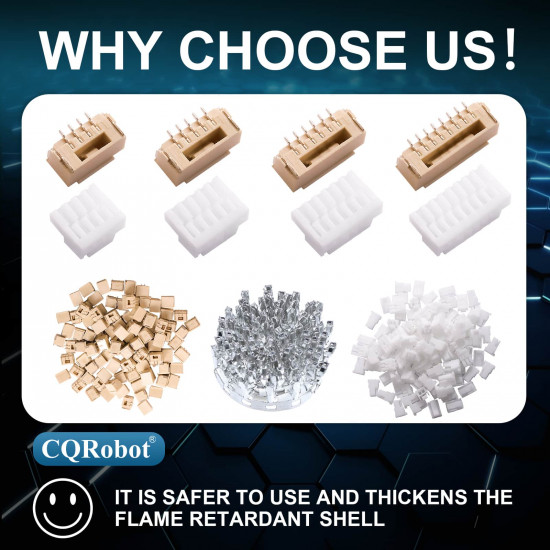

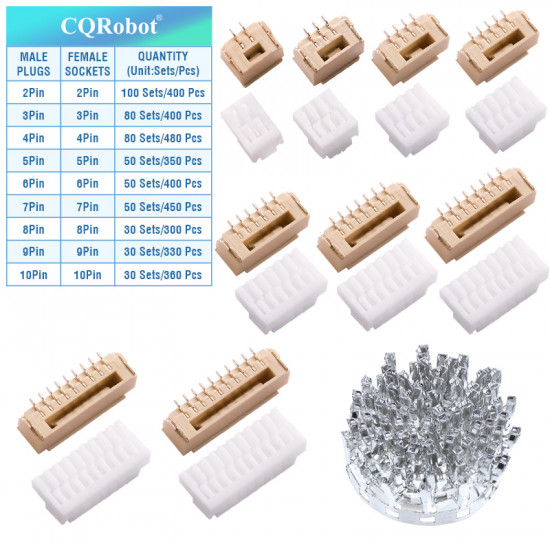

Kit Contents:

80 Pieces * JST GH 1.25mm 3-Pin Male Plugs

80 Pieces * JST GH 1.25mm 3-Pin Female Socket Housings

240 Pieces * Crimp Terminals
