Dual Voltage (3.3V/5V) Multiple Output Power Supply Module

Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
Dual Voltage (3.3V/5V) Multiple Output Power Supply Module
  • Brand: CQRobot
  • Weight: 70.80g
  • SKU: CQRKEMD0551
$7.98
Ex Tax: $7.98

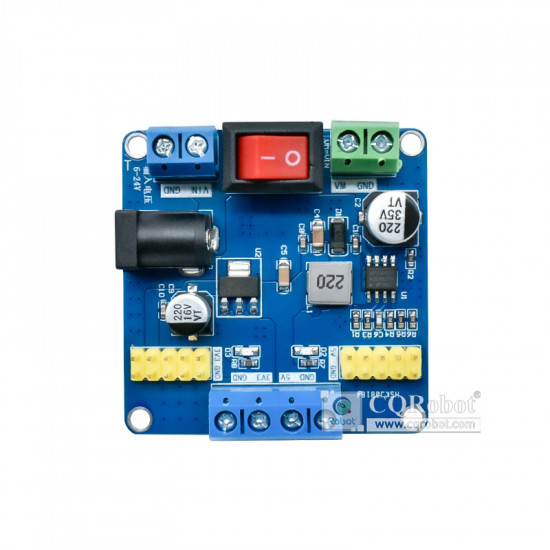

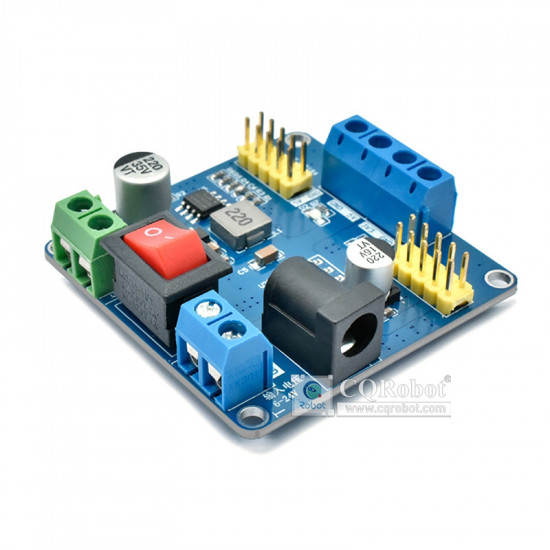

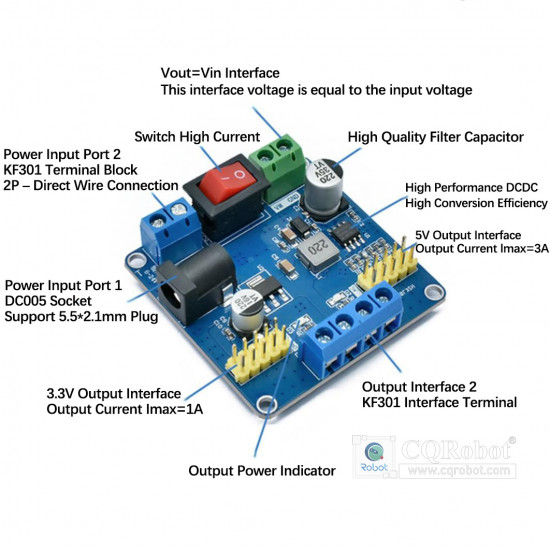

This is a DC-DC voltage conversion module specifically designed for small electronic devices and smart hardware, providing stable dual outputs of 3.3V and 5V.

This module utilizes the MPS high-performance DCDC main control chip (operating frequency 1.5MHz) to achieve efficient voltage conversion and low ripple output, supporting synchronous power supply for multiple devices. It is suitable for simultaneous power supply needs of smart cars, sensors, microcontrollers, and other devices, with convenient installation and strong compatibility.

Suitable for smart car power systems, power supply solutions for electronic design competitions, and multi-channel power supply scenarios in laboratories.

SPECIFICATION

  • Product Name: Two Voltage Modules
  • Module Size: Overall dimensions 48*48mm;Hole spacing 43*43mm
  • Input Voltage: 6-24V wide voltage input (recommended input current > 1A)
  • Output Voltage: DC5V@5 channels;DC3.3V@5 channels
  • Output Current: 5V@3A (max);3.3V@1A(max)
  • Output Ripple: <50mV
  • Main Control Chip: MPS high-performance DCDC, operating frequency 1.5MHZ

DISTRIBUTION LIST

1 * 3.3V/5V dual voltage multi-channel power module
