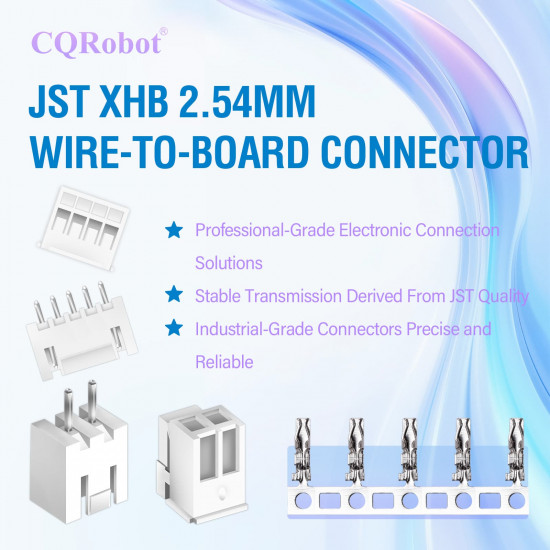

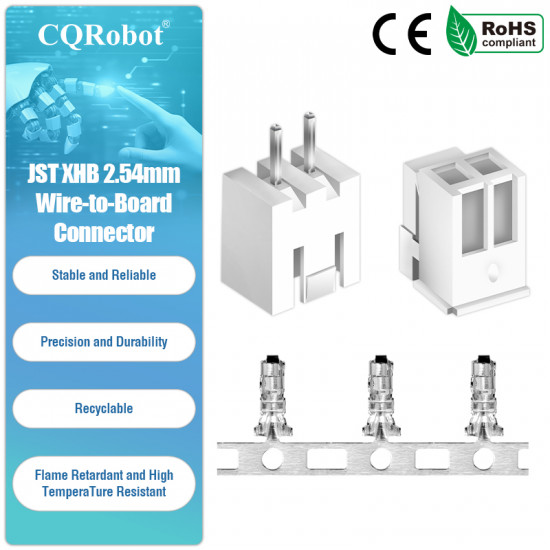

JST XHB 2.54 mm 5-Pin Connector (30 Sets/210 Pieces)

With the development of industrial electronic integrated circuits, a variety of IC socket and plug connectors have appeared in electronic equipment. JST connectors have become an indispensable component in the electronics industry with their high quality, diversity and wide application areas. Whether it is consumer electronics, automotive electronics or industrial equipment, JST connectors can provide reliable solutions. Choosing the right JST connector can significantly improve the performance and reliability of the equipment.

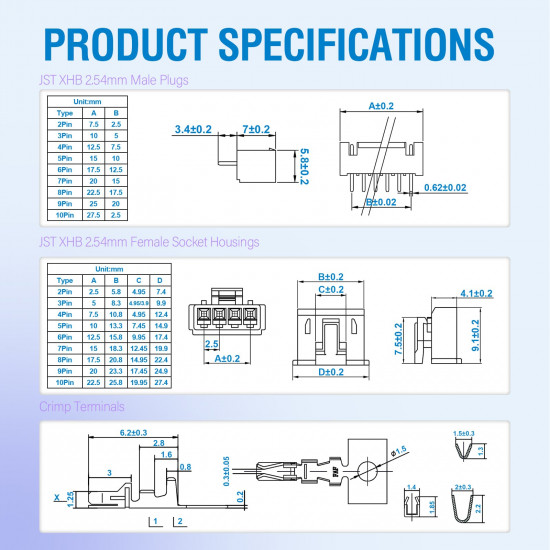

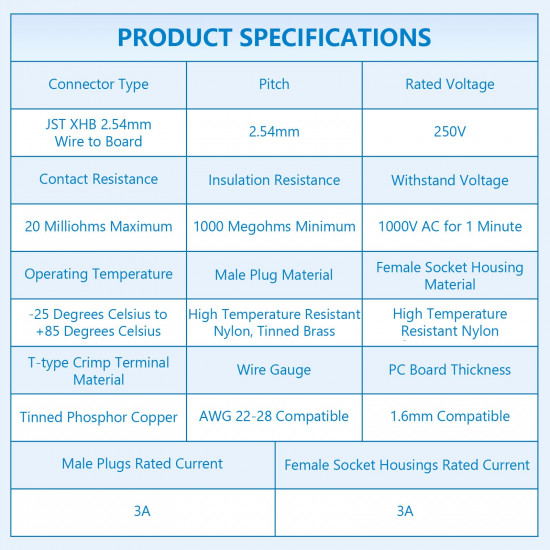

Specifications:

• Connector Type: JST XHB 2.54mm 5-Pin Wire-to-Board
• Pitch: 2.54mm
• Male Plugs Rated Current: 3A / Female Socket Housings Rated Current: 3A
• Rated Voltage: 250V
• Contact Resistance: 20 milliohms maximum
• Insulation Resistance: 1000 megohms minimum
• Withstand Voltage: 1000V AC for 1 minute
• Operating Temperature: -25 degrees celsius to +85 degrees celsius

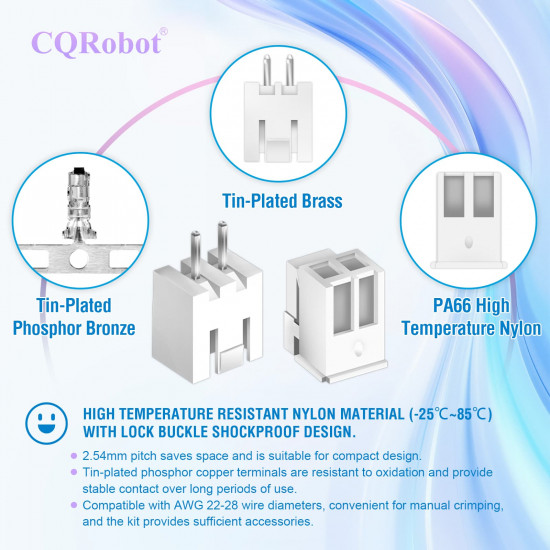

• Male Plug Material: high temperature resistant nylon, tinned brass
• Female Socket Housing Material: high temperature resistant nylon
• T-type Crimp Terminal Material: tinned phosphor copper
• Wire Gauge: AWG 22-28 compatible
• PCB Board Thickness: 1.6mm compatible

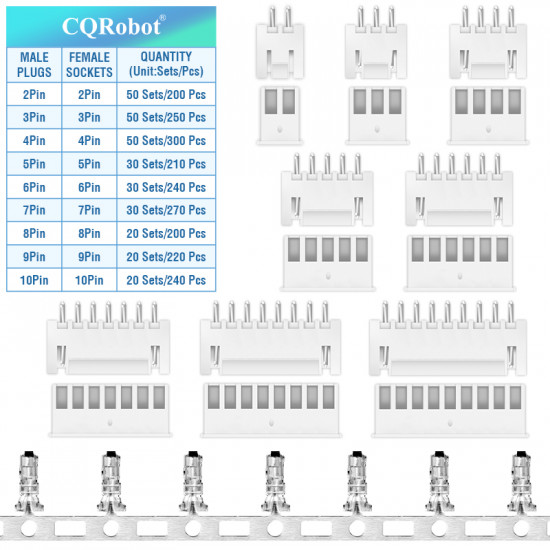

Kit Contents:

30 Pieces * JST XHB 2.54mm 5-Pin Male Plugs

30 Pieces * JST XHB 2.54mm 5-Pin Female Socket Housings

150 Pieces * Crimp Terminals
