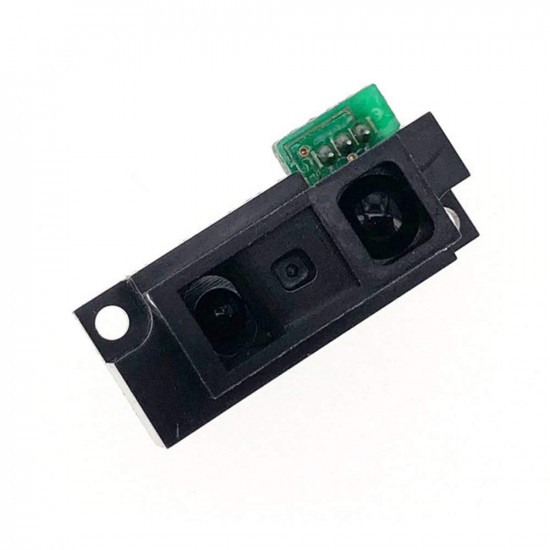

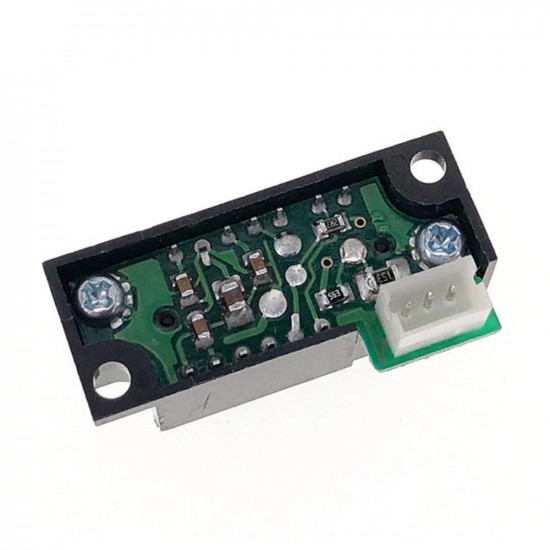

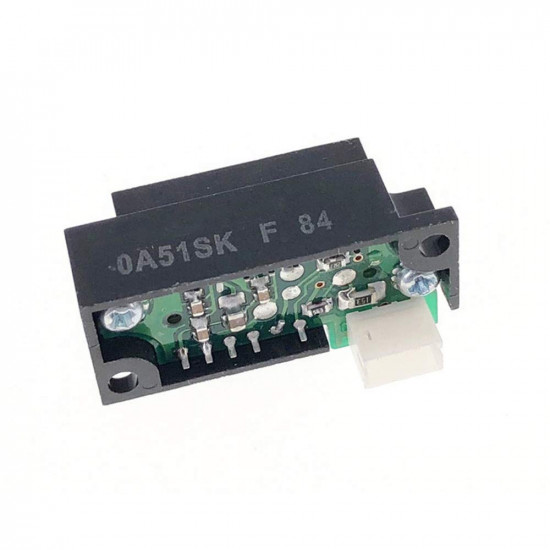

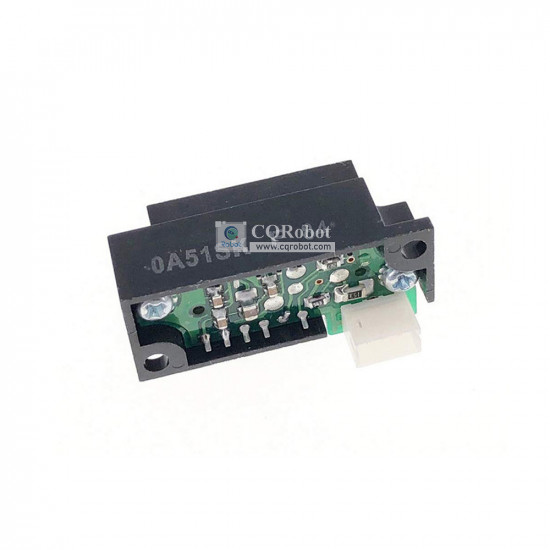

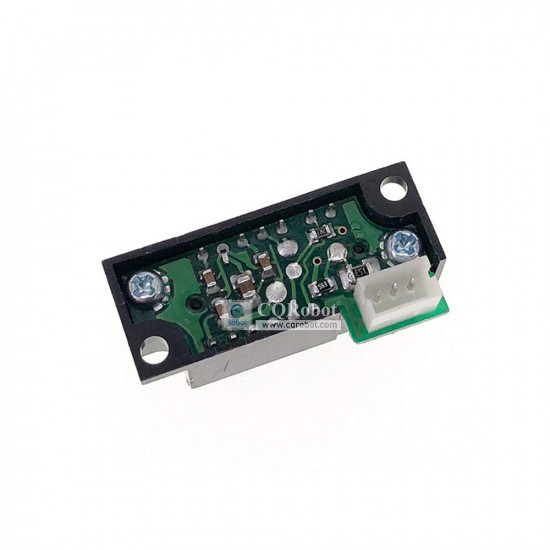

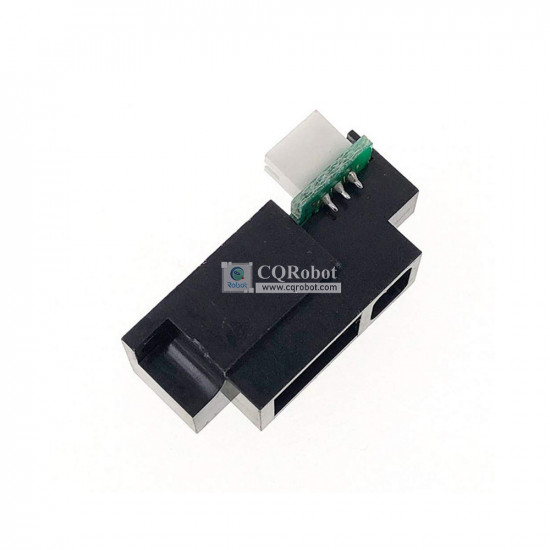

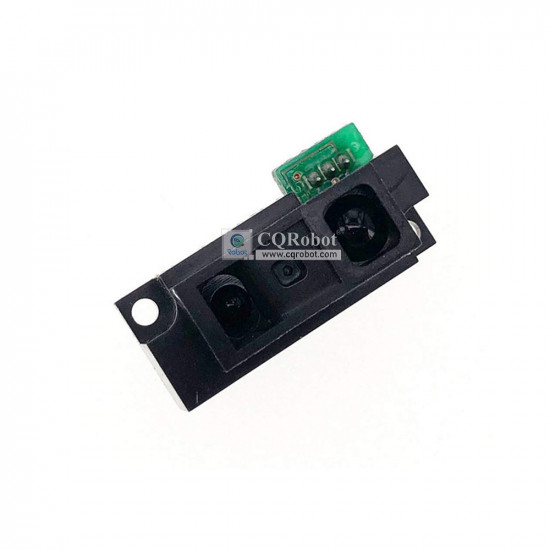

GP2Y0A51SK0F 2-15cm Sharp Infrared Range Sensor Module

Description

GP2Y0A51SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector)，IR-LED (infrared emitting diode) and signal processing circuit.

The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.

This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.

Feature

 - Distance measuring sensor is united with PSD, infrared LED and signal processing circuit

 - Short measuring cycle (16.5ms ± 3.7ms)

 - Distance measuring range: 2 to 15 cm

 - Compact size (27.0x 10.8 x 12.0mm)

 - Analog output type

Specification

 - Operating Supply Voltage: VCC4.5 to 5.5V

 - Measuring Distance Range: 2-15cm

 - Output Terminal Voltage: 0.25-0.55 V, Typic 0.4V

 - Output Voltage Difference: 1.35-1.95V, Typic 1.65V

 - Average Supply Current: Max 22mA, Typic 12mA

 - Operating Temperature: -10 to +60℃

 - Storage Temperature: -40 to +70℃

Application

 - Touch switches (Bathroom equipment, Lighting control, etc)

 - Robot cleaner

 - Sensors for energy saving (ATMs, Photocopiers, Vending machines)

 - Amusement equipment (DIY Robots, Arcade game machines)

Part List

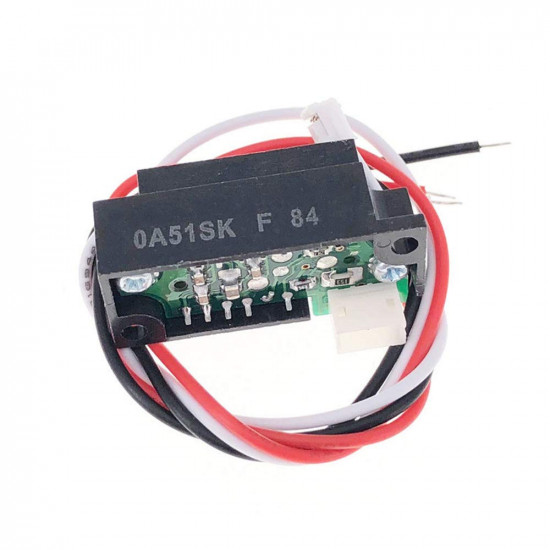

1 * GP2Y0A51SK0F Sharp Infrared Range Sensor Module

1 * 3 Pin Connector Cable
