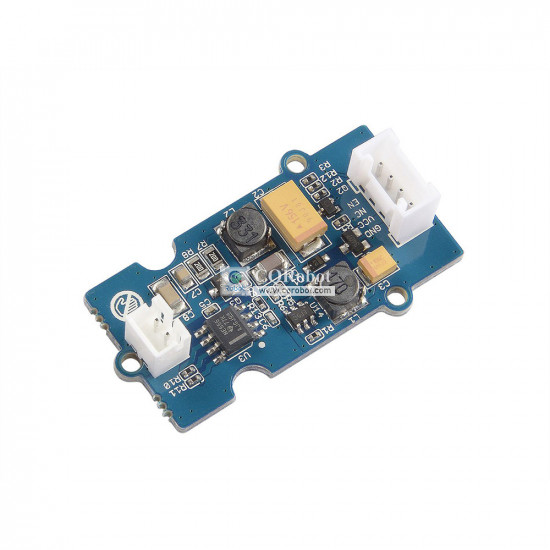

Grove - Water Atomization Sensor: Ultrasonic atomization

Description

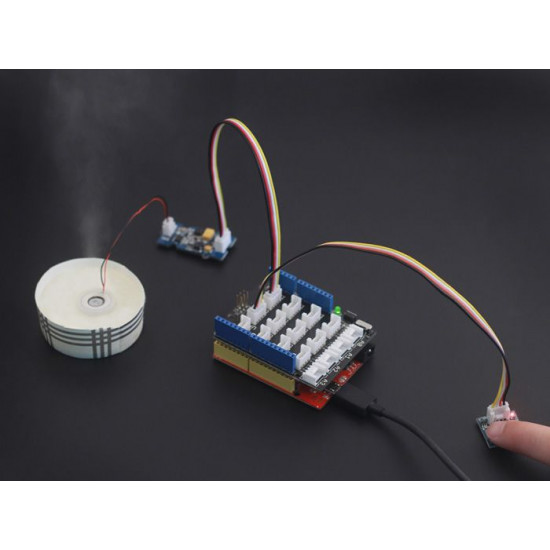

Grove - Water Atomization is a perfect module for you to quickly DIY a humidifier with Arduino. You can also develop more advanced and interesting projects with digital scent technology and any other situations in which atomization is required.

Features

 - Heated with ultrasound: It has the characteristics of high humidification efficiency, low power consumption

 - Easy to prototype: Detachable atomizer is more convenient for prototype development

 - Well applied to vast projects: Good stability and high safety

 - Easy to build: Easy to build various interesting, smart and fashionable applications

 - Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove

Applications

 - Humidifier, ultrasonic mist

 - Scent emitter in different situations

 - For smart-house applications

Specification

- Operating Voltage: 5.0V(DC)

- Ripple(at Max power): ≤100 mV

- Max Power: 2W

- Peak Output Voltage: 65±5V

- Operating Frequency: 105±5kHz

- Chip: ETA1617、NE555

Part List

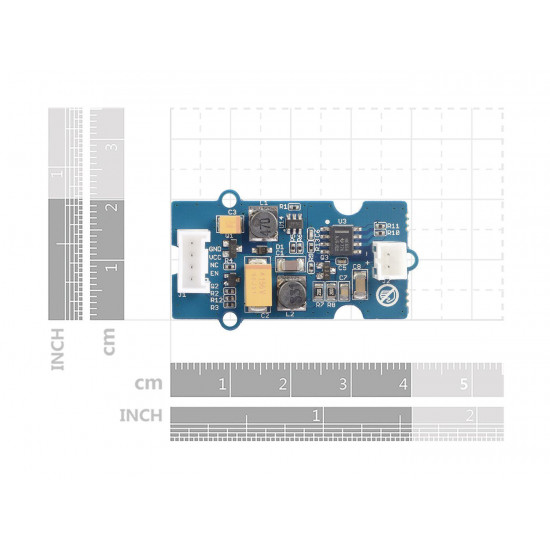

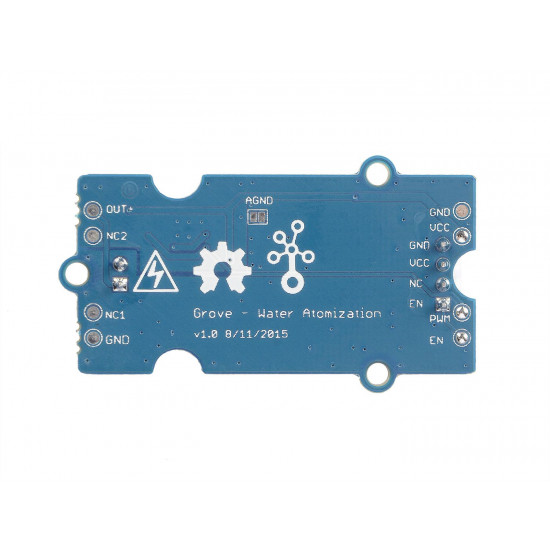

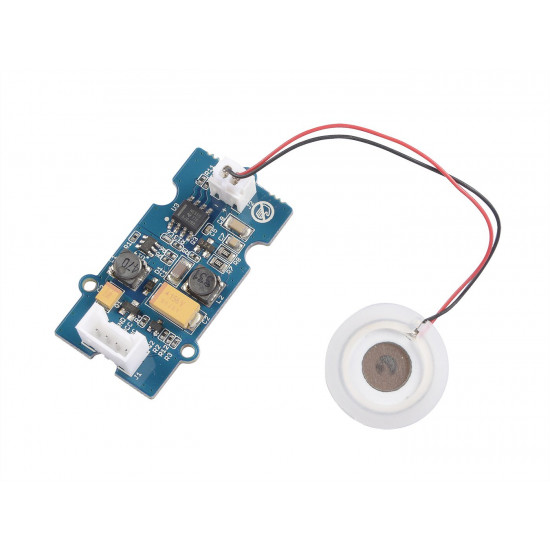

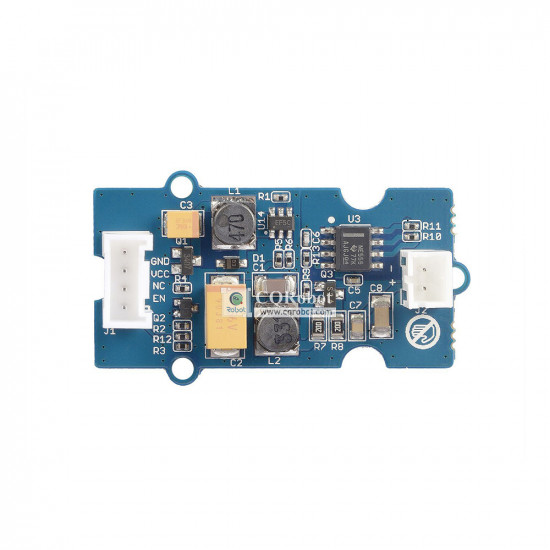

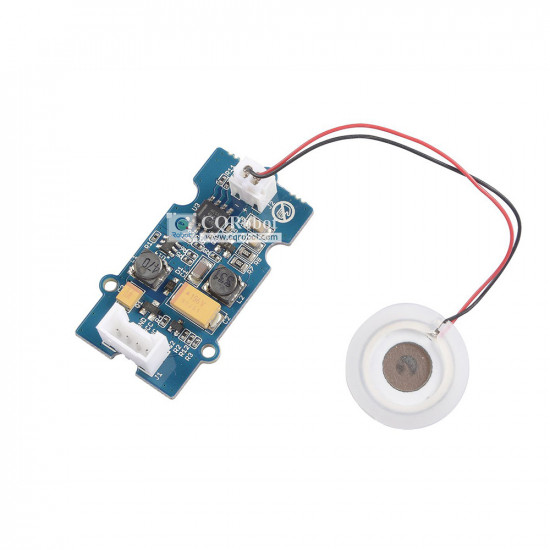

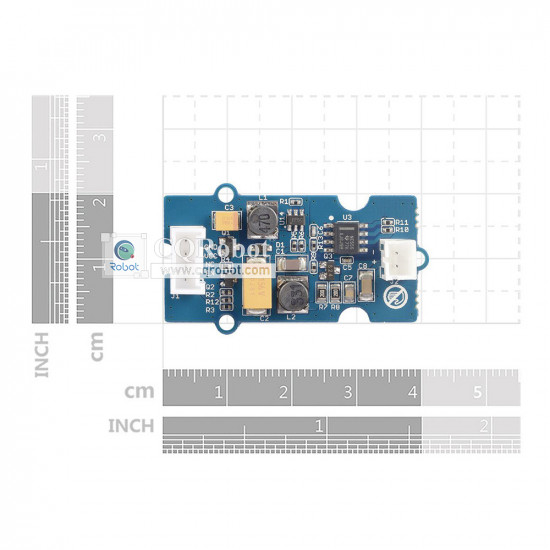

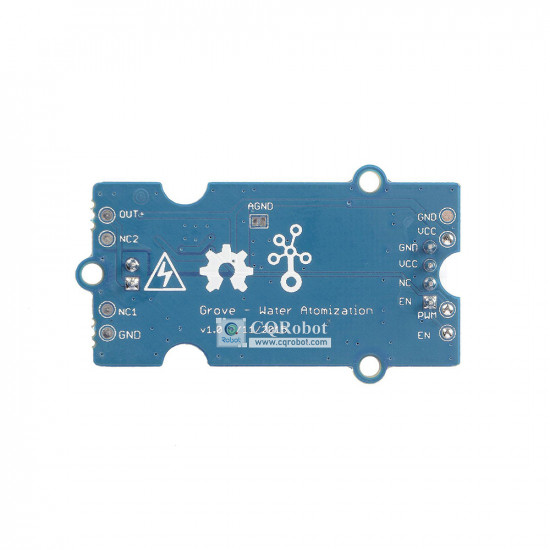

1 * Grove - Water Atomization v1.0

1 * Ultrasonic Transducer

1 * Grove Cable
