MCP23017 IO Expansion Board

MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
Hot
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
MCP23017 IO Expansion Board
  • Brand: CQRobot
  • Weight: 78.00g
  • SKU: CQRMCP23017A
Based on 0 reviews. - Write a review
$6.99
Ex Tax: $6.99
5 or more $6.50
50 or more $6.39
100 or more $5.99
Add to Cart
Buy Now Buy Amazon
Add to Wish List Compare this Product

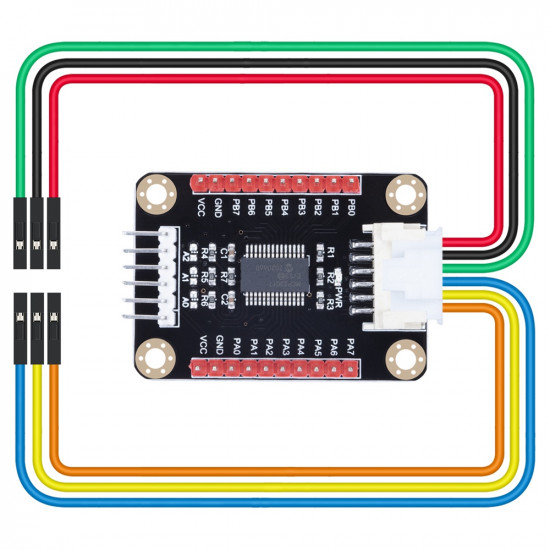

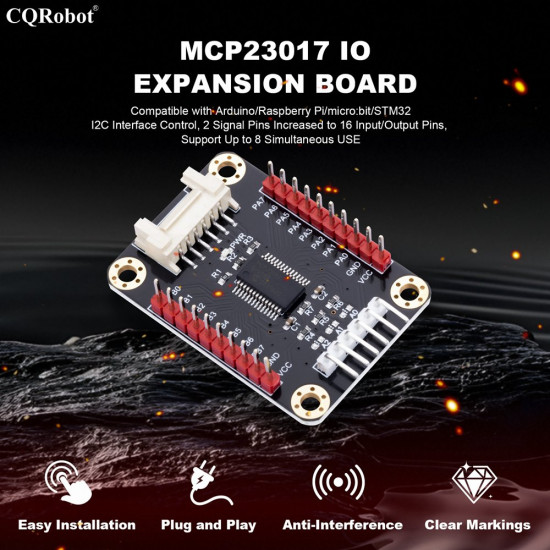

MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

Wiki: http://www.cqrobot.wiki/index.php/MCP23017_IO_Expansion_Board_SKU:_CQRMCP23017A

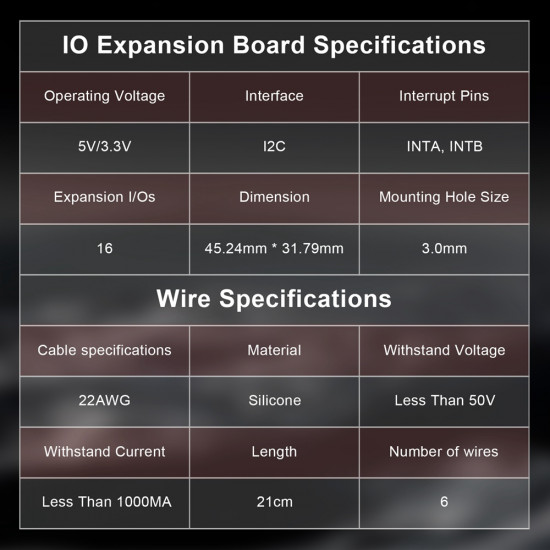

SPECIFICATION

Sensor Specifications

  • Operating Voltage: 5V/3.3V
  • Interface: I2C (JST PA SMT 6-Pin interface to 2.54mm pitch pin header interface)
  • Interrupt Pins: INTA, INTB
  • Expansion I/Os: 16

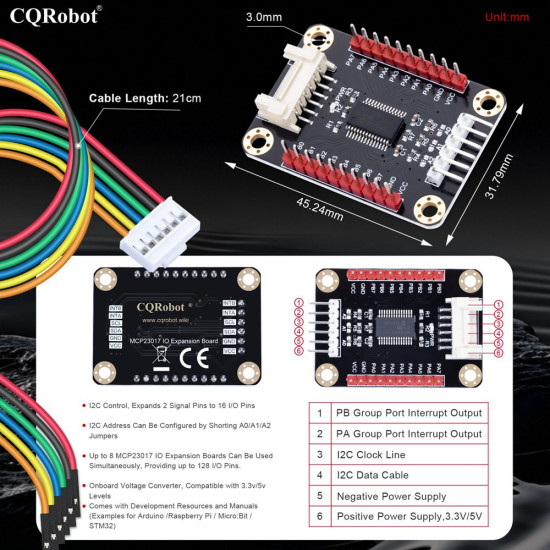

  • Dimension: 45.24mm * 31.79mm
  • Mounting Hole Size: 3.0mm

Interface Wire Specifications

  • Cable specifications: 22AWG
  • Material: Silicone
  • Withstand Voltage: Less Than 50V
  • Withstand Current: Less Than 1000MA
  • Length: 21cm

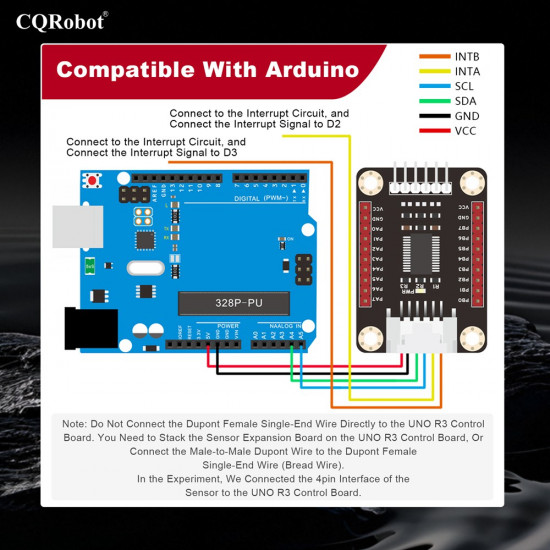

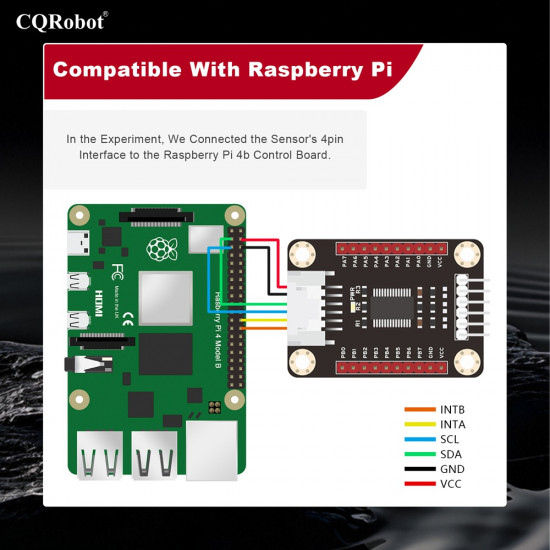

  • Line Sequence: Black-negative power supply, Red-positive power supply, Green-SDA, Blue-SDA, Yellow-INTA, Orange-INTB.

DISTRIBUTION LIST

1 * MCP23017 IO Expansion Board

1 * Interface-JST-PA SMT 6-Pin 21cm Wire
