INTRODUCTION

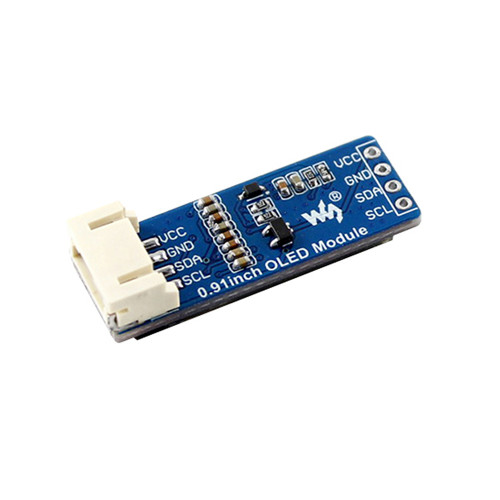

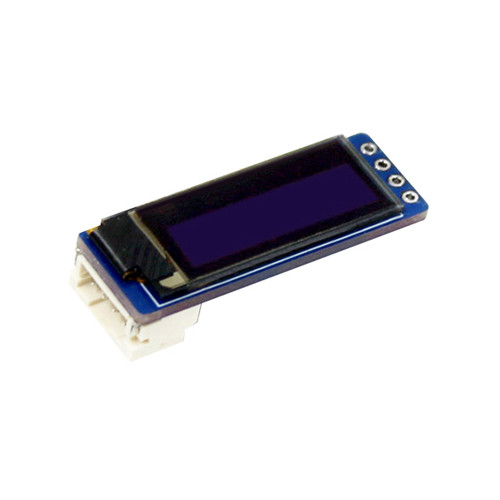

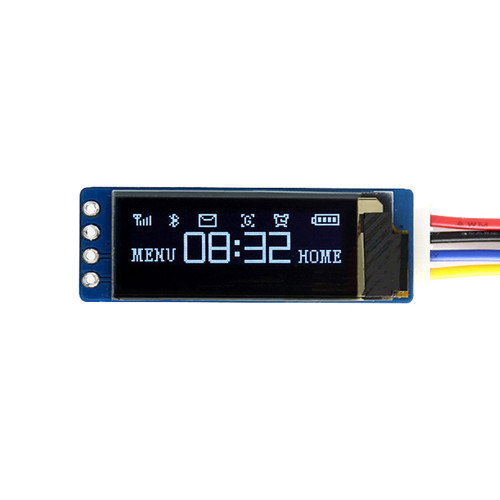

This is a general OLED display Module, 0.91inch diagonal, 128 * 32 pixels, with embedded controller, communicating via I2C interface.

FEATURES

• 0.91inch small form factor
• 128*32 high resolution
• I2C interface, requires only two signal pins
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

SPECIFICATIONS

• Driver: SSD1306
• Interface: I2C
• Display color: White
• Resolution: 128 * 32
• Viewing Angle: More Than 160 Degree Celsius
• Operating Voltage: 3.3V / 5V

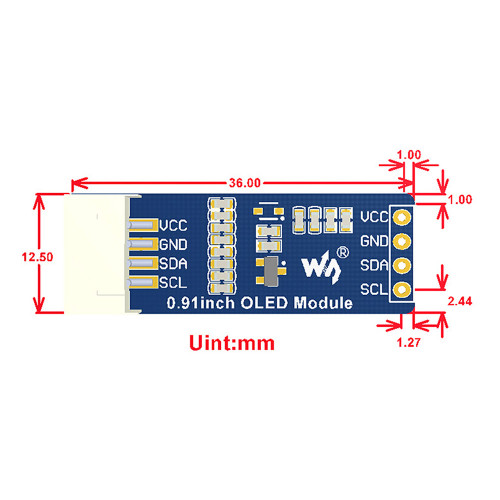

• Dimension: 36 * 12.5 (mm)

PACKAGE CONTENT

1 * 0.91inch OLED Module

1 * PH2.0 4Pin
