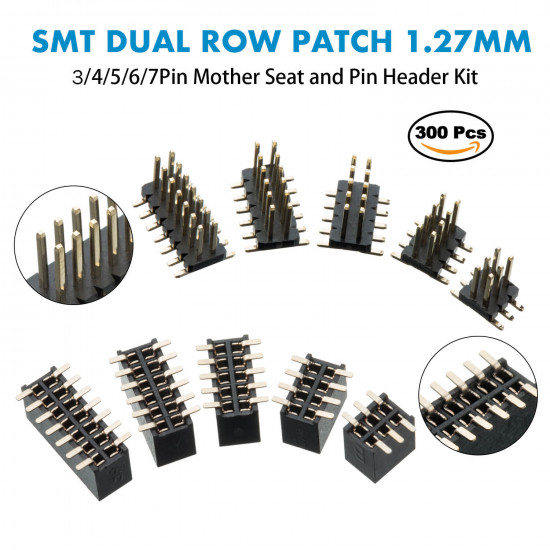

SMT Dual Row Patch 1.27mm - 3 / 4 / 5 / 6 / 7 Pin Mother Seat and Pin Header Kit

Surface Mounted Technology (SMT) is the most popular technology and process in the electronics assembly industry. Electronic circuits SMT, also known as surface mount technology. It is a circuit assembly technology, which mounted the non-pin or short lead surface mount components on the surface of the printed circuit board （Printed Circuit Board，PCB) or other substrate surface, then to solder and assemble by reflow or dip solder.

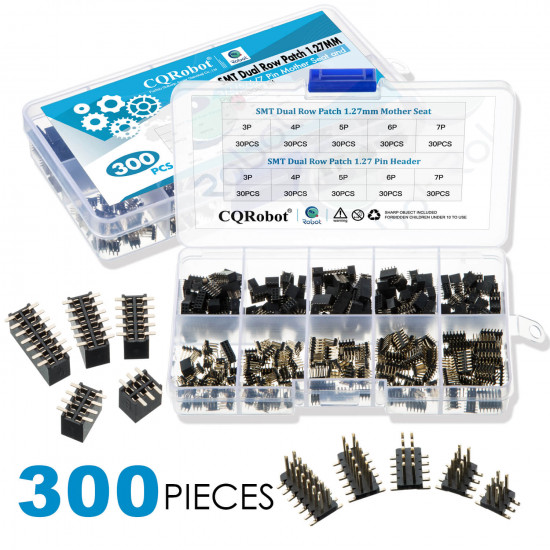

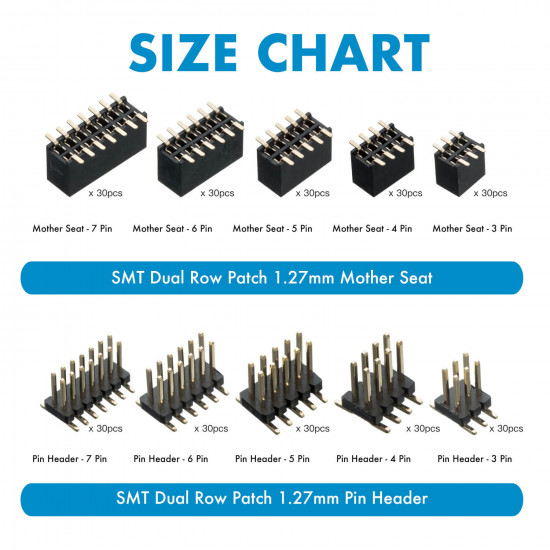

CQRobot® Carefully selected for you 1.27mm double row STM row and double STM straight needle kit, which contains 3-pin, 4-pin, 5-pin, 6-pin, 7-pin 20 each, After plating process, with good electrical conductivity and oxidation resistance, absolutely meet the needs of your different projects.

SPECIFICATION

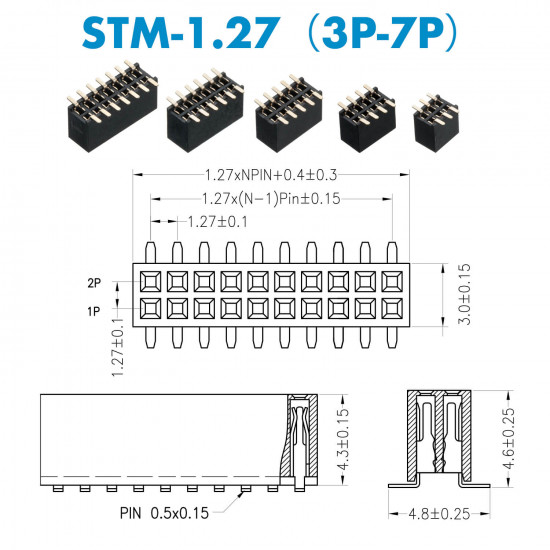

SMT Dual Row Patch 1.27mm Mother Seat

• Rated Current: 1.0AMP

• Contact Resistance: 20MΩ Max

• Withstand Voltage: 500V AC/DC

• Lnsulation Resistance: 1000MΩ Min

• Operation Temperature: -40 Degree Celsius to 105 Degree Celsius

• Contact Materual: Phosphor Brass

• Contact Plating: Au Over Ni

• lnsulator Material: Polyester(UL94V-0)

• Standard: PA6T

• Max.Processing Temp: 230 Degree Celsius for 30-60 Seconds(260 Degree Celsius for 10 Seconds)

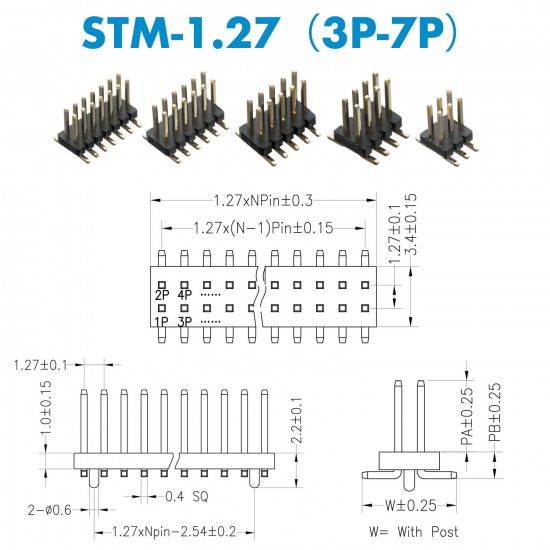

SMT Dual Row Patch 1.27mm Pin Header

• Rated Current: 1.0AMP

• Contact Resistance: 20MΩ Max

• Withstand Voltage: 500V AC/DC

• Lnsulation Resistance: 1000MΩ Min

• Operation Temperature: -40 Degree Celsius to 105 Degree Celsius

• Contact Materual: Brass

• Contact Plating: Au Over Ni

• lnsulator Material: Polyester(UL94V-0)

• Standard: PA6T

• Max.Processing Temp: 230 Degree Celsius for 30-60 Seconds(260 Degree Celsius for 10 Seconds)
