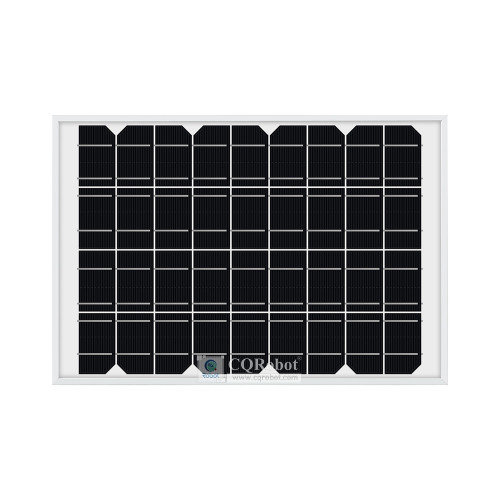

Solar Panel (18V 10W), with DC3.5-1.35 Plug

INTRODUCTION

This solar panel can be connected to a power management module or other control board that supports charging or powering a 18V solar panel. compatible with Solar Power Manager.

SPECIFICATION

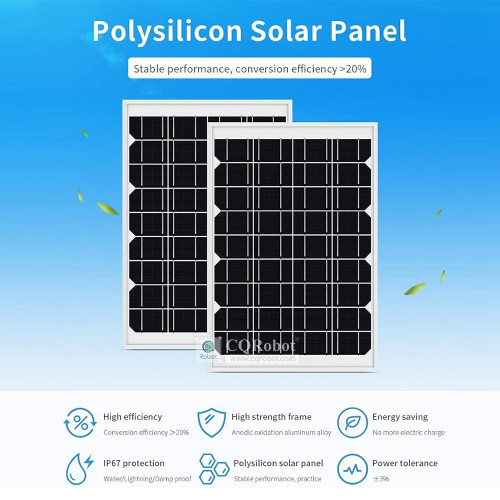

• Solar cell type: polysilicon

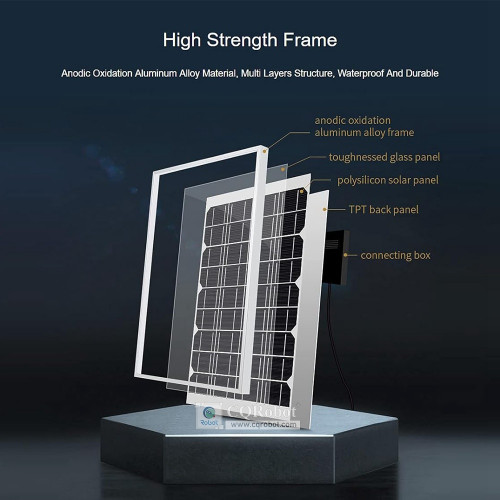

• Surface: toughened glass
• Frame material: anodic oxidation aluminum alloy
• Back board material: TPT back panel
• Power: 10 Wp (Max)
• Output power tolerance: ±3%
• Conversion efficiency: >20%
• Operating voltage: 17.6 V
• Operating current: 0.57 A
• Open circuit voltage: 21.6 V
• Short circuit current: 0.61 A
• Cell quantity: 36 (4×9)
• Standard system voltage: 1000 V (Max)
• Operating temperature: -40℃ ～ +85℃
• Pressure on panel: 30m/s(200kg/sq.m) (Max)

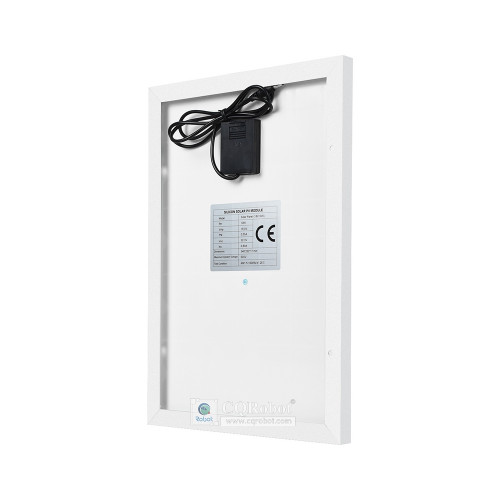

• Cable: length 90 cm, DC plug, OD 3.5mm ID 1.35mm

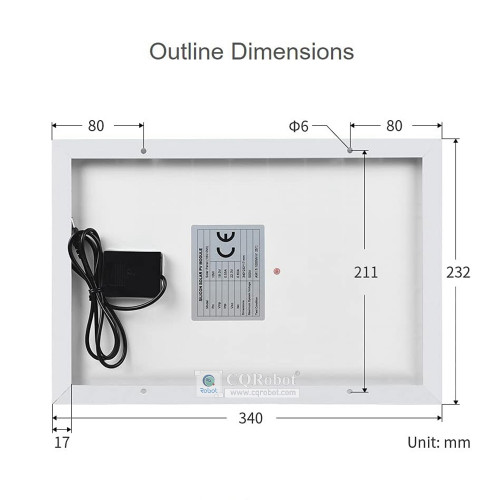

• Dimensions: 340 × 232 × 17 mm
• For use with: Solar Power Manager

Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

PACKAGE CONTENT

1 * Solar Panel (18V 10W)

Note: the Solar Power Manager is NOT included.
