1019C-1000 Capacitive Fingerprint Recognition Module Test Kit

INTRODUCTION

1019C integrates fingerprint collection, processing, storage and fingerprint matching. With the ID809 high-performance processor and semiconductor fingerprint sensor as the core, it runs the new IDfinger6.0 fingerprint algorithm that is widely praised in the industry. It is deeply optimized, fully accelerated, and the experience is beyond imagination. It can independently complete all fingerprint recognition work.

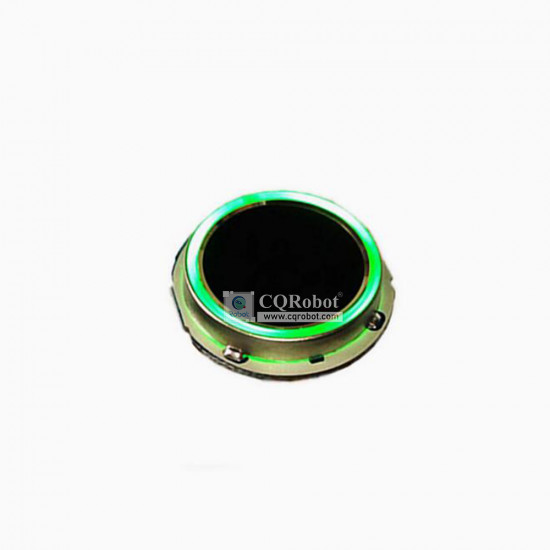

1019C adopts standard UART communication to meet all fingerprint recognition needs of customers such as fingerprint entry, image processing, template generation, fingerprint matching, etc. The appearance is exquisite, thin and integrated, with a ring-shaped cool breathing light design.

FEATURE

• High performance and low power consumption: The module CPU is produced with advanced process technology, ARM® Cortex™-M4 core, fast computing speed and low power consumption.
• Complete functions: It integrates fingerprint collection, image processing, feature extraction, fingerprint registration, fingerprint comparison, fingerprint deletion and other functions.
• Good experience: This module runs the new IDfinger6.0 fingerprint algorithm, which is deeply optimized and fully accelerated, and the experience is beyond imagination.
• High security: The fingerprint recognition speed is fast and the security is high. It supports 360-degree arbitrary angle recognition and deep self-learning functions.
• Easy to develop: It supports Windows, Android, embedded systems, standard UART communication.
• Small size: It has a simple structure and small size, and can be flexibly embedded in various products with limited volume.
• Durable: It has high electrostatic voltage resistance, strong anti-interference ability, and a sturdy appearance.

SPECIFICATION

• CPU ID809 (ARM Cortex-M4 core, main frequency up to 150MHz, SRAM: 128KB, FLASH: 1MB)
• Fingerprint collector: active capacitive fingerprint sensor (508dpi / 192*192 pixel)
• Fingerprint registration capacity: 1000
• False acceptance rate (FAR): < 0.001% (Security Level 3)
• False rejection rate (FRR): < 0.1% (Security Level 3)
• Comparison method: 1:N and 1:1 comparison
• Fingerprint template size: 496 bytes
• Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3
• Processing speed: Fingerprint feature extraction time < 0.45 seconds
• 1:N comparison time: < 0.8 seconds
• Communication interface: UART, 3.3V-TTL Level
• Baud rate: 9600, 19200, 38400, 57600, 115200 (bps)
• Baud rate factory setting: 115200bps
• Working voltage Win voltage: DC3.3V±10%
• Working current: < 40mA
• Working environment Working temperature: -10℃ - 60℃
• Relative humidity: 20%– 80%

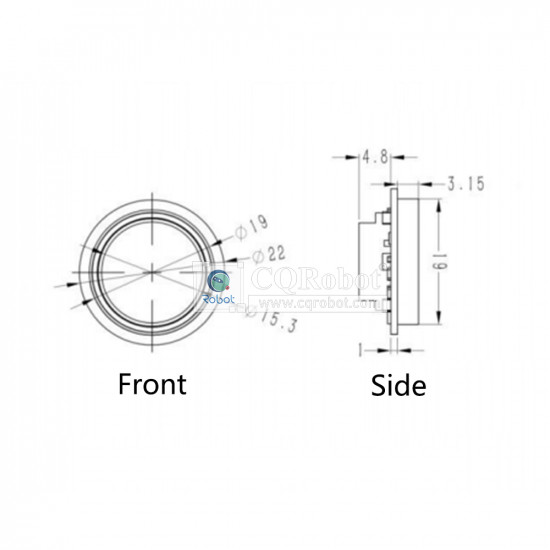

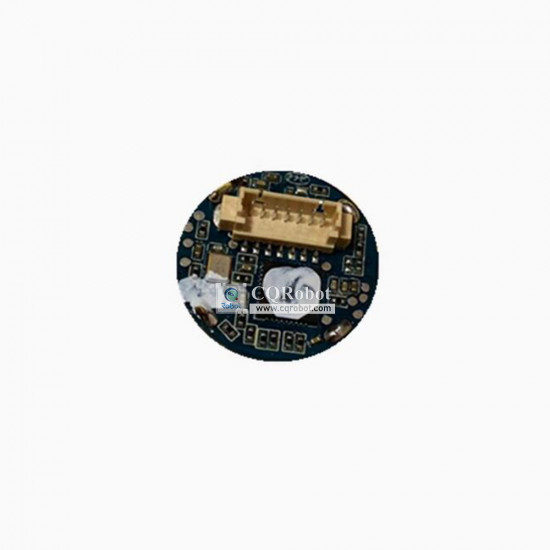

• The PCB diameter of the product is 22mm, the installation diameter is 19mm, and the height is 8.95mm

SHIPPING LIST

1 * 1019C-1000 Fingerprint Recognition Module

1 * 1.0mm - 6Pin Cable

1 * 1.0mm - 6Pin to DuPont Cable

1 * TTL Serial Port Conversion Module
