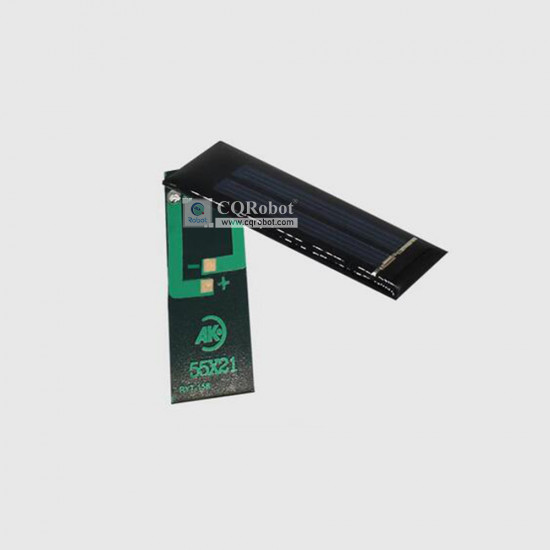

Solar Epoxy Plate Rectangle 55x21mm, 1V, 50MA, 0.05W

INTRODUCTION

Solar Epoxy Plate are a type of solar cell, but with a different packaging. They are made by laser cutting solar cells into small pieces, making the required voltage and current, and then packaging. Due to its small size, it is generally not packaged like solar photovoltaic components, but is made by covering the solar cells with epoxy resin and bonding them to the PCB circuit board. It has the characteristics of fast production speed, pressure resistance and corrosion resistance, beautiful appearance, and low cost.

SPECIFICATION

• Solar Panel Type: Polycrystalline silicon
• Rated Voltage: 1V
• Rated Current: 50mA
• Peak Power: 0.05W
• Light Intensity Measurement: 38000LUX
• Board Shape: Rectangle
• Dimensions: 55.0 x 21.0 mm (21.65 x 8.27 inch)

SHIPPING LIST

1 * Solar Epoxy Plate (55X21-1-50)
