This is an industrial grade controller designed specifically for open source electronic development and maker projects, equipped with an improved CH340 chip and Type-C interface, fully compatible with the Arduino ecosystem.

This development board adopts a high stability circuit design, supports plug and play programming and modular debugging, and simplifies the development process.

Suitable for open source hardware development, e-learning practice, and rapid implementation of small and medium-sized projects.

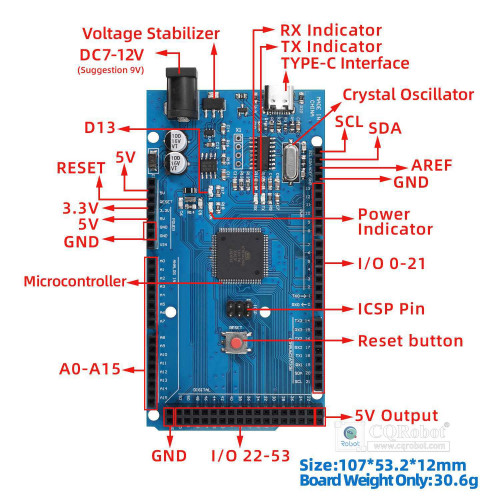

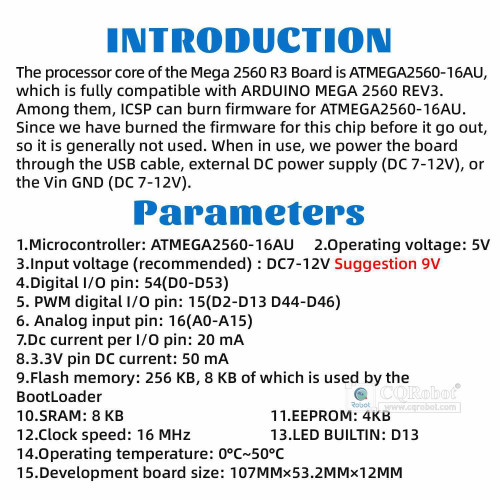

SPECIFICATION

• Microcontroller: ATMEGA2560-16AU
• Working Voltage: 5V
• Needle Length: 51mm
• Input Voltage: DC7-12V, recommended 9V
• SRAM:8 KB
• Clock Speed: 16 MHz
• EEPROM:4KB
• LED BUILTIN:D13
• Working Temperature: 0 ° C~50 ° C
• Number 1/0 pin: 54 (DO-D53)
• PWM 1/0 Pins: 15 (D2-D13 D44-D46)
• Analog Input Pins: 16 (A0-A15)
• DC Current For Each 1/0 Pin: 20 mA
• DC Current At 3.3V Pin: 50 mA
• Flash Memory: 256 KB, of which 8 KB is used by BootLoader
• Power Supply Method: USB cable power supply/black DC head external power supply (DC7-12V)/female interface Vin GND (DC7-12V) power supply

DISTRIBUTION LIST

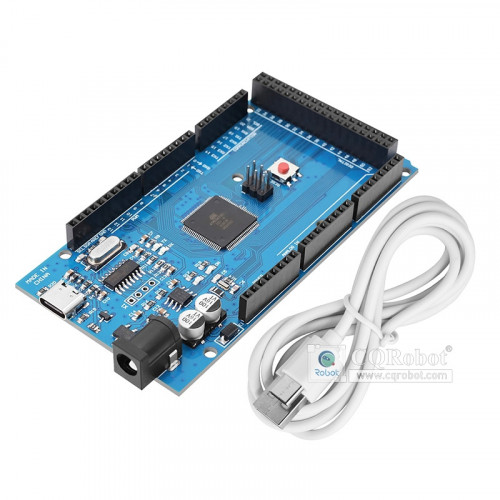

1 * Mega2560 R3 Development Control Board

1 * USB cable (1m)
