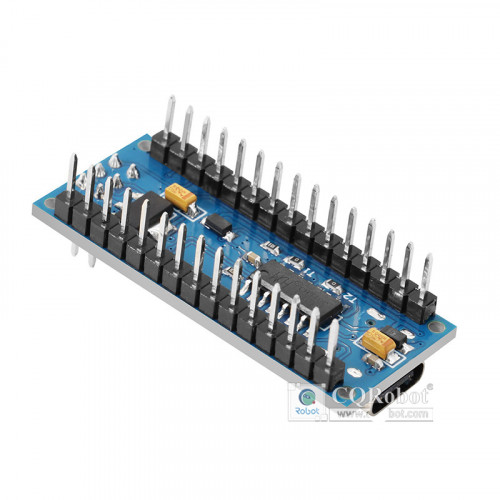

This is a microcontroller development board designed specifically for entry-level programming learning and small electronic projects, equipped with CH340 chip and ATMEGA328 microcontroller core.

This development board adopts Type-C interface and is compatible with Arduino ecosystem, providing a plug and play programming environment and high compatibility expansion capability.

Suitable for education and teaching, embedded system development, and electronic creative DIY projects.

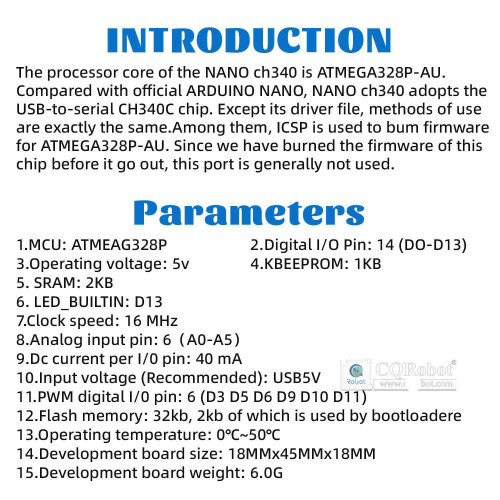

SPECIFICATION

• Interface: Type-C (power supply/programming)
• Model: Nano V3.0 Development Board

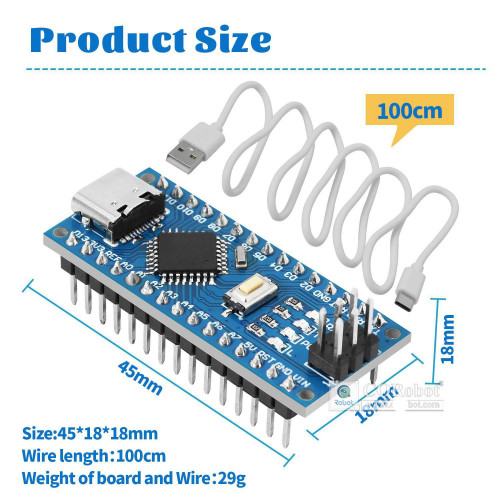

• Size: 45 * 18 * 18mm
• Microcontroller: ATMEAG328P
• SRAM：2KB
• EEPROM：1KB
• Input Voltage (recommended): USB 5V
• Clock Speed: 16 MHz

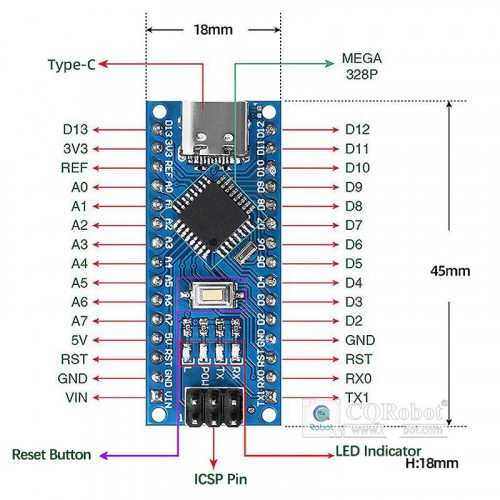

• Digital I/O Pins: 14 (D0-D13)
• Analog Input Pins: 6 (A0-A5)
• PWM Digital I/O Pins: 6 (D3, D5, D6, D9, D10, D11)
• DC Current Per I/O Pin: 40 mA
• Onboard LED Pin: D13
• Working Temperature: 0 ° C~50 ° C

DISTRIBUTION LIST

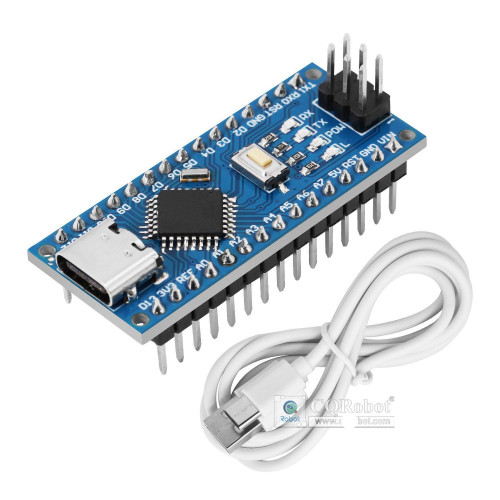

1 * Nano V3.0 development board

1 * USB cable (1m)
