Remember the candlelight from childhood? In the warm light, your shadow of high and low swayed on the wall of the house...full of childhood memories. pzsmocn recently launched a warm-color LED light strip, imitating childhood candlelight. With the power on, the room can be filled with lights of various colors. The module supports 5V power supply, uses a transistor switch with better performance, and is equipped with a warm-color flexible light strip of 4 meters and 40 lights. The LED on the light strip displays 5 colors of white, yellow, green, blue and pink.

The module comes with a JST PA SMT 3-Pin horizontal sticker and a buckle socket. Also, a JST PA to DuPont female 3-Pin single-head wire is offered to facilitate wiring. Length: 210mm, buckle attached.

SPECIFICATIONS

• Module Specifications:
• Operating Voltage: DC 2.5-5V (suggest 5V)
• Communication Interface: JST PA SMT 3-Pin interface

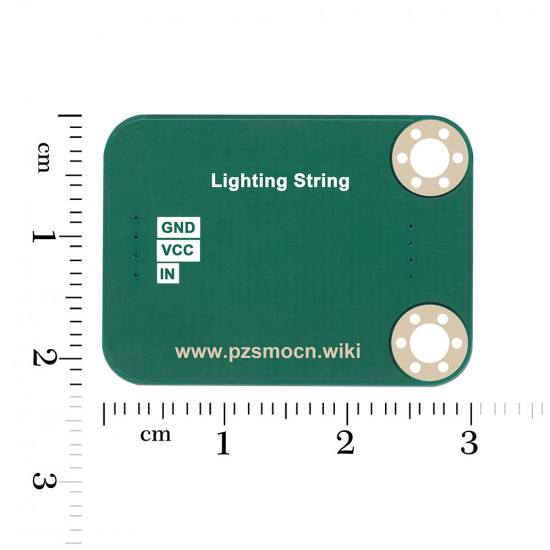

• Dimensions: 30mm * 22mm
• LED Strip: 4 meters, 40 pcs LED (white/yellow/green/blue/pink)
• Mounting Hole Size: 3mm
• Installation Hole Spacing: 15mm
• Wire Specifications:
• Withstand Voltage: less than 50V
• Withstand Current: less than 1000MA
• Length: 21CM

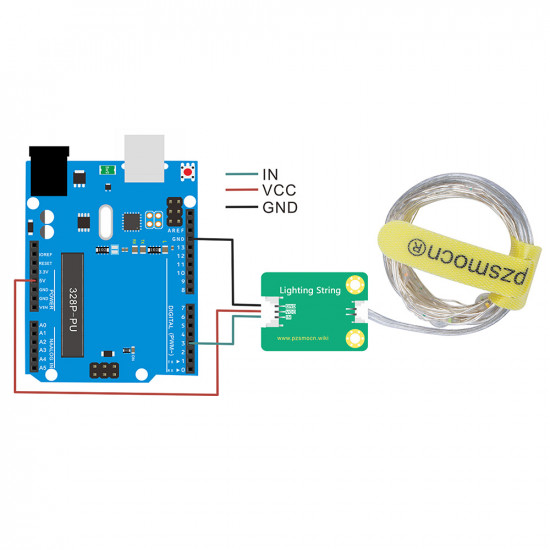

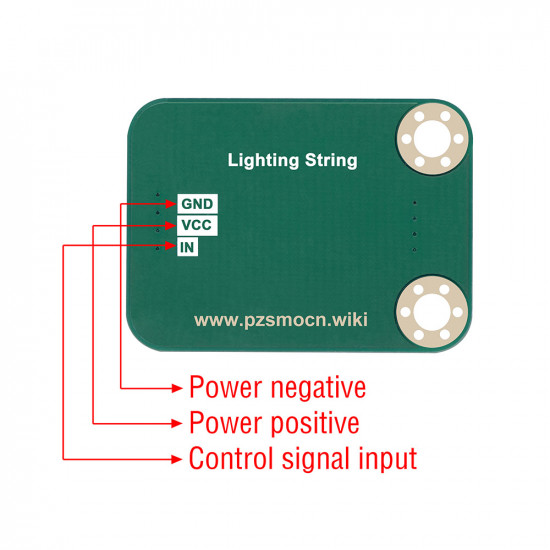

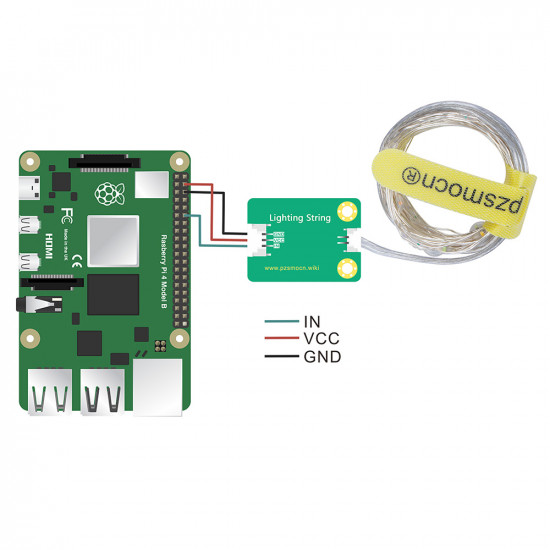

• Wire Sequence: Black-Negative power supply, Red-Positive power supply, Green-Signal input

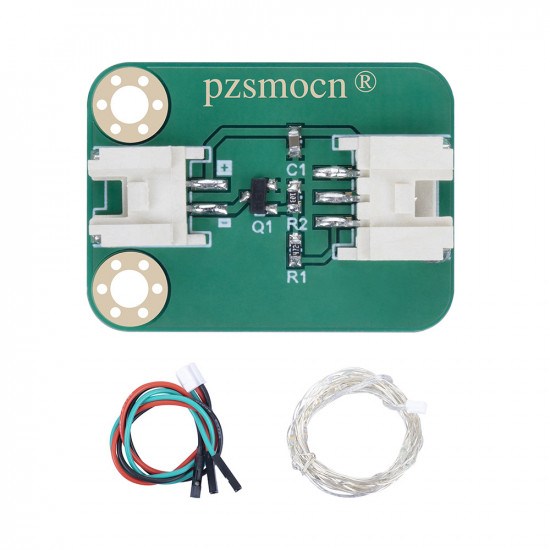

DISTRIBUTION LIST

1 * LED Color Light Strip (4 Meters)

1 * LED Strip Driver Module

1 * JST-PA to DuPont 3P Wire
