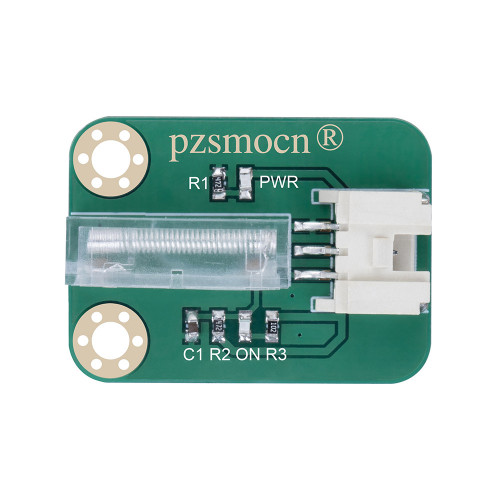

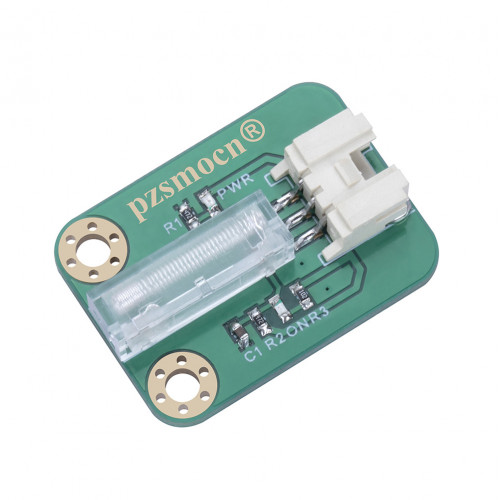

The vibration sensor is a digital sensor that is only sensitive to one-way manual swing. Adopt spring-type vibration switch, output high level when stationary, when the user shakes strongly in the specified direction once, the module outputs a low level pulse, and the onboard indicator light flashes at the same time. Thanks to the unidirectional sensitivity characteristics of the vibration switch and the corresponding filter circuit, medium-strength collisions or vibrations (such as drops, shocks) will not trigger an interrupt signal by mistake, and have strong anti-shock interference capabilities. Just shake and wave, all kinds of switch control are in your hand.

The module comes with a JST PA SMT 3-Pin horizontal sticker and a buckle socket. Also, a JST PA to DuPont female 3-Pin single-head wire is offered to facilitate wiring. Length: 210mm, buckle attached.

FEATURES

• Sensitive in one direction, strong anti-impact interference, preventing false triggering
• Compatible with 3.3V/5V controller
• Exquisite and compact, easy to install

SPECIFICATIONS

• Sensor Specifications:
• Input Voltage: 3.3V-5.0V
• Switch Life: more than 200,000 times
• Communication Interface: JST PA SMT 3-Pin interface

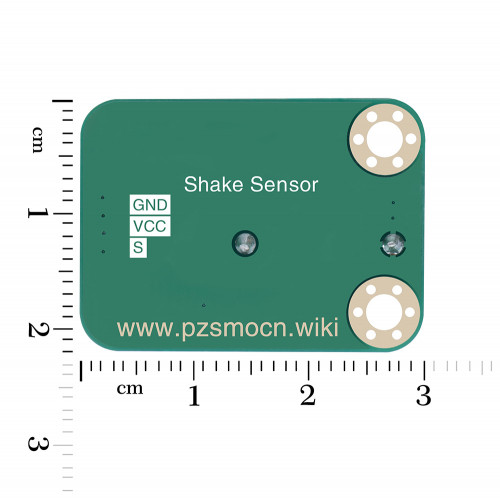

• Dimensions: 30mm * 22mm
• Mounting Hole Size: 3mm
• Installation Hole Spacing: 15mm
• Wire Specifications:
• Withstand Voltage: less than 50V
• Withstand Current: less than 1000MA
• Length: 21CM

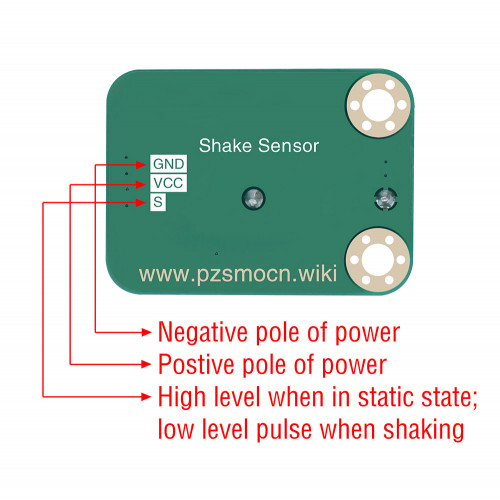

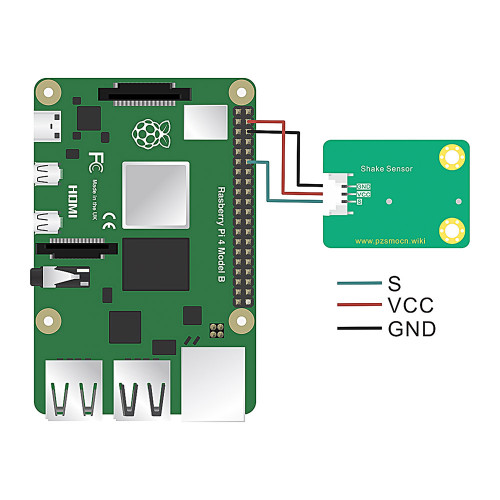

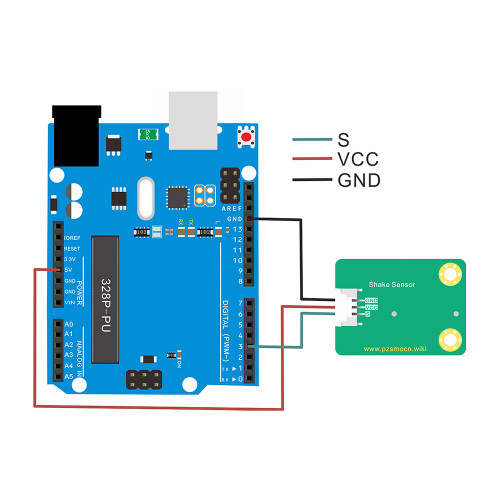

• Wire Sequence: Black-Negative power supply, Red-Positive power supply, Green-Digital signal output (Stand still - High level, Shaking - Low-level pulse)

DISTRIBUTION LIST

1 * Digital Shake Sensor

1 * JST-PA to DuPont 3P Wire
