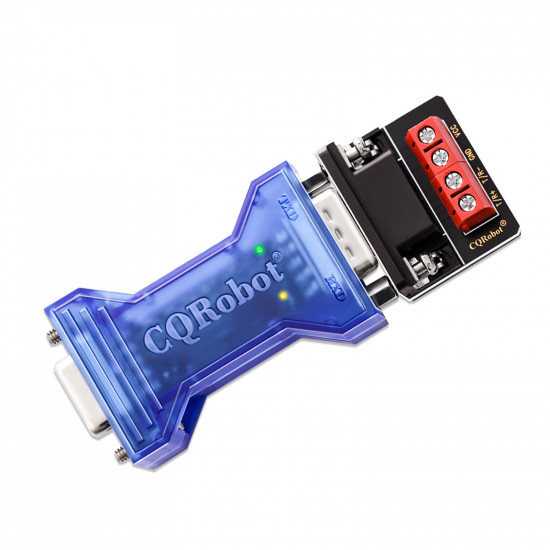

Passive RS232 to RS485 Serial Port Converter Adapter with LED Status Indicator

The Converter is compatible with RS-232 and RS-485 standards. It can convert RS-232 signals to differential RS-485 signals. The built-in high-sensitivity receiving circuit enhances weak signal amplification, while transient voltage suppression (TVS) provides fast protection.

The device requires no external power supply, as it utilizes a specialized internal "RS-232 Charge Pump" to drive the entire circuit, enabling zero-delay operation.

It features an automatic transmission conversion mechanism and an automatic data flow direction control system, which prevents I/O circuit collisions. This ensures that programs written for RS-232 mode can run seamlessly in RS-485 mode without modification, fully maintaining compatibility with existing software and hardware interfaces.

WiKi: http://www.cqrobot.wiki/index.php/RS232_to_RS485_With_LED_Status_Indicator_Serial_Port_Converter_SKU:_CQRCK801

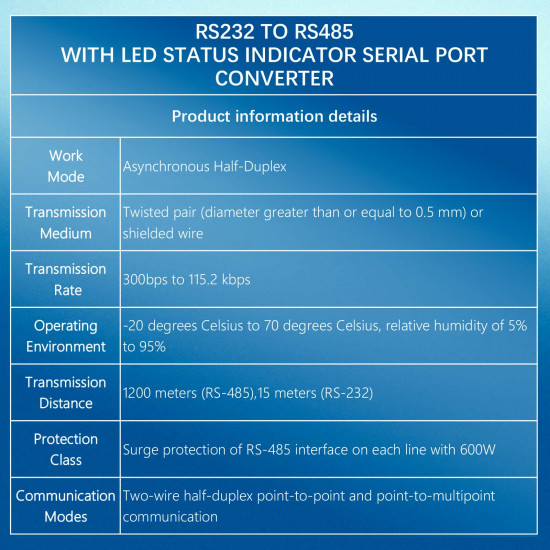

Specification

- Work Mode: Asynchronous Half-Duplex

- Transmission Medium: Twisted pair (diameter greater than or equal to 0.5 mm) or shielded wire

- Transmission Rate: 300bps to 115.2 kbps

- Operating Environment: -20 degrees Celsius to 70 degrees Celsius, relative humidity of 5% to 95%

- Transmission Distance: 1200 meters (RS-485) ,15 meters (RS-232)

- Protection Class: Surge protection of RS-485 interface on each line with 600W

- Communication Modes: Two-wire half-duplex point-to-point and point-to-multipoint communication

Product List

1 * RS232 to RS485 Converter

1 * Terminal Board

1 * Instructions for Use
