ZW3020 Capacitive Fingerprint Recognition Module Test Kit

INTRODUCTION

The ZW302x series modules have been upgraded and iterated, with three core features:

1. Adopting optimized image acquisition and preprocessing drivers, effectively shortening the time of image acquisition and preprocessing, improving image quality and response speed;

2. After power-on initialization, it automatically sends the Ox55 byte handshake mark, accurately feedbacks the module's ready status, and ensures smooth reception of host computer commands;

3. The new "AutoSearch" command function allows users to complete search operations with a single command, simplifying the interaction process and enhancing ease of use.

SPECIFICATION

• - Appearance Size: Ф21.00mm
• - Installation Size: Ф19.00mm
• - Resolution: 108*108 pixel, 508DPI
• - LED Light: RGB three-color
• - Data Interface: UART (TTL Level)
• - Communication Baud Rate: default baud rate 57600bps / 1 start bit / 1 stop bit, 3.3V TTL level

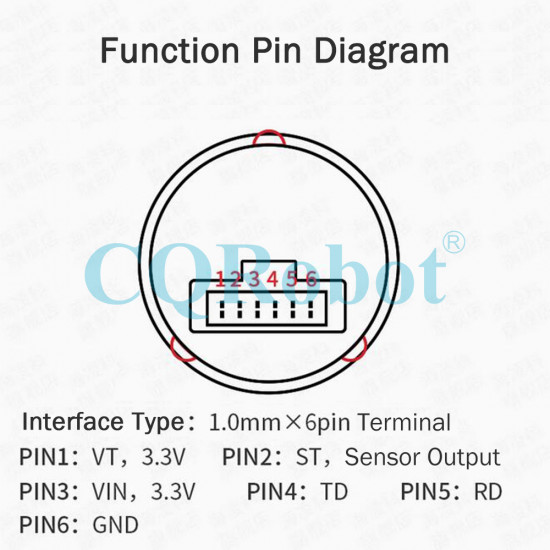

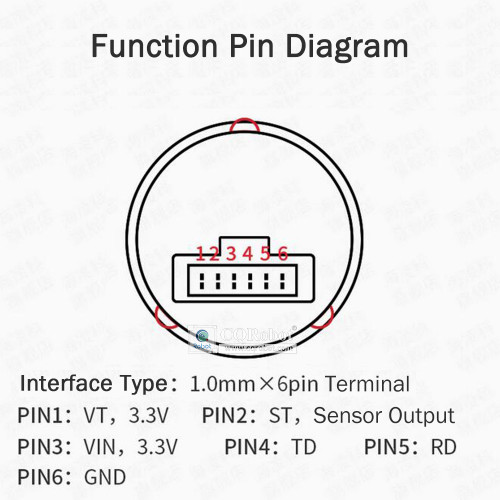

• - Interface Type: 1.0mm - 6Pin
• - Fingerprint Library Capacity: 100 pieces
• - Storage Environment: -40℃~+85℃, <85%RH
• - Working Environment: -25℃~+70℃, 40%~85%RH
• - FAR: <0.001%
• - FRR <=3%
• - Comparison method: 1: N
• - Standby Current (sensor): ~10uA@3.3V
• - Working Current (algorithm MCU): ~60mA@3.3V
• - Image Acquisition Time: ~250ms
• - Eigenvalue Generation Time: ~220ms
• - Comparison Time: ~150ms
• - Power-On Start: ~100ms
• - ESD Protection Level: Non-contact discharge ~15KV / Contact discharge ~8KV

SHIPPING LIST

1 * ZW3020 Fingerprint Recognition Module

1 * 1.0mm - 6Pin to DuPont Cable

1 * CH340 Serial Port Test Board
