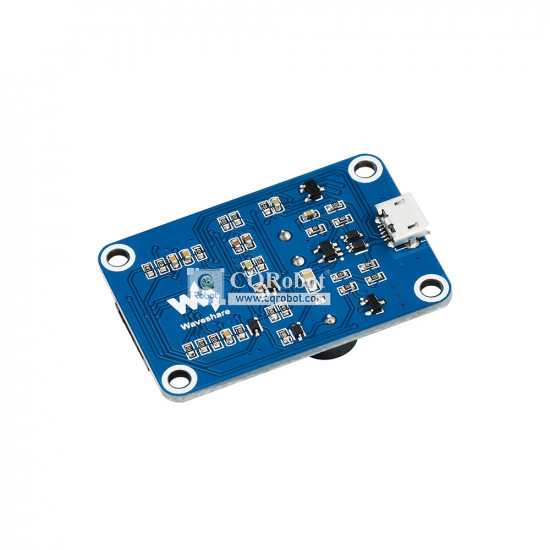

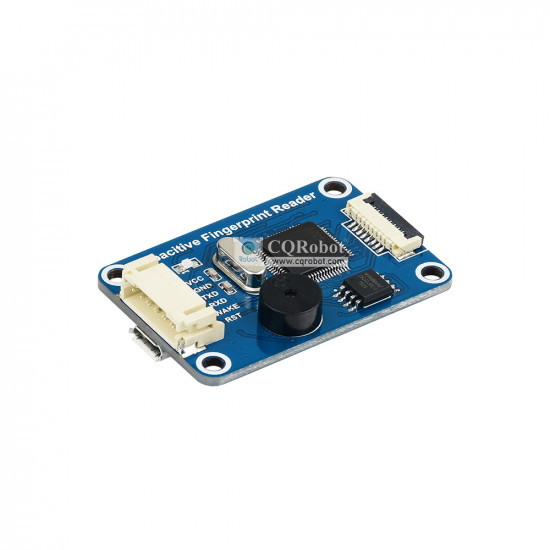

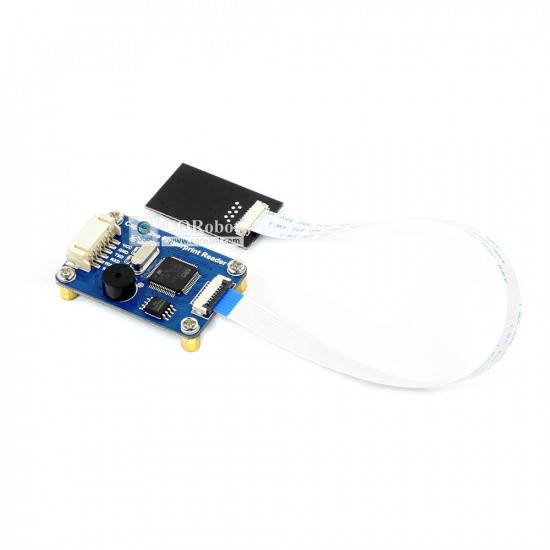

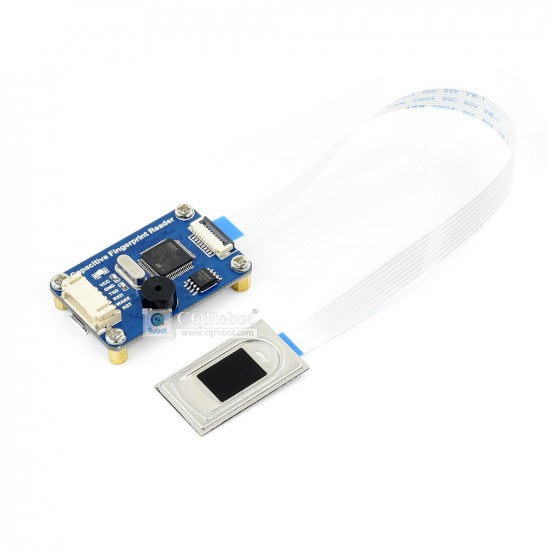

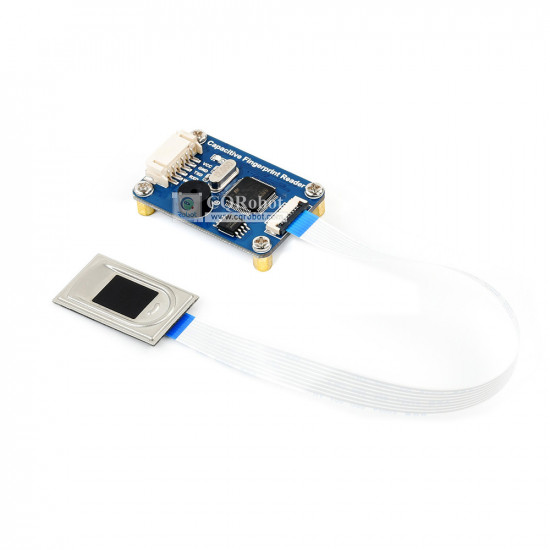

Rectangle-Capacitive Fingerprint Reader

INTRODUCTION

The Capacitive Fingerprint Reader is a standard fingerprinting module designed for secondary development, allows fast and stable fingerprint verification.

Based on a high-speed digital processor STM32F105R8, combined with high-security commercial fingerprinting algorithm, and advanced semiconductor sensor, the Capacitive Fingerprint Reader becomes a simple but smart integration module, provides functionalities like fingerprint enrolling, image processing, feature finding, template generating and storing, fingerprint matching and searching, etc.

FEATURE

• Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
• Commercial fingerprinting algorithm, stable performance, fast verification
• Sensitive detection, just touch the collecting window lightly, without pressing
• Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
• Dual communication, UART or USB
• Processor will enter sleep and wake up when detecting, achieves low power consumption

APPLICATIONS

• Fingerprint lock
• Fingerprint safe deposit box
• Access control system
• Clock in and out

SPECIFICATION

• Processor (CPU): STM32F105

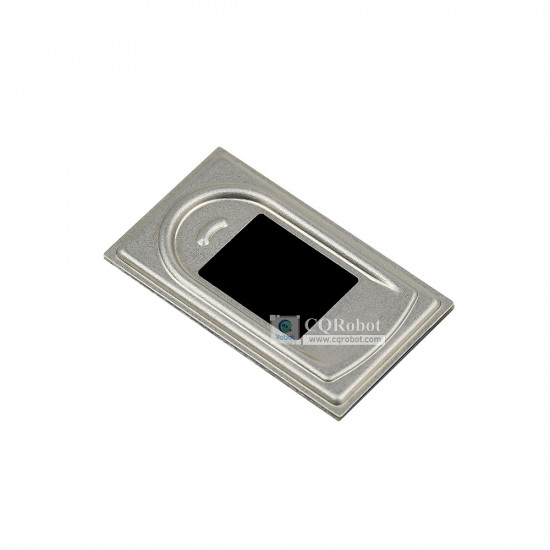

• Sensor: Semiconductor capacitive
• Module dimension (mm): 45 x 30
• Sensor dimension (mm): 33.4 x 20.4
• Image: DPI 508
• Image resolution: 192 x 192
• Sensing area (mm): 9.6 x 12.8
• Fingerprint capacity: 3000
• Security level: 0-9 low to high security, 5 by default
• Matching time: 1s
• False acceptance rate: 0.0001%
• False rejection rate: 0.01%
• Dynamic current: <60mA
• Operating voltage: 3.3V-5V
• Communication: UART or USB
• Anti-electrostatic: contact discharge: ± 8KV / aerial discharge: ± 15KV

PACKAGE CONTENT

1 * Rectangle-Capacitive Fingerprint Reader

1 * 6-Pin Wire
