Contact Multi-point Photoelectric Liquid Level Sensor

The new contact multi-point liquid level sensor is a contact liquid level measurement and control device designed using optical principles. The sensor can detect 4 liquid levels with a detection accuracy of up to ±1mm. The sensor has no mechanical parts and does not require additional debugging. It has high sensitivity, low power consumption, corrosion resistance, high pressure resistance, high temperature resistance, and stable chemical properties.

Note: Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

WiKi: http://www.cqrobot.wiki/index.php/Contact_Multi-point_Photoelectric_Liquid_Level_Sensor_SKU:_CQRSENYW003

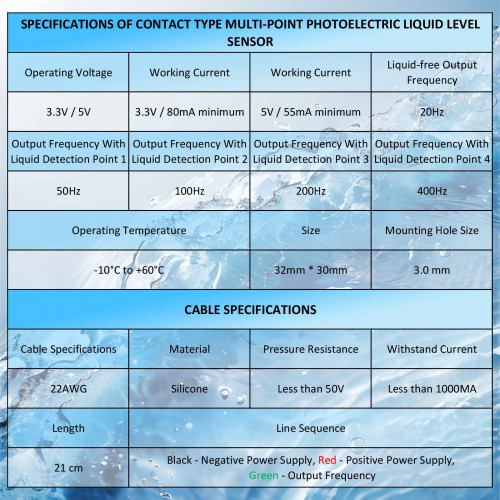

SPECIFICATION

Contact Multi-point Photoelectric Liquid Level Sensor

• Model: CQRSENYW003
• Working Voltage: 3.3V / 5V
• Working Current: 3.3V / minimum 80mA
• Working Current: 5V / minimum 55mA

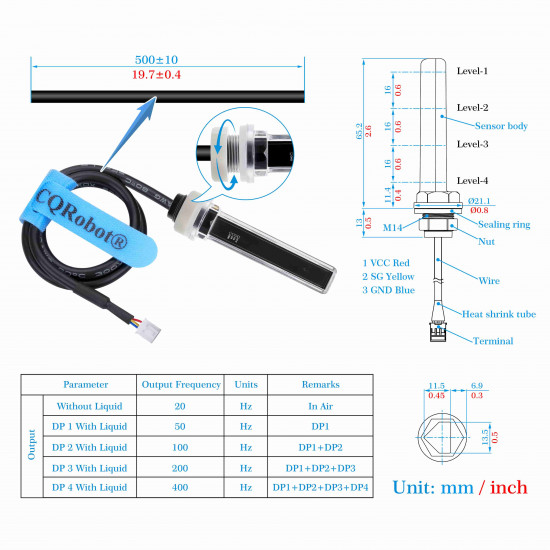

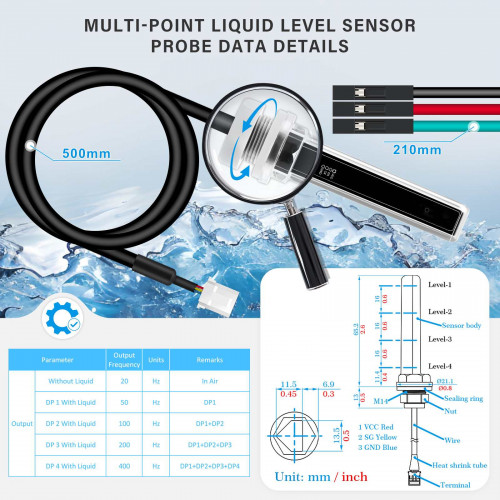

• Output Frequency Without Liquid: 20Hz
• Output Frequency Detection Point 1 With Liquid: 50Hz
• Output Frequency Detection Point 2 With Liquid: 100Hz
• Output Frequency Detection Point 3 With Liquid: 200Hz
• Output Frequency Detection Point 4 With Liquid: 400Hz
• Working Temperature: -10 Degree Celsius to +60 Degree Celsius

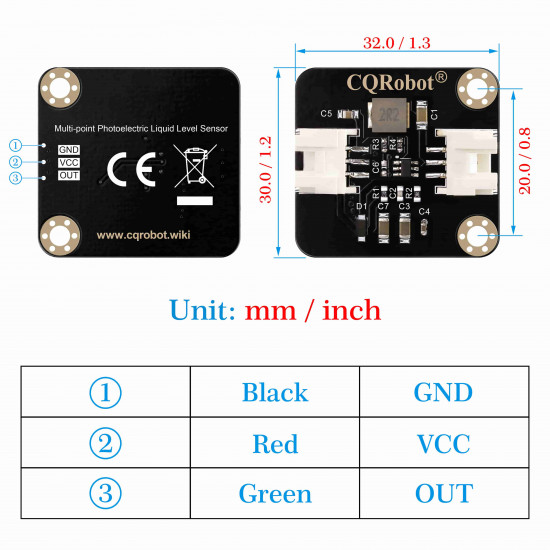

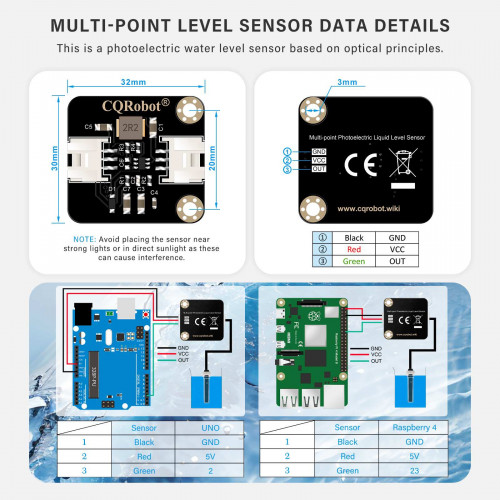

• Dimensions: 32 mm * 30 mm
• Mounting Hole Size: 3.0 mm

Cable Specifications

• Cable Specifications: 22AWG
• Material: Silicone
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA
• Length: 21cm

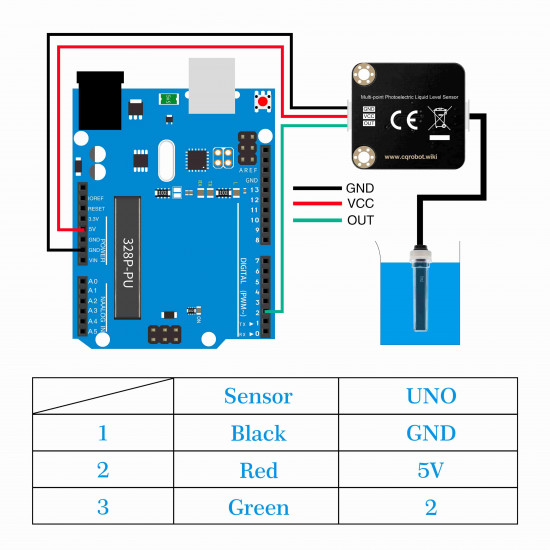

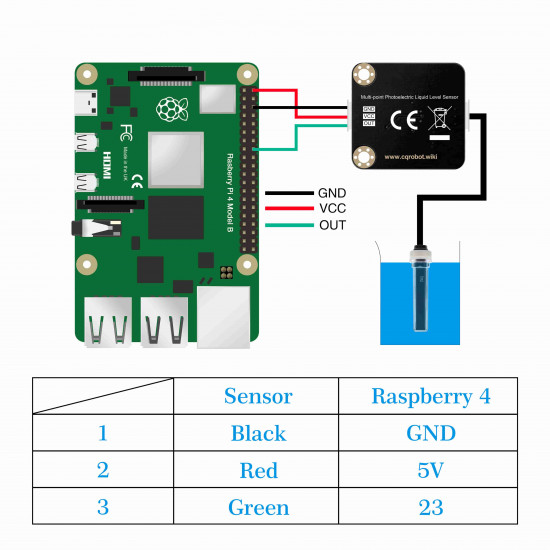

• Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Output Frequency

SHIPPING LIST

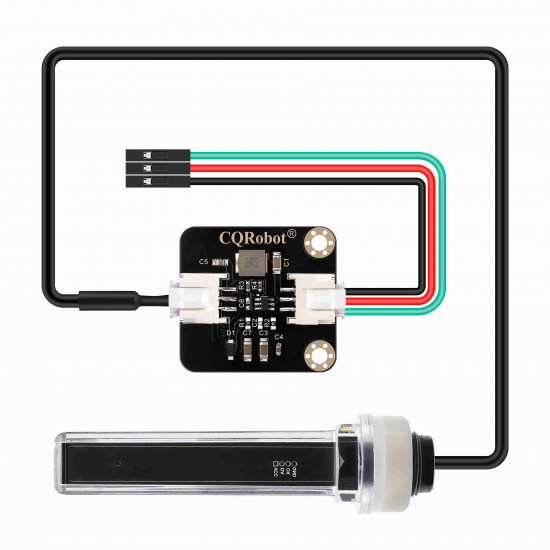

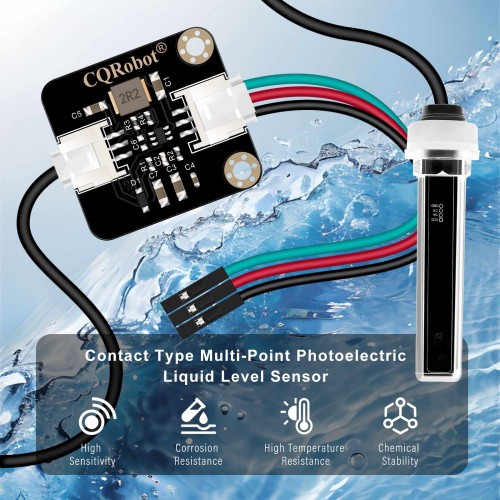

1 * Multi-point Liquid Level Sensor Probe

1 * Liquid Level Sensor Adapter

1 * JST 3-Pin Interface Cable
